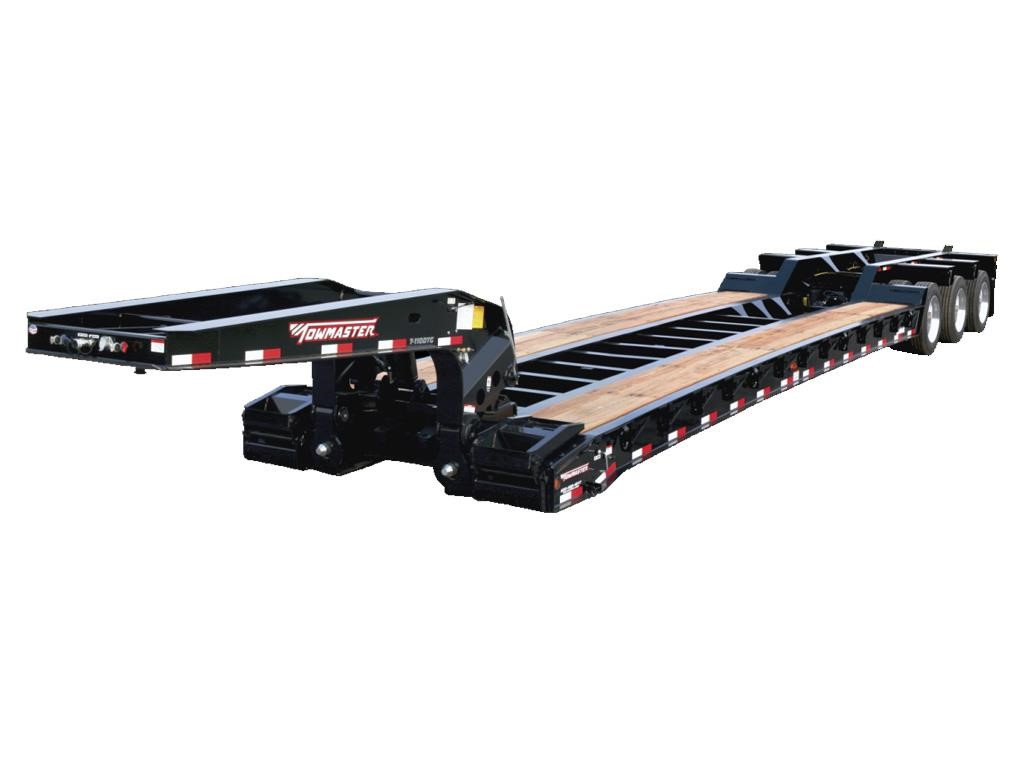

TOWMASTER T-100 — DETACHABLE GOOSENECK (FIFTH-WHEEL)
The Towmaster® detachable gooseneck trailers are a state-of-the-art design with modular frame construction. This detachable gooseneck trailer offers more convenient features to make loading or unloading quick and easy. The fit and finish is unmatched as the entire trailer is pre-painted before assembly and decking for a professional, clean look. The Towmaster detachable is completely designed and built at our factory, so you can be sure you are getting a genuine quality Towmaster Trailer.
STANDARD EQUIPMENT
• S.A.E. king pin set at 16”
• Weather resistant sealed modular wiring
• Grommet mounted LED lights
• Registration holder
• Rust inhibiting primer
• Durable, rust inhibiting top coat
• Die-cut UV resistant vinyl decals
• D.O.T. approved conspicuity tape
• Mud flaps
• Trailer color: Equipment black
OPTIONAL EQUIPMENT
• Positive Air-Lock gooseneck
• Longer swing-clearance lengths
• Gooseneck fenders
• Self-contained hydraulic unit
• Dual hydraulic system
• Tapered deck
• Additional deck length
• Wide deck
• Bucket plate
• Several ramp options
• Several wheel options
• Booster and Flip-Axle options
• Suspension and brake options
• Color options: Construction Yellow, Equipment Red, Blue, Charcoal
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.
- Gooseneck - Swing Clearance : 84" | 2134 mm
- Main Deck / Rear Trunnion - Swing-out Outriggers: Standard
- Gooseneck - Greaseable Pivot Points: Standard
- Suspension / Tires - Wheel Bolt Pattern: 10-bolt
- Main Deck / Rear Trunnion - Outside Rails - T1 Flange : 14" Fabricated
- Suspension / Tires - Axle Spread : 49" | 1245 mm
- Suspension / Tires - Air Suspension: Standard
- Capacity / Dimensions - Capacity Rating : 100,000 lbs | 45,359 kg
- Main Deck / Rear Trunnion - Trunnion Open Boom Well: Standard
- Suspension / Tires - Tire Size - all Load Range Rating H: 255/70R x 22.5
- Main Deck / Rear Trunnion - Outside Oak Deck Full 2”: Standard
- Main Deck / Rear Trunnion - HD Removable Swing-out Outriggers: Optional
- Capacity / Dimensions - Approx. Weight : 18,300 lbs | 8301 kg
- Suspension / Tires - Air Brakes: Standard
- Gooseneck - Fifth-Wheel Deck Lock: Standard
- Capacity / Dimensions - Overall Length : 48" | 14,630 mm
- Main Deck / Rear Trunnion - Diamond Cut-outs: Optional
- Main Deck / Rear Trunnion - Tie Downs: Forged D-rings
- Capacity / Dimensions - Deck Height - Fully Loaded : 24" | 610 mm
- Gooseneck - Twin Five-Position Load Block: Standard
- Main Deck / Rear Trunnion - Self-Aligning Locking Fifth-Wheel : Standard
- Capacity / Dimensions - Deck Length : 24' | 7315 mm
- Suspension / Tires - Brake Size : 16.5" x 7" | 419 x 178 mm
- Main Deck / Rear Trunnion - Fixed Approach: Optional
- Suspension / Tires - Meritor Axles - number of axles: Standard | 3
- Main Deck / Rear Trunnion - Crossmembers : 10" Deep x 4" Flange
- Suspension / Tires - Wheels Hub Piloted: Standard
- Main Deck / Rear Trunnion - Supporting Bolsters Between Wheels: Standard
- Gooseneck - Wet Line Hydraulic System: Standard
- Suspension / Tires - Oil Bath Hubs: Standard
- Main Deck / Rear Trunnion - Number of Tie-Downs : 12 Total | 6 Side
- Suspension / Tires - 22.5x8.25 Budd-type Wheels: Standard
- Suspension / Tires - Axle Capacity - Each: 25,000 lbs | 11,340 kg
- Main Deck / Rear Trunnion - Stinger Reinforcement: Optional
- Main Deck / Rear Trunnion - Main Beam - T1 Flange : 16" Fabricated
- Gooseneck - Air-Pin Deck Lock: Optional
- Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
- Main Deck / Rear Trunnion - Approach Bolster: Standard
- Suspension / Tires - Poly Mud Flaps: Standard
- Capacity / Dimensions - Capacity Rating in 16ft : 100,000 lbs | 45,359 kg
- Suspension / Tires - Forged Alloy Spindles: Standard
- Main Deck / Rear Trunnion - Flip Axle Mount Brackets: Optional
- Main Deck / Rear Trunnion - Front Flip-up Ramps: Standard
- Gooseneck - Length : 10'10" | 3302 mm
