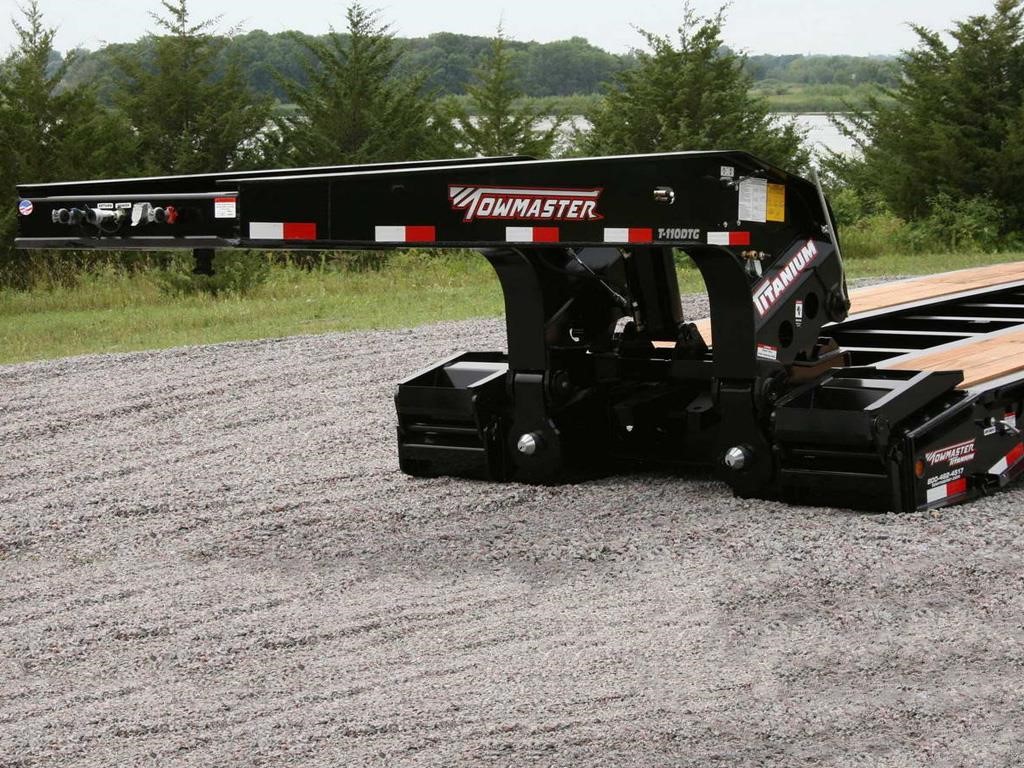

TOWMASTER T-110DTG — DETACHABLE GOOSENECK (FIFTH-WHEEL)
The Towmaster® detachable gooseneck trailers are a state-of-the-art design with modular frame construction. This detachable gooseneck trailer offers more convenient features to make loading or unloading quick and easy. The fit and finish is unmatched as the entire trailer is pre-painted before assembly and decking for a professional, clean look. The Towmaster detachable is completely designed and built at our factory, so you can be sure you are getting a genuine quality Towmaster Trailer.
STANDARD EQUIPMENT
• S.A.E. king pin set at 16”
• Weather resistant sealed modular wiring
• Grommet mounted LED lights
• Registration holder
• Rust inhibiting primer
• Durable, rust inhibiting top coat
• Die-cut UV resistant vinyl decals
• D.O.T. approved conspicuity tape
• Mud flaps
• Trailer color: Equipment black
OPTIONAL EQUIPMENT
• Positive Air-Lock gooseneck
• Longer swing-clearance lengths
• Gooseneck fenders
• Self-contained hydraulic unit
• Dual hydraulic system
• Tapered deck
• Additional deck length
• Wide deck
• Bucket plate
• Several ramp options
• Several wheel options
• Booster and Flip-Axle options
• Suspension and brake options
• Color options: Construction Yellow, Equipment Red, Blue, Charcoal
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.
- Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
- Suspension / Tires - 22.5x8.25 Budd-type Wheels: Standard
- Main Deck / Rear Trunnion - Tie Downs: Forged D-rings
- Main Deck / Rear Trunnion - Stinger Reinforcement: Optional
- Suspension / Tires - Axle Capacity - Each: 25,000 lbs | 11,340 kg
- Gooseneck - Length : 11'10" | 3607 mm
- Suspension / Tires - Axle Spread : 55" | 1397 mm
- Capacity / Dimensions - Deck Height - Fully Loaded : 24" | 610 mm
- Main Deck / Rear Trunnion - Outside Rails - T1 Flange : 14" Fabricated
- Capacity / Dimensions - Capacity Rating in 16ft : 110,000 lbs | 49,895 kg
- Main Deck / Rear Trunnion - Fixed Approach: Optional
- Main Deck / Rear Trunnion - Approach Bolster: Standard
- Suspension / Tires - Forged Alloy Spindles: Standard
- Gooseneck - Greaseable Pivot Points: Standard
- Main Deck / Rear Trunnion - Crossmembers : 10" Deep x 4" Flange
- Gooseneck - Air-Pin Deck Lock: Optional
- Gooseneck - Twin Five-Position Load Block: Standard
- Capacity / Dimensions - Capacity Rating : 110,000 lbs | 49,895 kg
- Main Deck / Rear Trunnion - Supporting Bolsters Between Wheels: Standard
- Main Deck / Rear Trunnion - Number of Tie-Downs : 12 Total | 6 Side
- Suspension / Tires - Brake Size : 16.5" x 7" | 419 x 178 mm
- Capacity / Dimensions - Deck Length : 24' | 7315 mm
- Gooseneck - Wet Line Hydraulic System: Standard
- Main Deck / Rear Trunnion - Main Beam - T1 Flange : 16" Fabricated
- Suspension / Tires - Tire Size - all Load Range Rating H: 255/70R x 22.5
- Gooseneck - Fifth-Wheel Deck Lock: Standard
- Main Deck / Rear Trunnion - Front Flip-up Ramps: Standard
- Main Deck / Rear Trunnion - Flip Axle Mount Brackets: Standard
- Suspension / Tires - Air Brakes: Standard
- Suspension / Tires - Oil Bath Hubs: Standard
- Main Deck / Rear Trunnion - Outside Oak Deck Full 2”: Standard
- Main Deck / Rear Trunnion - Trunnion Open Boom Well: Standard
- Main Deck / Rear Trunnion - Diamond Cut-outs: Optional
- Capacity / Dimensions - Approx. Weight : 18,700 lbs | 8482 kg
- Main Deck / Rear Trunnion - Swing-out Outriggers: Standard
- Suspension / Tires - Poly Mud Flaps: Standard
- Capacity / Dimensions - Overall Length : 49'10" | 15,189 mm
- Suspension / Tires - Air Suspension: Standard
- Gooseneck - Swing Clearance : 96" | 2438 mm
- Suspension / Tires - Wheels Hub Piloted: Standard
- Suspension / Tires - Meritor Axles - number of axles: Standard | 3
- Suspension / Tires - Wheel Bolt Pattern: 10-bolt
- Main Deck / Rear Trunnion - Self-Aligning Locking Fifth-Wheel : Standard
- Main Deck / Rear Trunnion - HD Removable Swing-out Outriggers: Optional
