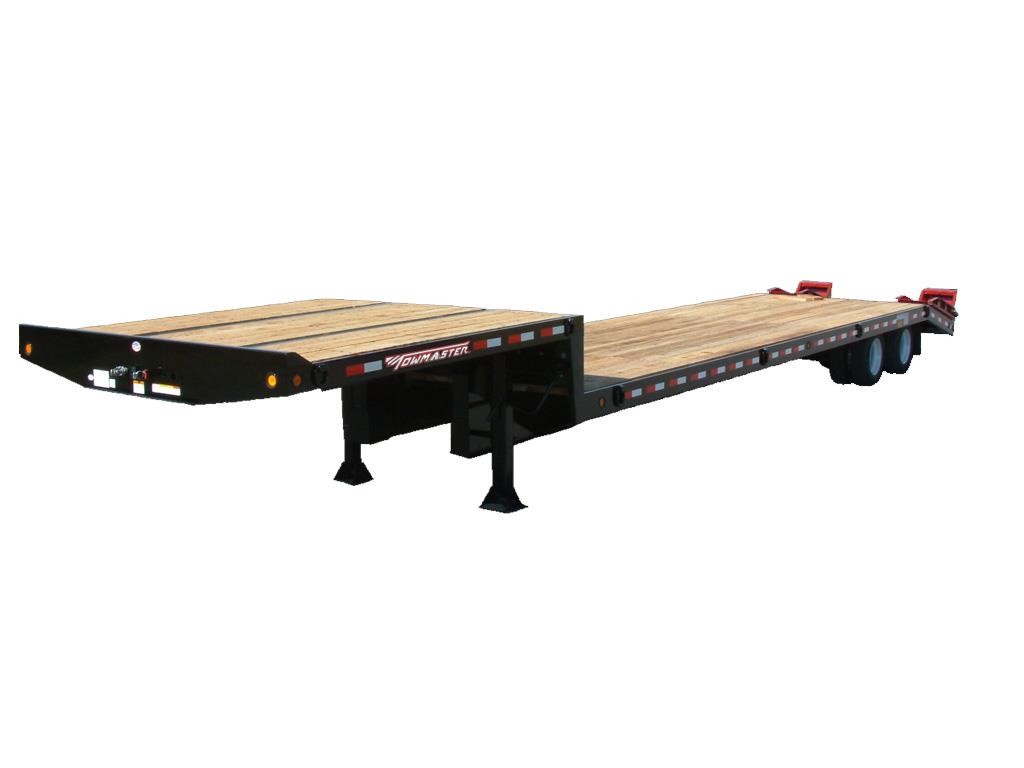

TOWMASTER T-50RG — RIGID GOOSENECK TRAILER



The Towmaster® T-50RG Rigid Gooseneck trailer is ready to haul your heavy equipment behind your fifth-wheel tractor. It features dual axles, two-way spring-assist ramps, Hutchens suspension and sealed wiring. A 10-foot top deck can haul a skid-loader or other smaller equipment (optional loading ramps required).



STANDARD EQUIPMENT

• S.A.E. king pin

• 7-pole round electrical plug

• Weather resistant sealed modular wiring

• Grommet mounted LED lights

• Registration holder

• Rust inhibiting primer

• Durable, rust inhibiting top coat

• Die-cut UV resistant vinyl decals

• D.O.T. approved conspicuity tape

• Mud flaps

• Adjustable ramp width spacing

• Trailer color: Equipment black

• Ramp color: Equipment Red



OPTIONAL EQUIPMENT

• Sloped gooseneck

• Additional deck length

• 12K electric winch

• Additional tie-downs

• Rub rail with stake pockets

• Spare tire and wheel mount

• Spare tire and wheel

• Double-break beavertail

• Several ramp options

• Color options: Construction Yellow, Equipment Red, Blue, Charcoal

• Galvanizing



Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.

  • Capacity / Dimensions - Deck Length : 24' | 7315 mm
  • Gooseneck - Truck Height : 49" | 1245 mm
  • Frame / Ramps - Beam Crossmembers: N/A
  • Suspension / Tires - No. of Axles: 2
  • Frame / Ramps - Forged D-Ring Tie Downs : 12 Total | 6 Side
  • Gooseneck - Swing Clearance : 82.5" | 2096 mm
  • Frame / Ramps - Beavertail (angle-degrees): 5' | 1524 mm (14)
  • Frame / Ramps - Main Beam - 25’+ : Mfg. Cambered
  • Suspension / Tires - Wheel Bolt Pattern: 8-bolt
  • Suspension / Tires - Hutchens Spring Suspension: Standard
  • Capacity / Dimensions - Approx. Weight : 11,500 lbs | 5216 kg
  • Suspension / Tires - Hub Piloted Budd-type Wheels : 17.5" x 6.75" | 445 x 171 mm
  • Suspension / Tires - Tires / Load Range Rating: 215/75R17.5 |H
  • Gooseneck - (2) Bolt-on Two-Speed Parking Jacks: 25K
  • Frame / Ramps - Deck Crossmembers: 3" Jr I-beam
  • Frame / Ramps - Main Beam - up to 24’ : W16 x 26, Gr. 50
  • Frame / Ramps - Ramps : 5' x 21" | 1524 x 533 mm
  • Capacity / Dimensions - GVWR : 61,500 lbs | 27,896 kg
  • Capacity / Dimensions - Overall Length : 39'9" | 12,116 mm
  • Capacity / Dimensions - Deck Height - Loaded: 33" | 838 mm
  • Frame / Ramps - Channel Side Rails : 8" | 203 mm
  • Capacity / Dimensions - Capacity Rating : 50,000 lbs | 22,680 kg
  • Gooseneck - Top Deck Length : 10' | 3048 mm
  • Suspension / Tires - Axle Capacity - Each: 22,500 lbs | 10,206 kg
  • Suspension / Tires - Hubs: Oil Bath
  • Frame / Ramps - Deck Material : 2” nom. White Oak
  • Frame / Ramps - Two-Way Spring Assist: Standard
  • Suspension / Tires - Axle Spread : 49" | 1245 mm
  • Suspension / Tires - Air Brakes - Full ABS Modulated, Park Brake All Axles : Standard
  • Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
  • Suspension / Tires - Brake Size : 12.25" x 7.5" | 311 x 191 mm
  • Frame / Ramps - Wood Protectors: Standard
