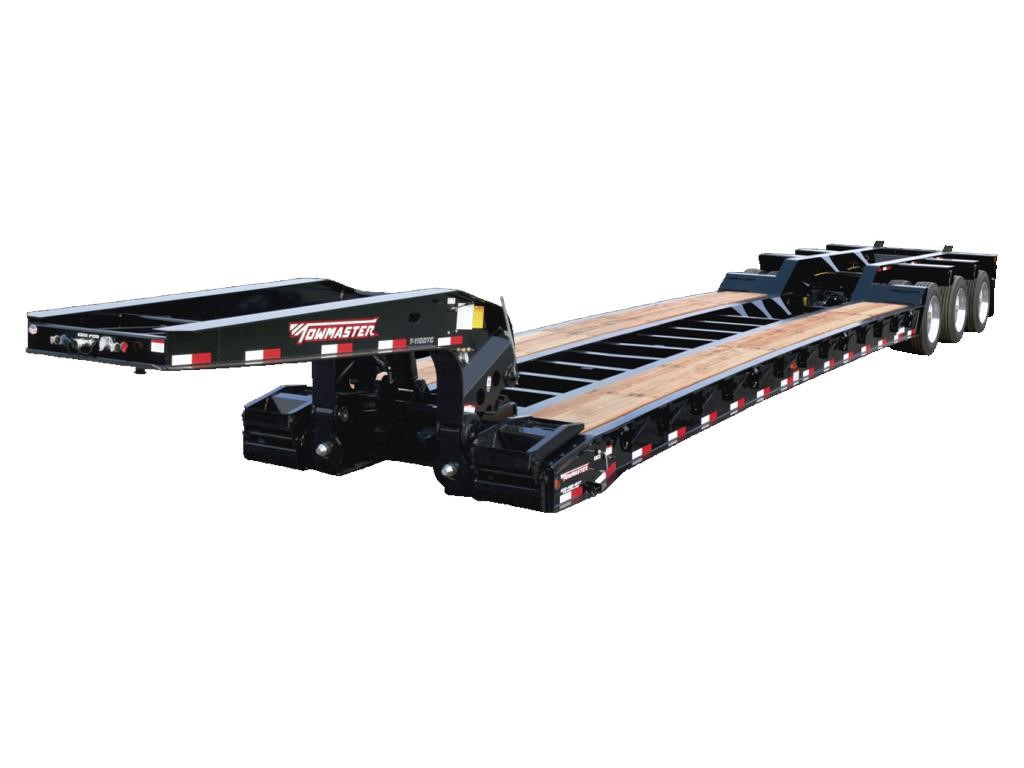

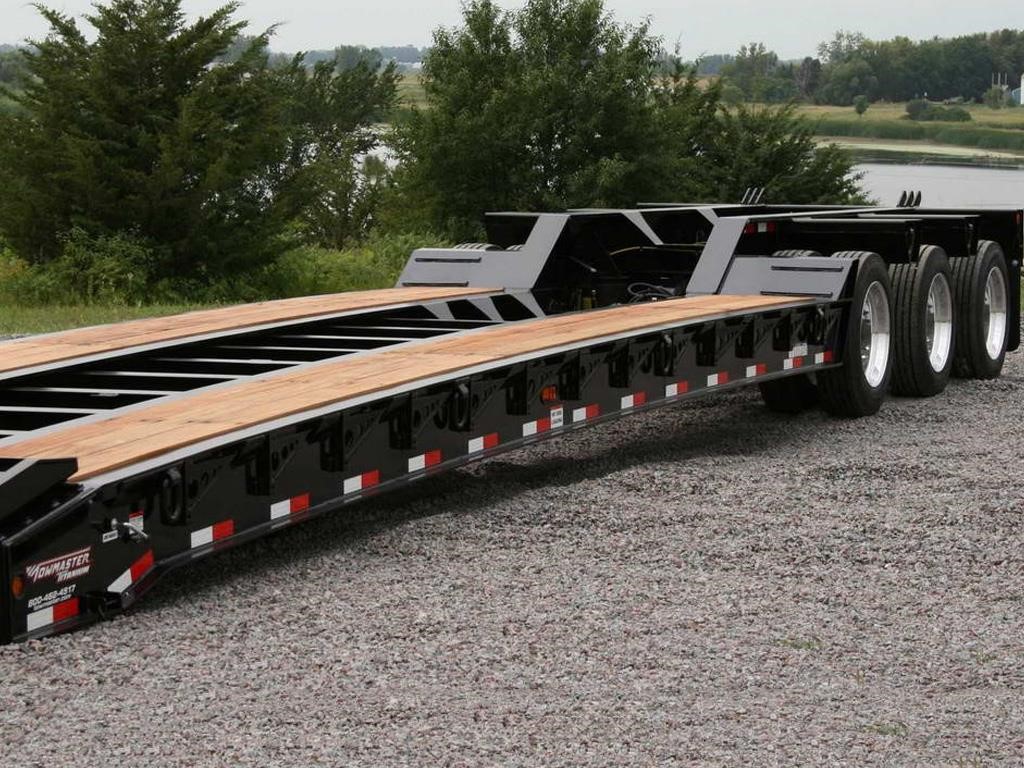

TOWMASTER T-70 — DETACHABLE GOOSENECK (FIFTH-WHEEL)
The Towmaster® detachable gooseneck trailers are a state-of-the-art design with modular frame construction. This detachable gooseneck trailer offers more convenient features to make loading or unloading quick and easy. The fit and finish is unmatched as the entire trailer is pre-painted before assembly and decking for a professional, clean look. The Towmaster detachable is completely designed and built at our factory, so you can be sure you are getting a genuine quality Towmaster Trailer.
STANDARD EQUIPMENT
• S.A.E. king pin set at 16”
• Weather resistant sealed modular wiring
• Grommet mounted LED lights
• Registration holder
• Rust inhibiting primer
• Durable, rust inhibiting top coat
• Die-cut UV resistant vinyl decals
• D.O.T. approved conspicuity tape
• Mud flaps
• Trailer color: Equipment black
OPTIONAL EQUIPMENT
• Positive Air-Lock gooseneck
• Longer swing-clearance lengths
• Gooseneck fenders
• Self-contained hydraulic unit
• Dual hydraulic system
• Tapered deck
• Additional deck length
• Wide deck
• Bucket plate
• Several ramp options
• Several wheel options
• Booster and Flip-Axle options
• Suspension and brake options
• Color options: Construction Yellow, Equipment Red, Blue, Charcoal
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.
- Suspension / Tires - 22.5x8.25 Budd-type Wheels: Standard
- Capacity / Dimensions - Approx. Weight : 14,500 lbs | 6577 kg
- Suspension / Tires - Meritor Axles - number of axles: Standard | 2
- Suspension / Tires - Air Suspension: Standard
- Capacity / Dimensions - Overall Length : 42' | 12,802 mm
- Suspension / Tires - Axle Spread : 49" | 1245 mm
- Main Deck / Rear Trunnion - Tie Downs: Forged D-rings
- Main Deck / Rear Trunnion - Outside Rails - T1 Flange : 14" Fabricated
- Gooseneck - Swing Clearance : 84" | 2134 mm
- Suspension / Tires - Air Brakes: Standard
- Main Deck / Rear Trunnion - Main Beam - T1 Flange : 16" Fabricated
- Suspension / Tires - Tire Size - all Load Range Rating H: 255/70R x 22.5
- Gooseneck - Fifth-Wheel Deck Lock: Standard
- Gooseneck - Air-Pin Deck Lock: Optional
- Gooseneck - Greaseable Pivot Points: Standard
- Main Deck / Rear Trunnion - Supporting Bolsters Between Wheels: Standard
- Suspension / Tires - Oil Bath Hubs: Standard
- Main Deck / Rear Trunnion - Swing-out Outriggers: Standard
- Main Deck / Rear Trunnion - Approach Bolster: Standard
- Main Deck / Rear Trunnion - Front Flip-up Ramps: Standard
- Main Deck / Rear Trunnion - Self-Aligning Locking Fifth-Wheel : Standard
- Suspension / Tires - Poly Mud Flaps: Standard
- Main Deck / Rear Trunnion - Fixed Approach: Optional
- Gooseneck - Twin Five-Position Load Block: Standard
- Suspension / Tires - Forged Alloy Spindles: Standard
- Main Deck / Rear Trunnion - HD Removable Swing-out Outriggers: Optional
- Suspension / Tires - Wheel Bolt Pattern: 10-bolt
- Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
- Capacity / Dimensions - Capacity Rating in 16ft : 70,000 lbs | 31,751 kg
- Suspension / Tires - Wheels Hub Piloted: Standard
- Main Deck / Rear Trunnion - Trunnion Open Boom Well: Standard
- Main Deck / Rear Trunnion - Outside Oak Deck Full 2”: Standard
- Capacity / Dimensions - Deck Height - Fully Loaded : 24" | 610 mm
- Capacity / Dimensions - Deck Length : 22' | 6706 mm
- Main Deck / Rear Trunnion - Flip Axle Mount Brackets: Optional
- Suspension / Tires - Axle Capacity - Each: 25,000 lbs | 11,340 kg
- Suspension / Tires - Brake Size : 16.5" x 7" | 419 x 178 mm
- Capacity / Dimensions - Capacity Rating : 70,000 lbs | 31,751 kg
- Main Deck / Rear Trunnion - Crossmembers : 10" Deep x 4" Flange
- Main Deck / Rear Trunnion - Stinger Reinforcement: N/A
- Main Deck / Rear Trunnion - Diamond Cut-outs: Optional
- Gooseneck - Wet Line Hydraulic System: Standard
- Main Deck / Rear Trunnion - Number of Tie-Downs : 10 Total | 5 Side
- Gooseneck - Length : 10'10" | 3302 mm
