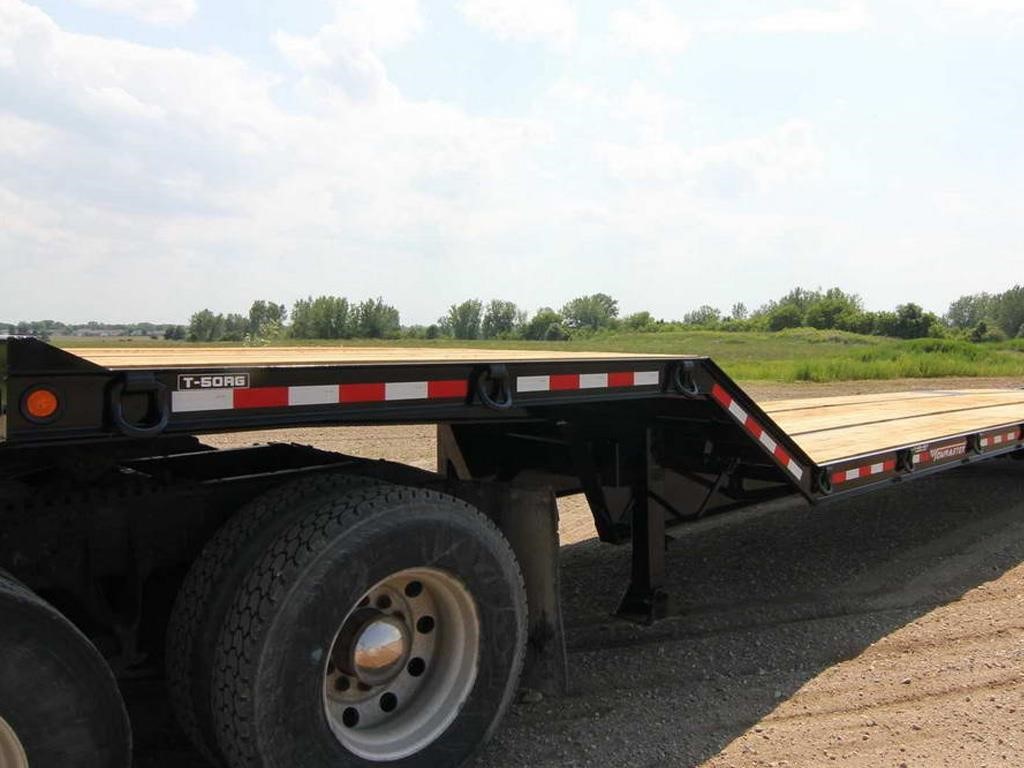

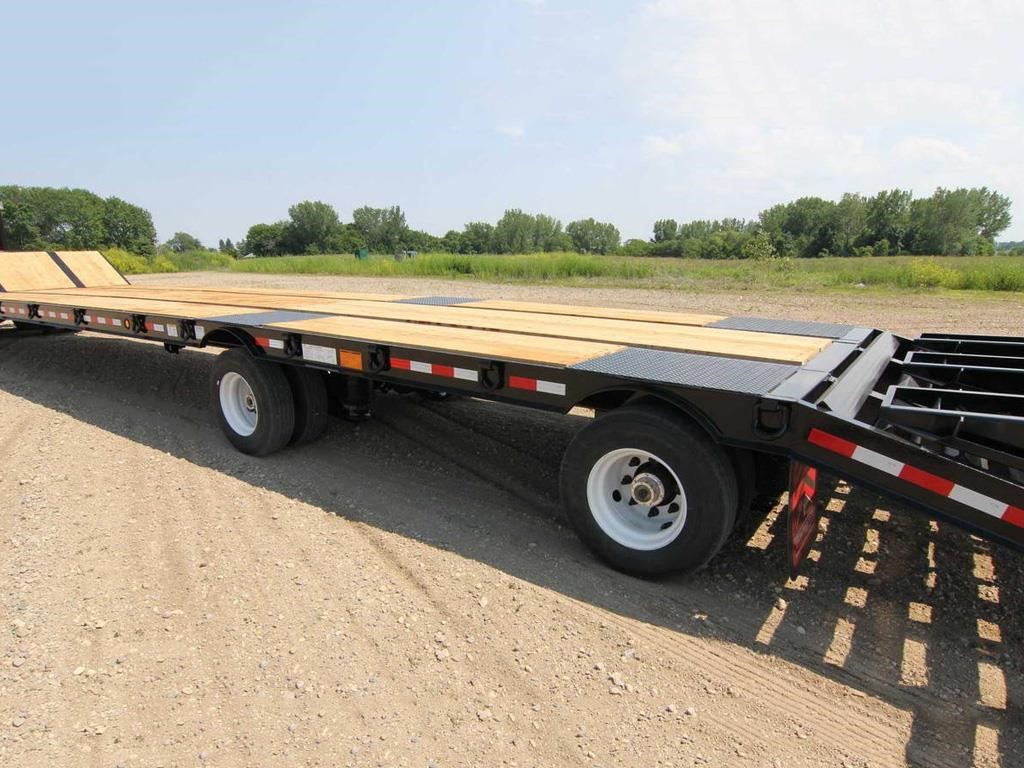

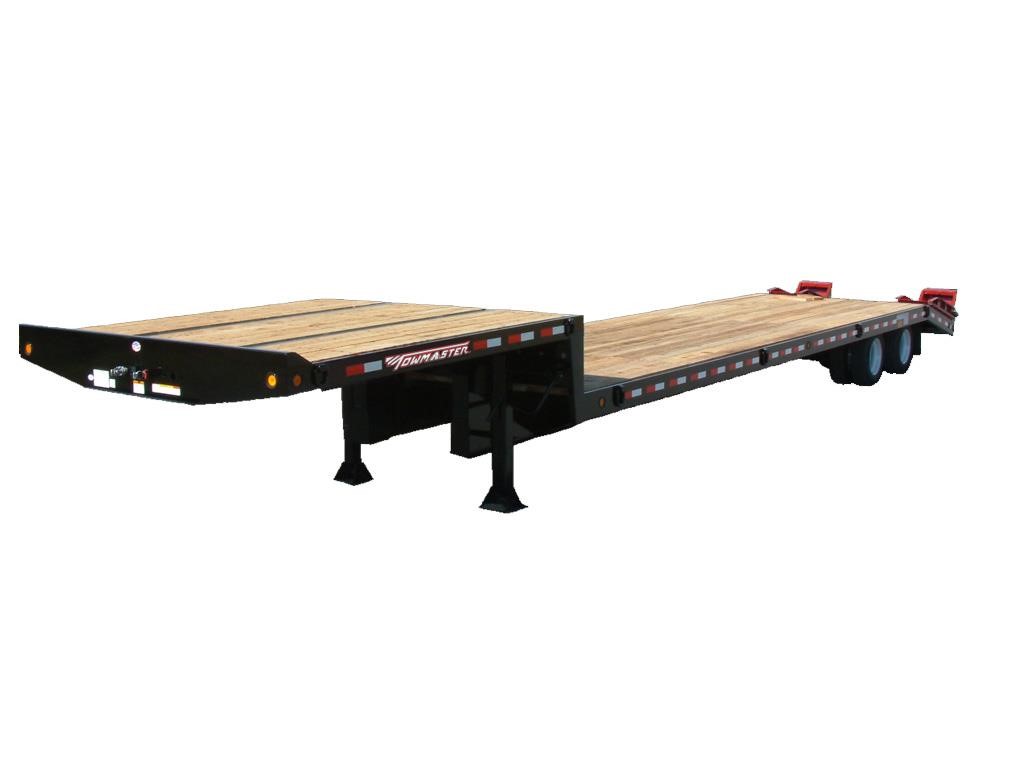

TOWMASTER T-70RG — RIGID GOOSENECK TRAILER



The Towmaster® T-70RG Rigid Gooseneck trailer is ready to haul your heavy equipment behind your fifth-wheel tractor. It features dual axles, two-way spring-assist ramps, Hutchens suspension and sealed wiring. A 10-foot top deck can haul a skid-loader or other smaller equipment (optional loading ramps required). A triple axle is available on the T-70RG.



STANDARD EQUIPMENT

• S.A.E. king pin

• 7-pole round electrical plug

• Weather resistant sealed modular wiring

• Grommet mounted LED lights

• Registration holder

• Rust inhibiting primer

• Durable, rust inhibiting top coat

• Die-cut UV resistant vinyl decals

• D.O.T. approved conspicuity tape

• Mud flaps

• Adjustable ramp width spacing

• Trailer color: Equipment black

• Ramp color: Equipment Red



OPTIONAL EQUIPMENT

• Sloped gooseneck

• Additional deck length

• 12K electric winch

• Additional tie-downs

• Rub rail with stake pockets

• Third axle

• Spare tire and wheel mount

• Spare tire and wheel

• Several ramp options

• Color options: Construction Yellow, Equipment Red, Blue, Charcoal

• Galvanizing



Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.

  • Frame / Ramps - Main Beam - 25’+ : Mfg. Cambered
  • Suspension / Tires - Wheel Bolt Pattern: 8-bolt

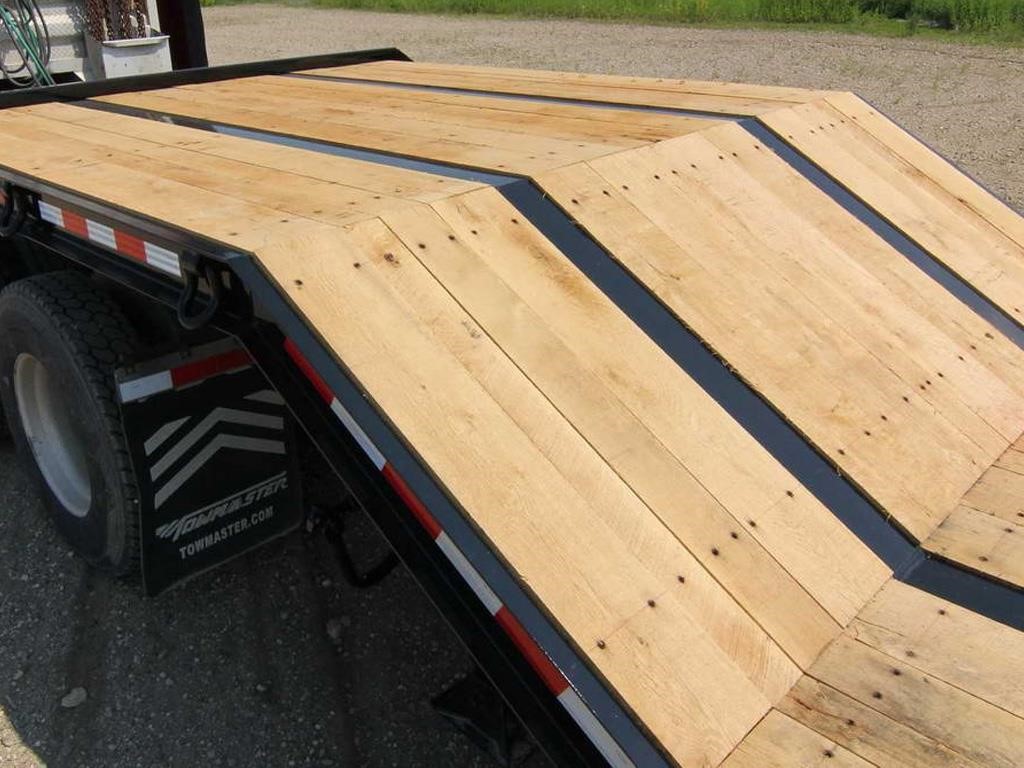

  • Frame / Ramps - Deck Material : 2” nom. White Oak
  • Frame / Ramps - Ramps : 5' x 21" | 1524 x 533 mm
  • Frame / Ramps - Forged D-Ring Tie Downs : 12 Total | 6 Side
  • Frame / Ramps - Main Beam - up to 24’ : Mfg. Cambered
  • Suspension / Tires - Air Brakes - Full ABS Modulated, Park Brake All Axles : Standard
  • Capacity / Dimensions - Deck Height - Loaded: 33" | 838 mm
  • Capacity / Dimensions - Deck Length : 24' | 7315 mm
  • Frame / Ramps - Two-Way Spring Assist: Standard
  • Frame / Ramps - Beam Crossmembers: W6 x 9, Gr. 50
  • Gooseneck - Swing Clearance : 82.5" | 2096 mm
  • Capacity / Dimensions - GVWR : 85,600 lbs | 38,827 kg
  • Suspension / Tires - Tires / Load Range Rating: 235/75R17.5 | H
  • Capacity / Dimensions - Overall Length : 39'9" | 12,116 mm
  • Gooseneck - Top Deck Length : 10' | 3048 mm
  • Suspension / Tires - Hub Piloted Budd-type Wheels : 17.5" x 6.75" | 445 x 171 mm
  • Frame / Ramps - Deck Crossmembers: 6" I-beam
  • Gooseneck - Truck Height : 49" | 1245 mm
  • Suspension / Tires - Hutchens Spring Suspension: Standard
  • Capacity / Dimensions - Overall Width : 8'6" | 2591 mm
  • Suspension / Tires - Axle Capacity - Each: 22,500 lbs | 10,206 kg
  • Frame / Ramps - Beavertail 16°: 4' | 1219 mm
  • Gooseneck - (2) Bolt-on Two-Speed Parking Jacks: 25K
  • Frame / Ramps - Channel Side Rails : 8" | 203 mm
  • Suspension / Tires - No. of Axles: 2
  • Suspension / Tires - Axle Spread : 49" | 1245 mm
  • Capacity / Dimensions - Approx. Weight : 15,600 lbs | 7076 kg
  • Capacity / Dimensions - Capacity Rating : 70,000 lbs | 31,751 kg
  • Frame / Ramps - Wood Protectors: Standard
  • Suspension / Tires - Hubs: Oil Bath
  • Suspension / Tires - Brake Size : 12.25" x 7.5" | 311 x 191 mm
