T80J | Alta Equipment Company

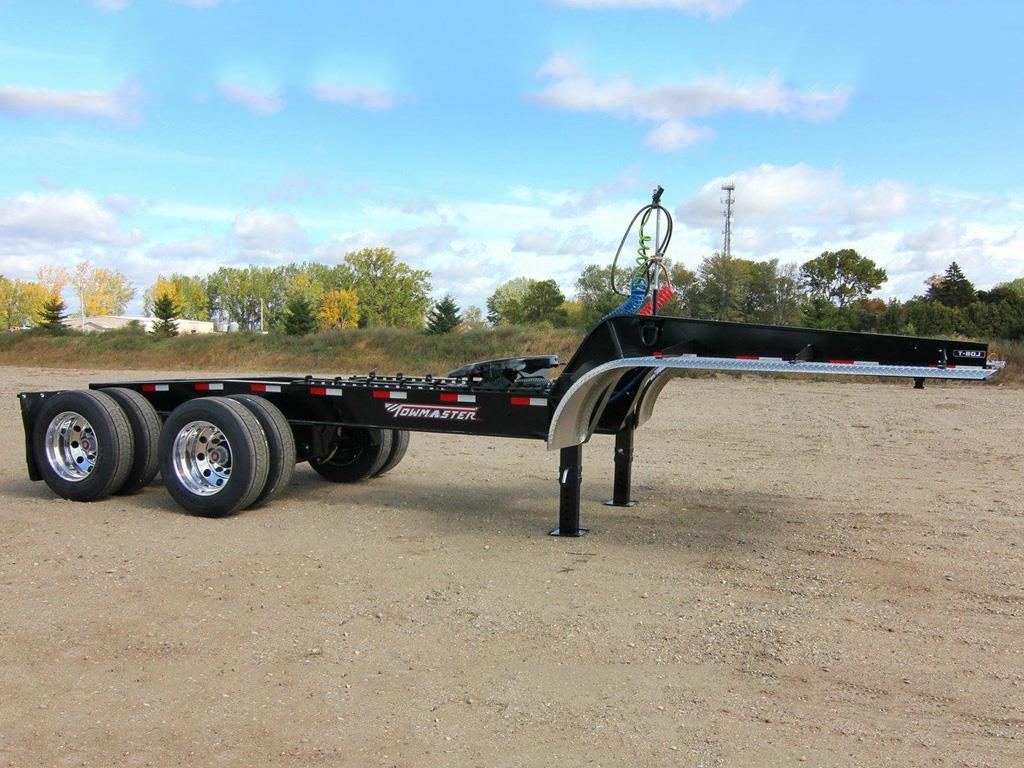

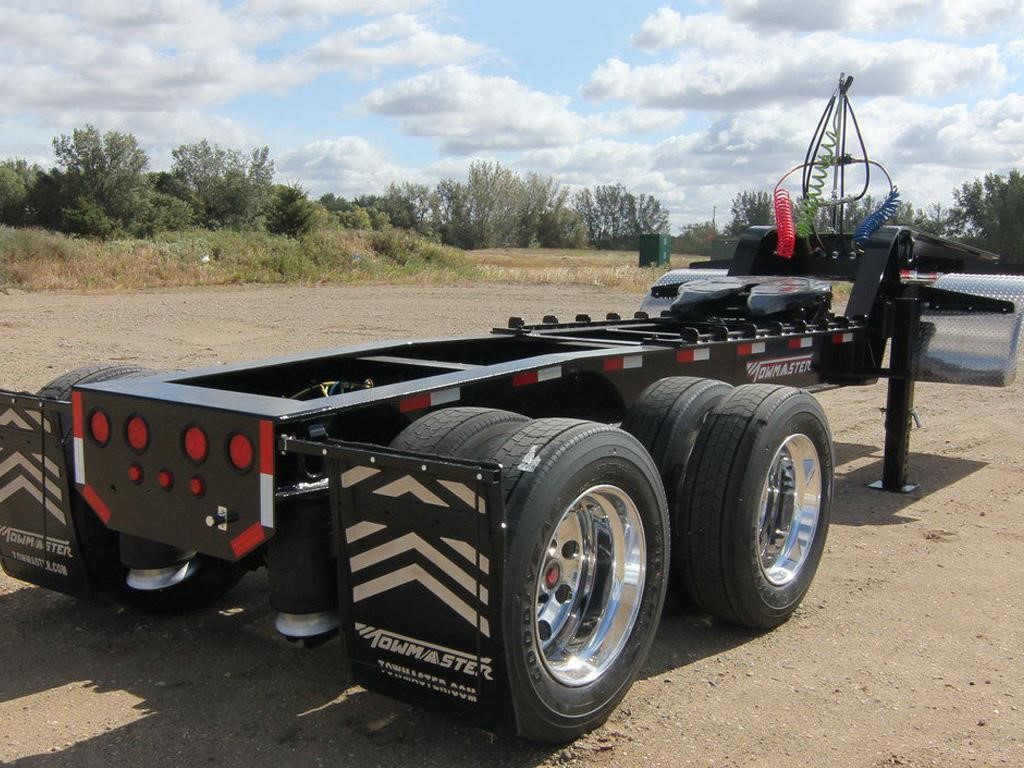

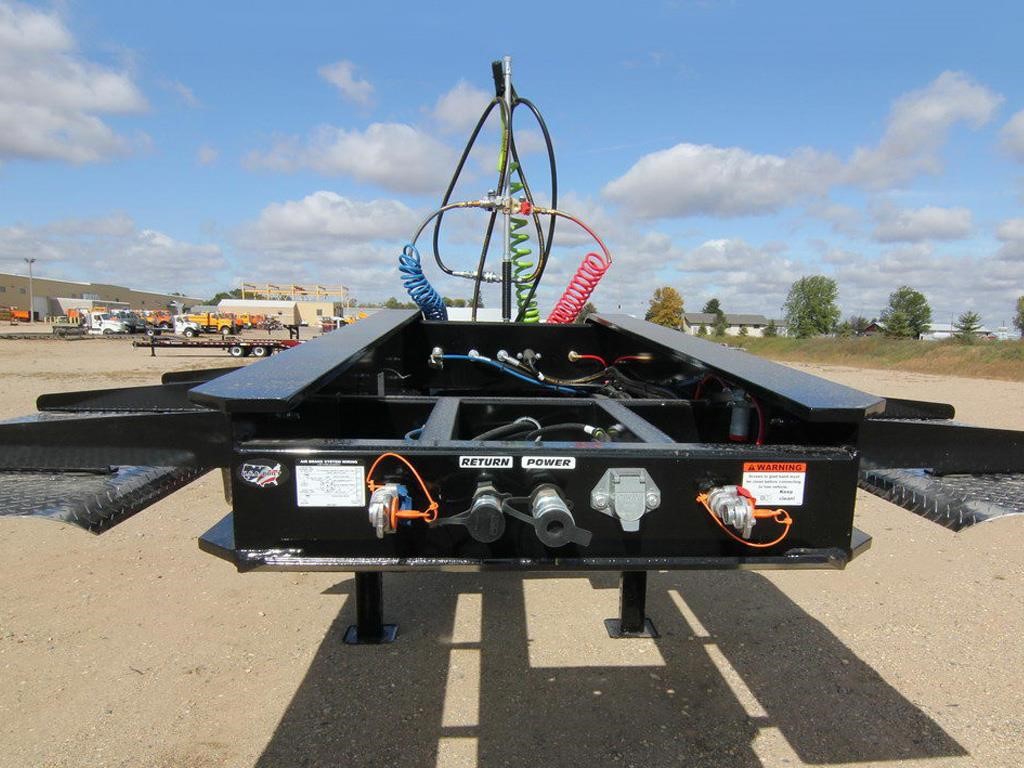

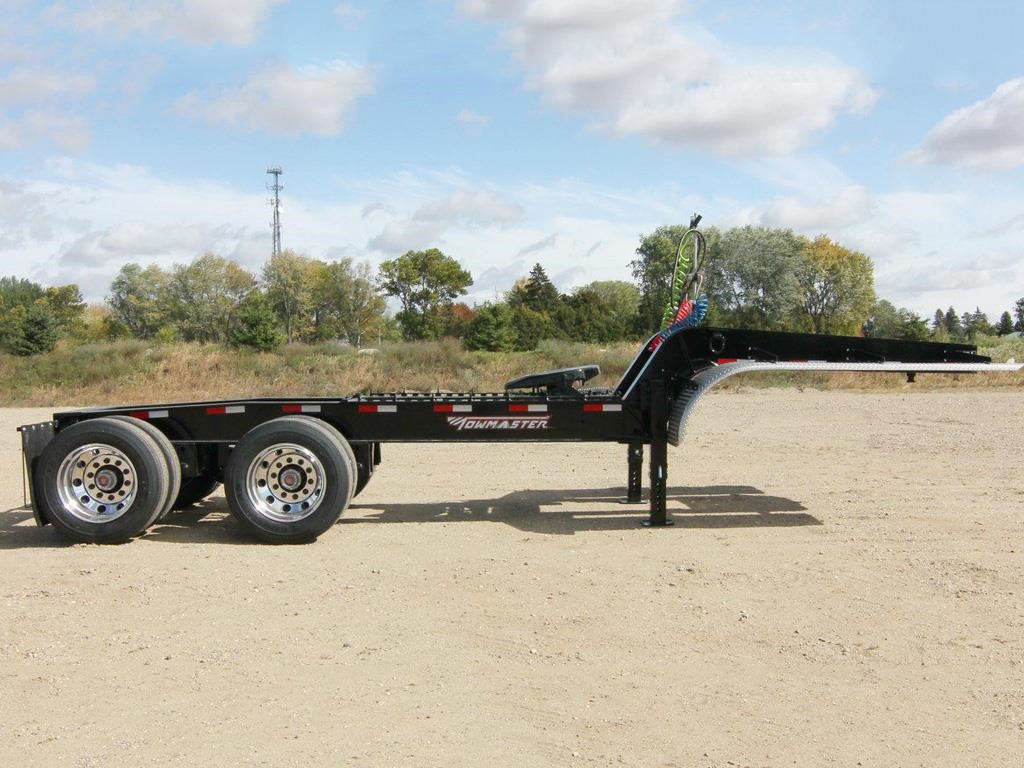

TOWMASTER T-80J — JEEP

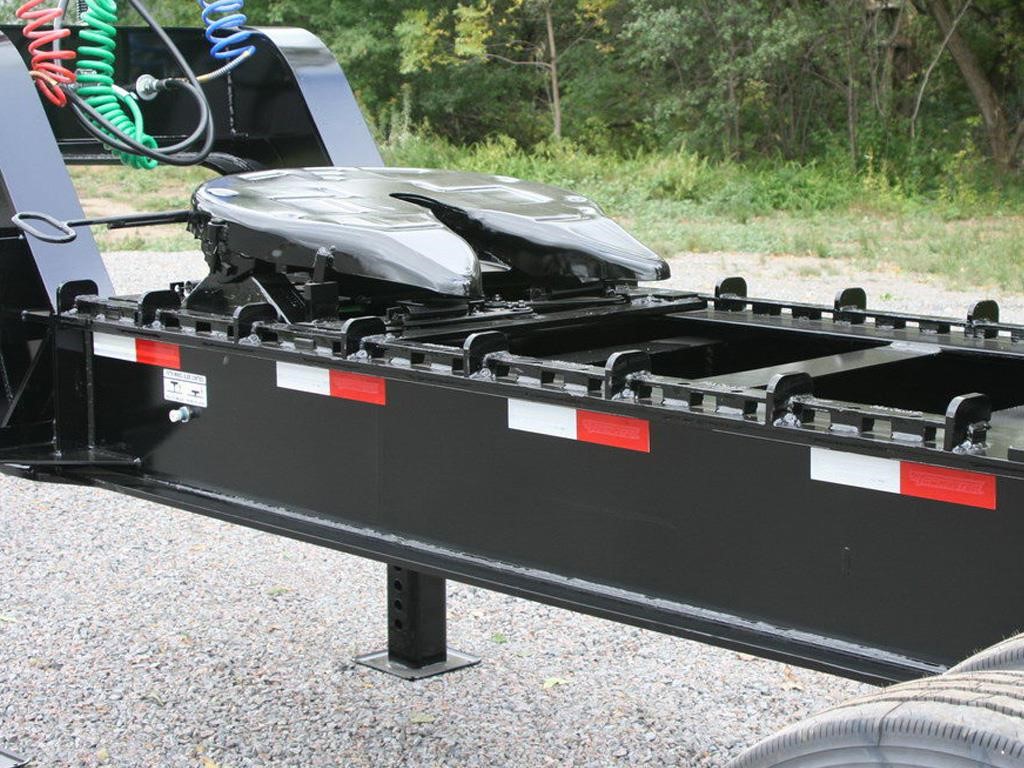

The T-80J Jeep is designed to be used with our detachable gooseneck trailer, but also with other brands of lowboys on the market. It features a sliding adjustable fifth wheel hitch, air-ride suspension, telescoping pin-type parking stands, and automatic slack adjusters. We offer many options to customize the Jeep to fit your needs. Built by Towmaster®, you’re sure to get the quality you expect.

STANDARD EQUIPMENT

• S.A.E. king pin set at 16”

• Weather resistant sealed modular wiring

• Grommet mounted LED lights

• Registration holder

• Rust inhibiting primer

• Durable, rust inhibiting top coat

• Die-cut UV resistant vinyl decals

• D.O.T. approved conspicuity tape

• Mud flaps

• Trailer color: Equipment black

OPTIONAL EQUIPMENT

• Longer swing-clearance lengths

• Gooseneck fenders

• Aluminum toolbox

• Chain/storage tray in gooseneck

• Lockable lid for storage tray

• 8’-6” and 9’-0” width options

• Flag holders

• Raise/lower kit

• Manual ride height control valve

• Aluminum wheels

• Tire equalization options

• Color options: Construction Yellow, Equipment Red, Blue, Charcoal

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Manufacturer reserves the right to change models and specifications as they see fit.

  • Suspension / Tires - Axles: 2
  • Capacity / Dimensions - Approx. Weight : 7,500 lbs | 3402 kg
  • Capacity / Dimensions - Overall Length : 24'8" | 7518 mm
  • Suspension / Tires - 22.5x8.25 Wheels: Standard
  • Capacity / Dimensions - GVWR : 95,000 lbs | 43,091 kg
  • Frame - No. of Parking Jacks / Capacity : 2 | 25K
  • Suspension / Tires - Air Brakes: Standard
  • Suspension / Tires - Axle Spread : 55" | 1397 mm
  • Suspension / Tires - Poly Mud Flaps: Standard
  • Capacity / Dimensions - GAWR : 50,000 lbs | 22,680 kg
  • Capacity / Dimensions - Capacity Rating : 80,000 lbs | 36,287 kg
  • Capacity / Dimensions - Max Fifth Wheel to Axle Spread : 9'4" | 2845 mm
  • Suspension / Tires - Wheels Hub Piloted: Standard
  • Suspension / Tires - Air Suspension: Standard
  • Frame - Parking Jack Type: Telescoping Pin-Type
  • Capacity / Dimensions - Fifth Wheel Height - Fully loaded : 50" | 1270 mm
  • Frame - Fifth-Wheel Slide : 41" |1041 mm
  • Capacity / Dimensions - Hitch to Axle Spread Length : 19'4" | 5893 mm
  • Suspension / Tires - Axle Capacity - Each: 25,000 lbs | 11,340 kg
  • Frame - Swing Clearance : 84" | 2134 mm
  • Capacity / Dimensions - Overall Width : 8' | 2438 mm
  • Suspension / Tires - Tire Size - all Load Range Rating H : 255/70R x 22.5
  • Suspension / Tires - Oil Bath Hubs: Standard
  • Suspension / Tires - Wheel Bolt Pattern: 10-bolt
  • Suspension / Tires - Brake Size : 16.5" x 7" | 419 x 178 mm
  • Frame - Main Beam - T1 Flange : 15" Fabricated
  • Suspension / Tires - Forged Alloy Spindles: Standard
  • Frame - King Pin Setting : 16" | 406 mm
