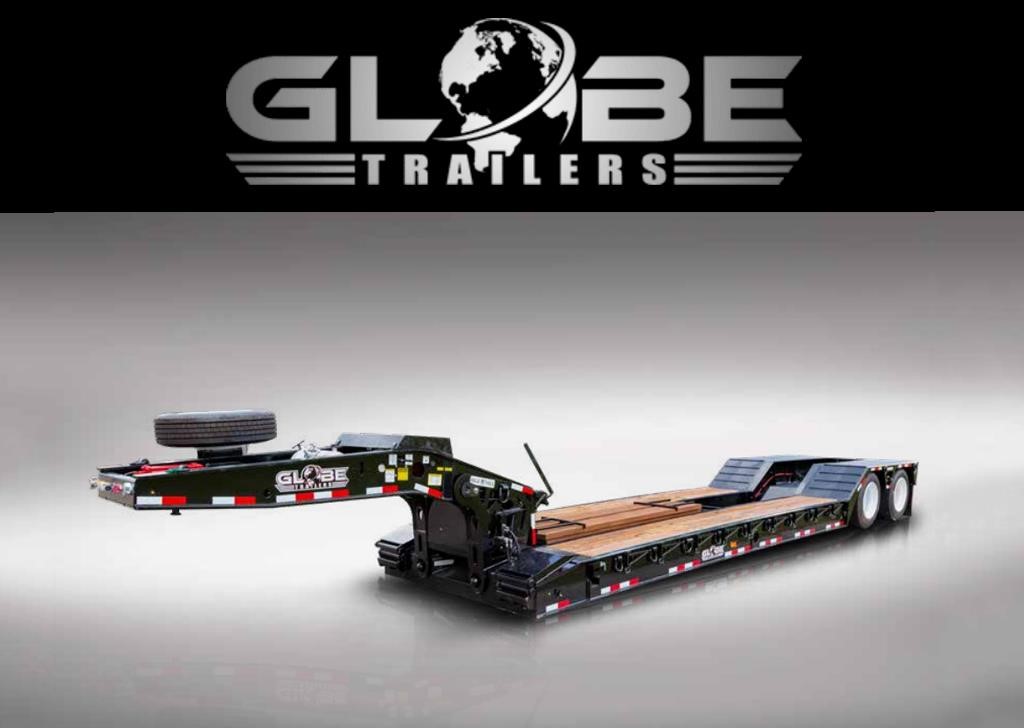

35LB521357 — GLOBE 35 TON LOWBOY STANDARD
FEATURES & BENEFITS
HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry.
AIR BAGS
30K pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
22” DECK HEIGHT
With a standard deck height of 22”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
12” CROSS MEMBER SPACING
Standard 12” stubbed cross member spacing produces added strength to the trailer and also less stress on the decking, leading to a longer life of the decking material
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice
V-STYLE GUIDE
V-Style guide with front tapered beams helps position the gooseneck locking pin, which makes hooking up to a Globe Trailer fast and easy. The locking pin guide rim helps prevent the gooseneck locking pin from coming loose in transit.
MOUNTED SPARE TIRE
Optional spare tire that mounts securely on top of Gooseneck.
STANDARD FRONT RAMPS
Standard Steel Front ramps, for ease of front loading.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
LIFT & TIE DOWN RINGS
Lift & Tie down rings on both sides of the main deck.
POLYURETHANE VS RUBBER BUSHING
• Reduced Maintenance | Increased Maintenance
• Increased Trailer Lifetime | Needs Replacement
• Increased Trailer Performance | Reduces Trailer Performance
• Weather Resistant | Damaged from Weather
FINISH
• Sandblast & Powder Coat
• Mud Flaps & Reflective Tape
• Flag Holders
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- TIRES & RIMS - Rims: 8.25 x 22.5 Hub Piloted Steel
- REAR DECK - No. of D-Rings: 1 Each Side
- DIMENSIONS - Lower Deck Height: 22” loaded
- DIMENSIONS - Rear Deck Height: 42”
- GOOSENECK - King Pin Style: Fixed
- MAIN DECK - Front Ramps: Steel, 18” x 31” Standard
- GOOSENECK - King Pin Setting: 16”
- AXLES, SUSPENSION, & RUNNING GEAR - Axle Capacity: 25,000lbs
- AXLES, SUSPENSION, & RUNNING GEAR - ABS: 2S1M
- GOOSENECK - 5th Wheel Height: 48”
- TIRES & RIMS - Tires: 255/70R x 22.5 "H"
- MAIN DECK - Lift & Tie Down Rings: 2 Each Side
- REAR DECK - Riser: 35° Rear Bridge Ramp
- DIMENSIONS - Overall Width: 8’
- DIMENSIONS - Trailer Model : GTBN352-42-20-GG
- AXLES, SUSPENSION, & RUNNING GEAR - Axle 1: Fixed Type 30 Non-ABS
- DIMENSIONS - Approximate Weight: 17120 ± lbs
- HYDRAULICS - 13 HP Honda: Gas
- AXLES, SUSPENSION, & RUNNING GEAR - No. of Axles: 2
- MAIN DECK - Main Beam: 16” T-1 Steel
- GOOSENECK - Swing Clearance: 98”
- MAIN DECK - Crossmembers: 10” & 4”
- DECKING/FLOORING - Main Decking: 1.75” (Oak With Carriage Bolts & Clips)
- REAR DECK - Rear Well Style: Boom & Bucket Drop Style
- MAIN DECK - Centers: 40” Standard
- AXLES, SUSPENSION, & RUNNING GEAR - Axle 2: Fixed Type 30/30 ABS
- DIMENSIONS - Gooseneck Length: 11’ 11”
- AXLES, SUSPENSION, & RUNNING GEAR - Brakes: 16 1/2” x 7” - 25K
- MAIN DECK - Spacing: 12”
- AXLES, SUSPENSION, & RUNNING GEAR - Note: Auto Dump | Manual Ride Height Over Ride
- DECKING/FLOORING - Wheel Covers: Steel Cover D-Plate
- MAIN DECK - No. of D-Rings: 6 Each Side
- DIMENSIONS - Lower Deck Length: 20’
- GOOSENECK - King Pin: 2”
- HYDRAULICS - Wet Line Kit: Wing Nut Connection
- MAIN DECK - Outriggers: Removable Standard
- ELECTRICAL - Connector: 7 Way Connector
- DIMENSIONS - Overall Length: 41’ 11”
- AXLES, SUSPENSION, & RUNNING GEAR - Axle Spacing: 54”
- MAIN DECK - Concentrated Load: 70,000 lbs in 12’
- ELECTRICAL - Lights: LED Plus 2 - Rear Strobes
- GOOSENECK - Note: Tool Box in Gooseneck | Spare Tire & Rim mounted on Gooseneck
- DECKING/FLOORING - Well Decking: Removable D-Plate - Full Length
- DIMENSIONS - Rear Deck Length: 10’
- MAIN DECK - Side Rails: 16” T-1 Steel
- GOOSENECK - Ride Height: 5-Position
- DIMENSIONS - Ground Clearance: 8’
- AXLES, SUSPENSION, & RUNNING GEAR - Air Ride Suspension: 25K
