GLOBE TRAILERS LOWBOY, 50 TON — MODEL GTBN503-54-26-GG
3 AXLE, DETACHABLE NON GROUND BEARING, MAXIMUM PAYLOAD 100,000 LBS.
All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
FEATURES & BENEFITS
HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry. Most competitors offer only a 5 year warranty. This shows how committed Globe Trailers is to its customers.
18” DECK HEIGHT
With a standard deck height of 18”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
AIR BAGS
30K pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.
STANDARD OUTRIGGERS
Standard removable outriggers.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.
V-STYLE GUIDE
V-Style guide with front tapered beams helps position the gooseneck locking pin, which makes hooking up to a Globe Trailer fast and easy. The locking pin guide rim helps prevent the gooseneck locking pin from coming loose in transit.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- Gooseneck - Fenders:
- Axles, Suspension, & Running Gear - Axle Spacing: 54”
- Tires & Rims - Tires: 255/70R x 22.5 “H”
- Main Deck - Crossmembers: 8” & 12”
- Gooseneck - King Pin Style: 2-Position Removable
- Rear Deck - No. of D-Rings: 2 each side
- Finish - Sandblast & Powder Coat: Yes
- Main Deck - Outriggers: Full Height Removable
- Main Deck - No. of D-Rings: 15 each side

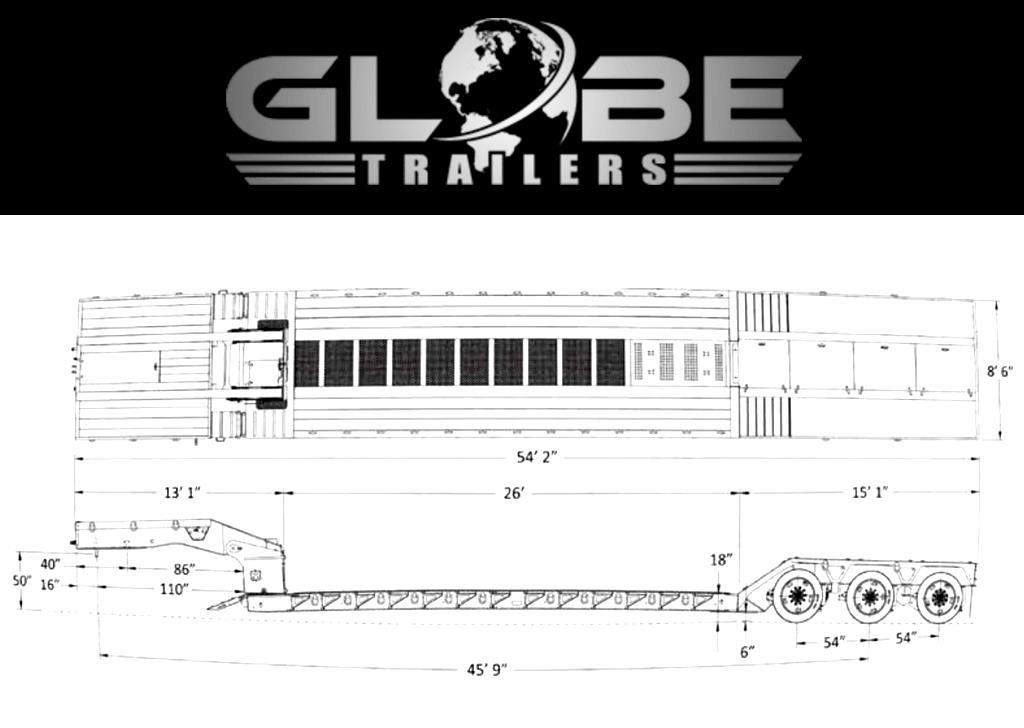

- Dimensions - Lower Deck Length: 26’
- Electrical - Connector: 7 Way Connector
- Axles, Suspension, & Running Gear - Axle Capacity: 25,000 lbs
- Main Deck - Concentrated Load: 100,000 lbs in 12’
- Gooseneck - King Pin: 2”
- Dimensions - Overall Width: 8’ 6”
- Dimensions - Lower Deck Height: 18”
- Electrical - Lights: LED Plus 2 - Rear Strobes
- Gooseneck - Swing Clearance: 110” & 86”
- Dimensions - Overall Length: 54’ 2”
- Hydraulics - 1: Wet Line Kit - Wing Nut Connection
- Dimensions - Approximate Weight: 26660 ± lbs
- Main Deck - Spacing: 12”
- Gooseneck - King Pin Setting: 16” & 40”
- Decking/Flooring - Main Decking: 1.75” Apitong - Open Center
- Axles, Suspension, & Running Gear - Additional: Auto Dump
- Rear Deck - Rear Well Style: Boom & Bucket Well
- Main Deck - Main Beam: 12” T-1 Steel
- Decking/Flooring - Wheel Covers: Steel Covered D-Plate
- Hydraulics - 2: 13 HP Honda - Gas
- Main Deck - Centers: 40” Standard
- Dimensions - Rear Deck Length: 15’ 1”
- Axles, Suspension, & Running Gear - Axle 3: Super Lift Type 30 Non-ABS
- Axles, Suspension, & Running Gear - ABS: 2S1M
- Tires & Rims - Rims: 8.25 x 22.5 Hub Piloted Steel
- Rear Deck - Riser: 35° Rear Bridge Ramp
- Gooseneck - 5th Wheel Height: 50”
- Main Deck - Front Ramps: Steel, 18” x 31” Standard
- Finish - Flag Holders: Yes
- Main Deck - Side Rails: 12” T-1 Steel
- Electrical - Additional: 4 Extra lights down each side of main deck
- Axles, Suspension, & Running Gear - No. of Axles: 3
- Gooseneck - Ride Height: 5-Position
- Finish - Mud Flaps & Reflective Tape: Yes
- Rear Deck - Additional:
- Dimensions - Ground Clearance: 6”
- Axles, Suspension, & Running Gear - Brakes: 16 ½” x 7” - 25K
- Axles, Suspension, & Running Gear - Axle 2: Fixed Type 30/30 ABS
- Decking/Flooring - Well Decking: Removable D-Plate
- Axles, Suspension, & Running Gear - Suspension: Air Ride Suspension - 25K
- Axles, Suspension, & Running Gear - Axle 1: Fixed Type 30/30 ABS
- Dimensions - Rear Deck Height:
- Dimensions - Gooseneck Length: 13’ 1”
- Dimensions - Trailer Model: GTBN503-54-26-GG
