GLOBE TRAILERS LOWBOY, 50 TON — MODEL GTBN503-50-24-GG
3 AXLE, DETACHABLE NON GROUND BEARING, MAXIMUM PAYLOAD 100,000 LBS.
All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
FEATURES & BENEFITS
HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry. Most competitors offer only a 5 year warranty. This shows how committed Globe Trailers is to its customers.
22” DECK HEIGHT
With a standard deck height of 22”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
AIR BAGS
30K pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.
STANDARD OUTRIGGERS
Standard removable outriggers.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.
V-STYLE GUIDE
V-Style guide with front tapered beams helps position the gooseneck locking pin, which makes hooking up to a Globe Trailer fast and easy. The locking pin guide rim helps prevent the gooseneck locking pin from coming loose in transit.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

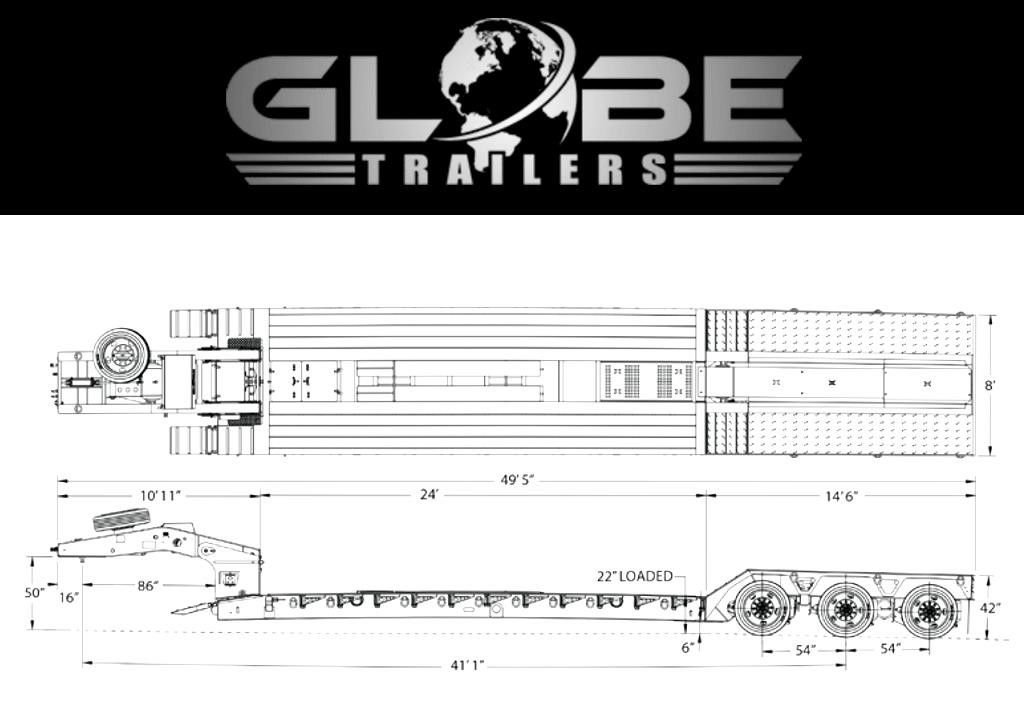

- Main Deck - Concentrated Load: 100,000 lbs in 12’
- Dimensions - Rear Deck Height: 42”
- Dimensions - Approximate Weight:
- Axles, Suspension, & Running Gear - Axle 2: Fixed Type 30/30 ABS
- Gooseneck - King Pin Style: Fixed
- Dimensions - Ground Clearance: 6”
- Dimensions - Overall Width: 8’
- Main Deck - Outriggers: Removable Standard
- Axles, Suspension, & Running Gear - No. of Axles: 3
- Electrical - Connector: 7 Way Connector
- Finish - Mud Flaps & Reflective Tape: Yes
- Main Deck - Spacing: 12”
- Decking/Flooring - Wheel Covers: Steel Covered Over Wheels
- Dimensions - Gooseneck Length: 10’ 11”
- Finish - Flag Holders: Yes
- Axles, Suspension, & Running Gear - Additional: Auto Dump, Air Ride Adj.
- Axles, Suspension, & Running Gear - ABS: 2S1M
- Dimensions - Trailer Model: GTBN503-50-24-GG
- Gooseneck - Additional: Spare tire and rim, Tool Box Mounted On Neck
- Main Deck - No. of D-Rings: 9 each side
- Electrical - Additional: Safety Night Light Package with Battery
- Axles, Suspension, & Running Gear - Brakes: 16 ½” x 7” - 25K
- Electrical - Lights: LED Plus 2 - Rear Strobes
- Main Deck - No. of Lifting D-Rings: 2 each side
- Axles, Suspension, & Running Gear - Suspension: Air Ride Suspension - 25K
- Main Deck - Side Rails: 16” Fabricated T-1 “I” Beam
- Dimensions - Lower Deck Length: 24’
- Main Deck - Centers: 12”
- Tires & Rims - Rims: 8.25 x 22.5 Hole Hub Piloted Steel
- Decking/Flooring - Well Decking: Removable S-Plate Full Length
- Axles, Suspension, & Running Gear - Axle Spacing: 54”
- Rear Deck - Rear Well Style: Boom & Bucket Well
- Gooseneck - Ride Height: 5-Position
- Hydraulics - 1: Wet Line Kit - Wing Nut Connection
- Decking/Flooring - Main Decking: 2” nominal oak flooring
- Tires & Rims - Tires: 255/70R x 22.5 “H”
- Dimensions - Lower Deck Height: 22” loaded
- Axles, Suspension, & Running Gear - Axle 1: Fixed Type 30/30 Non-ABS
- Rear Deck - Riser: 35° Rear Bridge Ramp
- Gooseneck - Swing Clearance: 86”
- Main Deck - Main Beam: 16” Fabricated T-1 “I” Beam
- Axles, Suspension, & Running Gear - Axle 3: Lift Type 30 ABS
- Hydraulics - 2: 13 HP Honda Gas
- Gooseneck - King Pin Setting: 16”
- Gooseneck - 5th Wheel Height: 50”
- Main Deck - Crossmembers: 10” & 4” Jr. “I” beams
- Dimensions - Rear Deck Length: 14’ 6”
- Axles, Suspension, & Running Gear - Axle Capacity: 25,000 lbs
- Main Deck - Front Ramps: 18” x 31” double hinged flip ramps
- Finish - Sandblast & Powder Coat: Yes
- Dimensions - Overall Length: 49’ 5”
- Gooseneck - King Pin: 2”
- Rear Deck - No. of D-Rings: 3 each side
