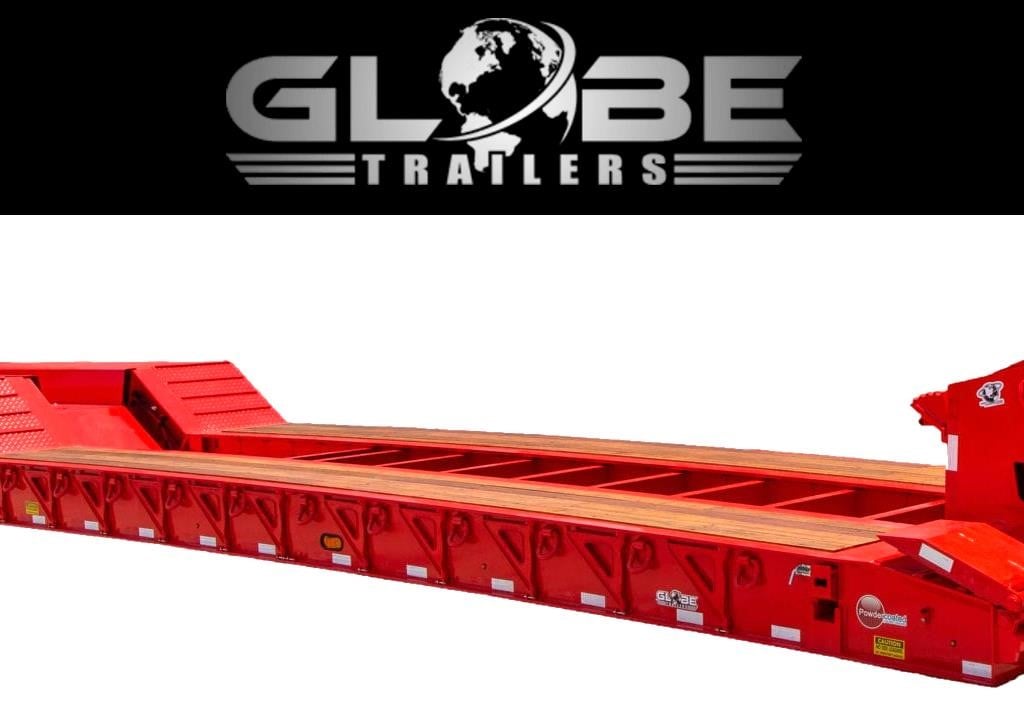

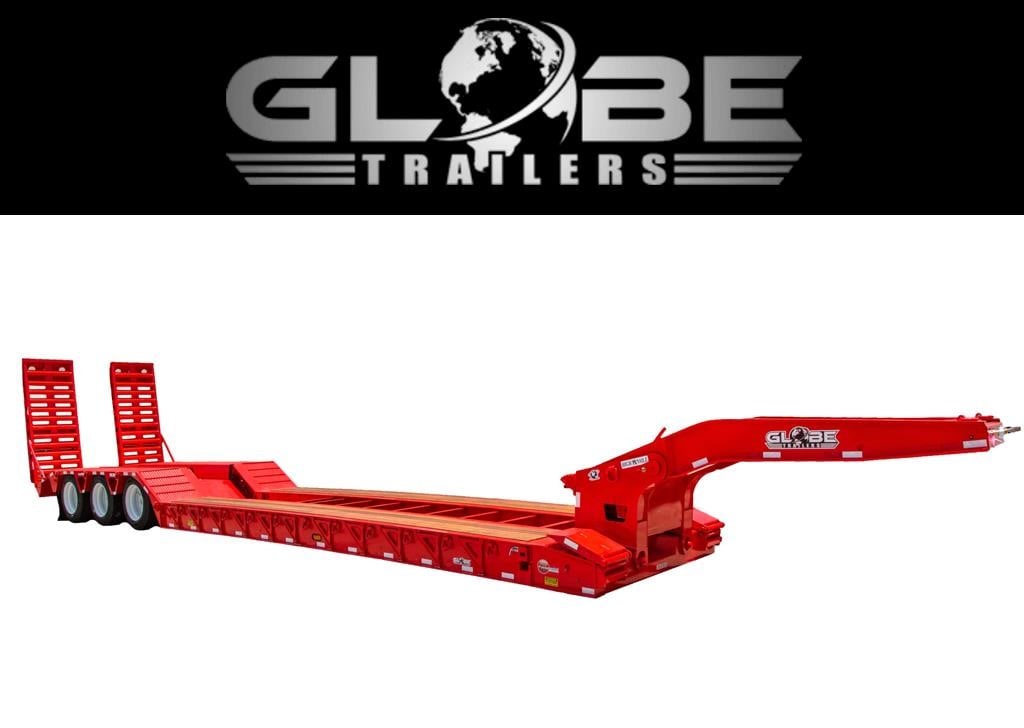

GTBN503-53-25-GG—GLOBE TRAILERS LOWBOY BEAVERTAIL, 50 TON
3 AXLE, DETACHABLE NON GROUND BEARING, MAXIMUM PAYLOAD 100,000 LBS. All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
FEATURES & BENEFITS
HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry. Most competitors offer only a 5 year warranty. This shows how committed Globe Trailers is to its customers.
HEAVY DUTY OUTRIGGERS
Standard heavy duty outriggers that span the entire height of the side rail allow for maximum force to be applied when in use.
AIR BAGS
30K pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
12” CROSS MEMBER SPACING
Standard 12” stubbed cross member spacing produces added strength to the trailer and also less stress on the decking, leading to a longer life of the decking material.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.

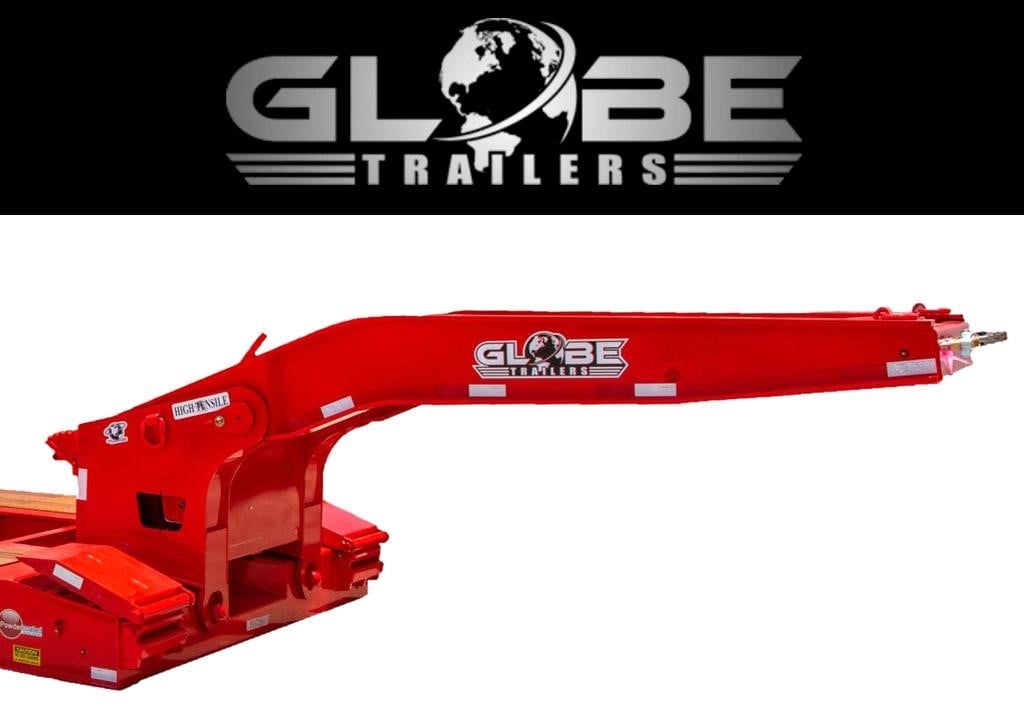

CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
Similar models may be shown in addition to or rather than the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- Dimensions - Lower Deck Height: 22” loaded
- Rear Deck - No. of D-Rings: 4 each side
- Main Deck - No. of D-Rings: 12 each side
- Gooseneck - 5th Wheel Height: 50”
- Dimensions - Approximate Weight: 23940 ± lbs
- Decking/Flooring - Main Decking: 1.75” Apitong Full Width
- Axles, Suspension, & Running Gear - Axle Spacing: 49”
- Dimensions - Overall Length: 53’ 3”
- Axles, Suspension, & Running Gear - No. of Axles: 3
- Axles, Suspension, & Running Gear - Axle 3: Super Lift Type 30 Non-ABS
- Gooseneck - Swing Clearance: 102”

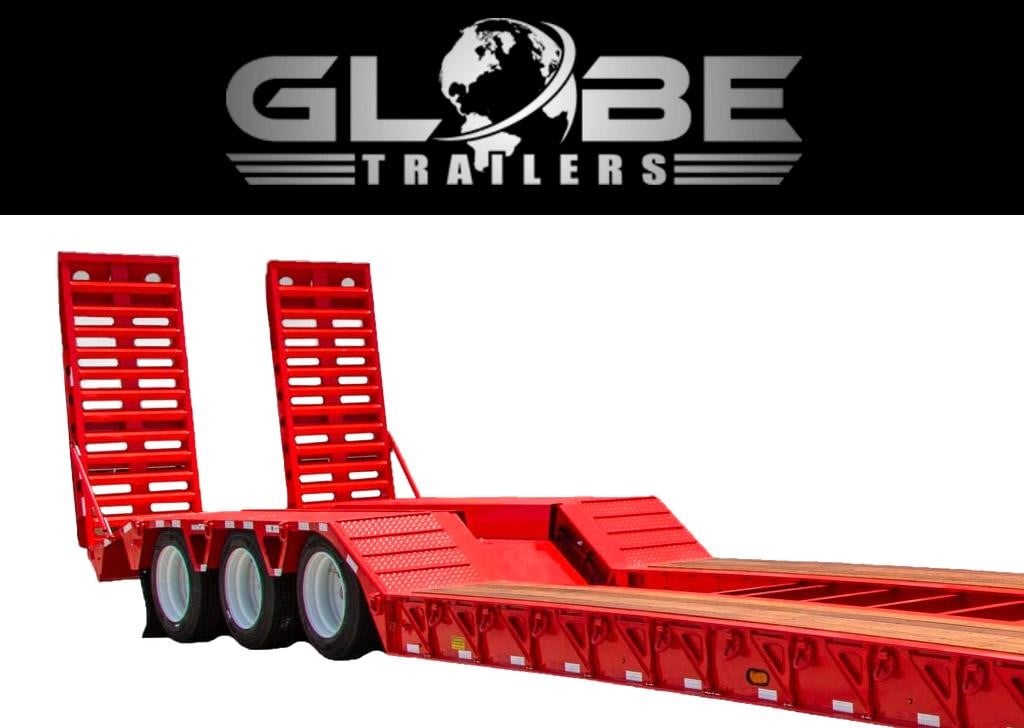

- Rear Deck - Optional Beavertail:
- Hydraulics - 1: Wet Line Kit - Wing Nut Connection
- Tires & Rims - Tires: 255/70R x 22.5 “H”
- Gooseneck - King Pin Style: Fixed
- Hydraulics - 2:
- Gooseneck - Fenders:
- Main Deck - Spacing: 12”
- Axles, Suspension, & Running Gear - Additional: Auto Dump
- Dimensions - Rear Deck Length: 16’ 1”
- Dimensions - Overall Width: 8’ 6”
- Axles, Suspension, & Running Gear - Axle Capacity: 25,000 lbs
- Finish - Mud Flaps & Reflective Tape: Yes
- Main Deck - Outriggers: Full Height Removable
- Rear Deck - Optional Rear Ramps:
- Axles, Suspension, & Running Gear - Axle 1: Fixed Type 30/30 Non-ABS
- Main Deck - Concentrated Load: 100,000 lbs in 12’
- Electrical - Lights: LED Plus 2 - Rear Strobes
- Finish - Sandblast & Powder Coat: Yes
- Main Deck - Crossmembers: 10” & 4”
- Gooseneck - Ride Height: 5-Position
- Decking/Flooring - Well Decking: Removable D-Plate - Full Length
- Dimensions - Rear Deck Height: 42”
- Electrical - Additional: Safety Night Light Package w/Battery
- Main Deck - Centers: 40” Standard
- Electrical - Connector: 7 Way Connector
- Dimensions - Lower Deck Length: 25’
- Axles, Suspension, & Running Gear - Brakes: 16 ½” x 7” - 25K
- Axles, Suspension, & Running Gear - ABS: 2S1M
- Main Deck - Side Rails: 16” T-1 Steel
- Decking/Flooring - Wheel Covers: Steel Covered D-Plate
- Main Deck - Front Ramps: Steel, 18” x 31” Standard
- Axles, Suspension, & Running Gear - Axle 2: Fixed Type 30/30 ABS
- Axles, Suspension, & Running Gear - Suspension: Air Ride Suspension - 25K
- Finish - Flag Holders: Yes
- Rear Deck - Rear Well Style: Boom & Bucket Style
- Dimensions - Trailer Model: GTBN503-53-25-GG
- Rear Deck - Optional:
- Dimensions - Ground Clearance: 6”
- Dimensions - Gooseneck Length: 12’ 3”
- Rear Deck - Riser: 90° w/6’ Air Transition Ramps
- Gooseneck - King Pin Setting: 16”
- Gooseneck - King Pin: 2”
- Tires & Rims - Rims: 8.25 x 22.5 Hub Piloted Outer Aluminum
- Main Deck - Main Beam: 16” T-1 Steel
