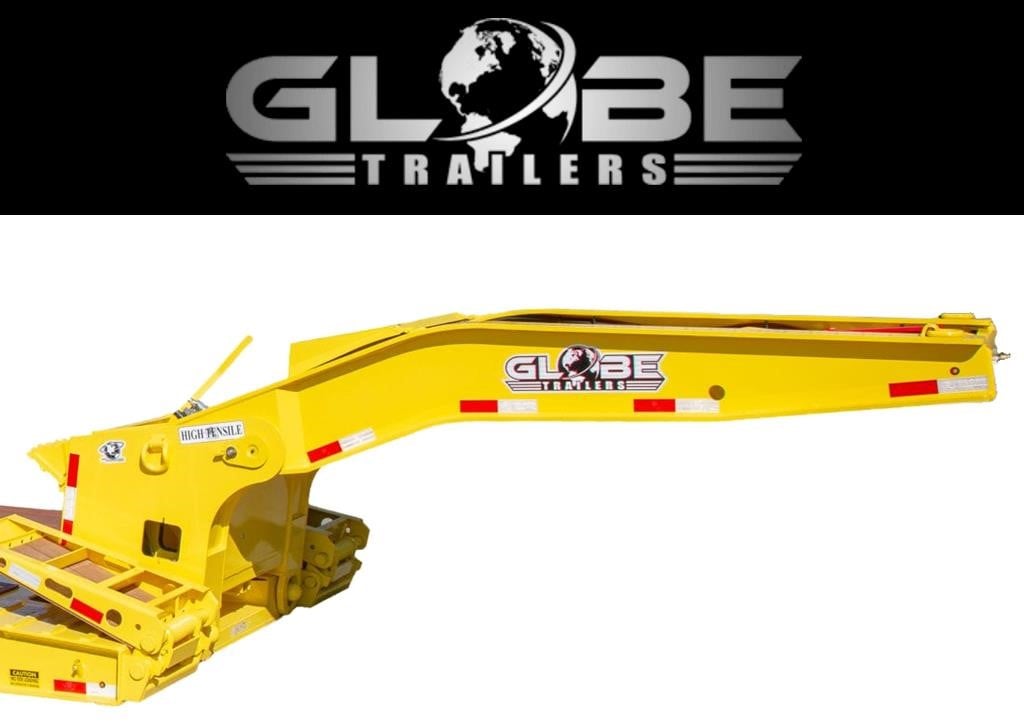

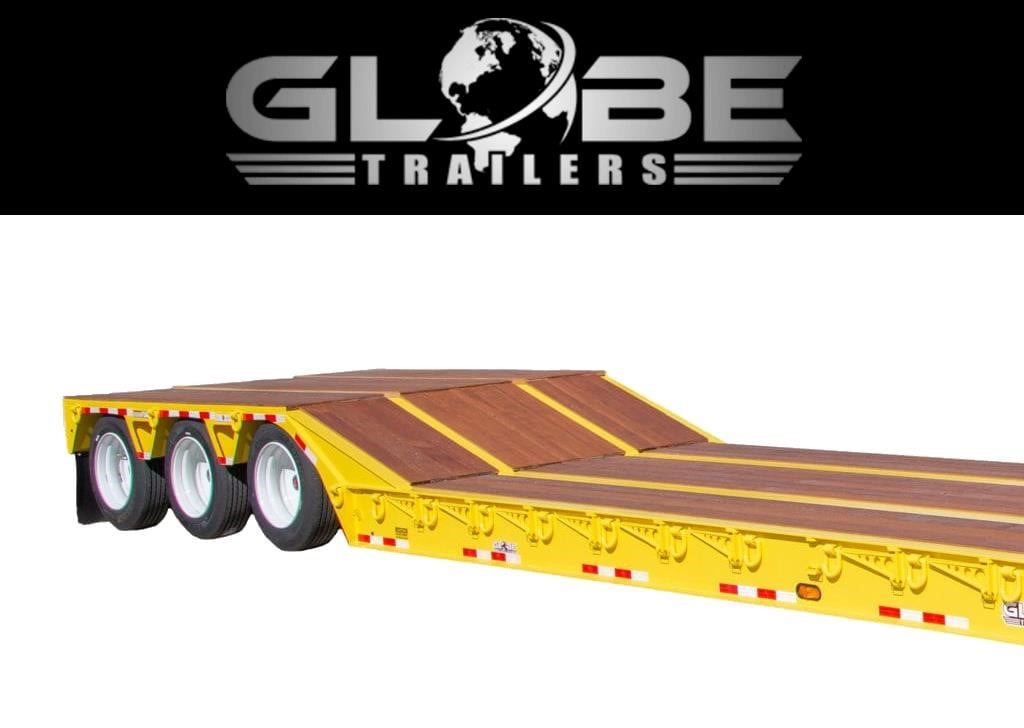

GTBN503-52-24-GG—GLOBE TRAILERS LOWBOY PAVER, 50 TON
3 AXLE, DETACHABLE NON GROUND BEARING, MAXIMUM PAYLOAD 100,000 LBS. All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
FEATURES & BENEFITS
HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry. Most competitors offer only a 5 year warranty. This shows how committed Globe Trailers is to its customers.
22” DECK HEIGHT
With a standard deck height of 22”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
STANDARD OUTRIGGERS
Standard removable outriggers.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.
CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
Similar models may be shown in addition to or in place of the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- Axles, Suspension, & Running Gear - No. of Axles: 3
- Axles, Suspension, & Running Gear - Axle Capacity: 25,000 lbs
- Dimensions - Approximate Weight:
- Gooseneck - Ride Height: 5-Position
- Main Deck - Side Rails: 16” T-1 Steel Std.
- Decking/Flooring - Wheel Covers: Apitong Covered
- Dimensions - Lower Deck Height: 22” loaded
- Rear Deck - Rear Well Style: Level -Flush Across Rear Deck
- Gooseneck - Swing Clearance: 98”
- Decking/Flooring - Well Decking: Apitong
- Electrical - Additional: Safety Night Light Package with Battery
- Main Deck - No. of D-Rings: 12 each side
- Electrical - Connector: 7 Way Connector
- Tires & Rims - Rims: 8.25 x 22.5 Hub Piloted Steel
- Main Deck - Spacing: 12”
- Gooseneck - King Pin Style: Fixed
- Main Deck - Crossmembers: 10” & 4”
- Hydraulics - 1: Wet Line Kit - Wing Nut Connection
- Dimensions - Overall Length: 51’ 9”
- Axles, Suspension, & Running Gear - Axle 3: Super Lift Type 30 Non-ABS
- Main Deck - Concentrated Load: 100,000 lbs in 12’
- Axles, Suspension, & Running Gear - Air Ride Adj.: Yes
- Axles, Suspension, & Running Gear - Axle 1: Fixed Type 30/30 ABS
- Finish - Flag Holders: Yes
- Finish - Sandblast & Powder Coat: Yes
- Dimensions - Trailer Model: GTBN503-52-24-GG
- Dimensions - Ground Clearance: 6”
- Axles, Suspension, & Running Gear - Axle Spacing: 49”
- Electrical - Lights: LED Plus 2 - Rear Strobes
- Axles, Suspension, & Running Gear - Suspension: Air Ride Suspension - 25K

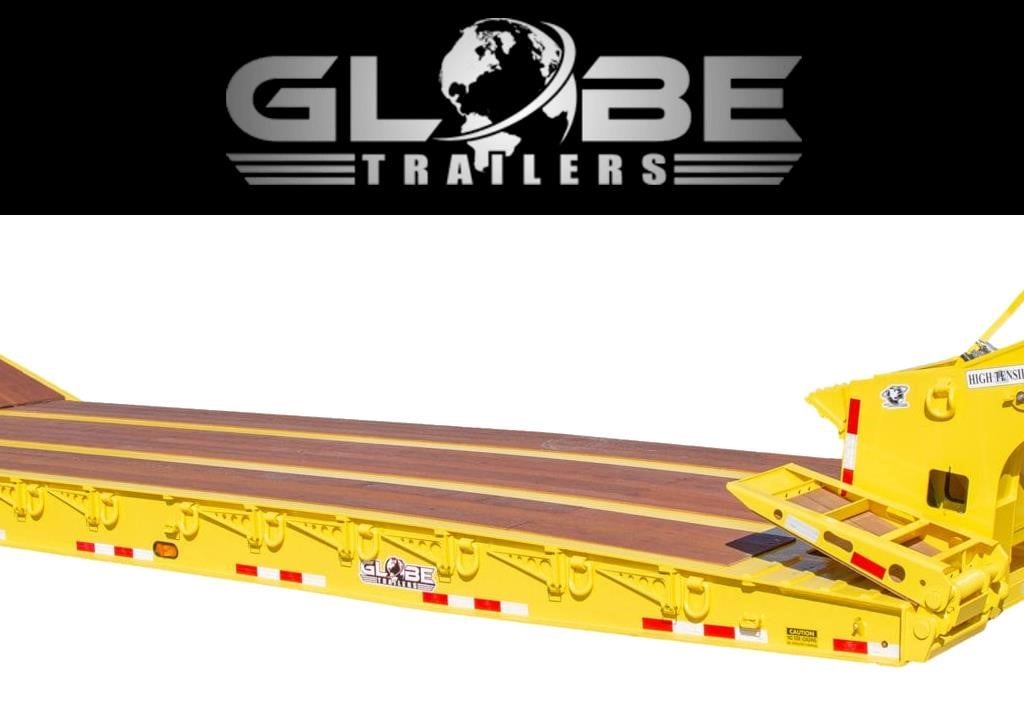

- Main Deck - Front Ramps: Paver ramps.
- Dimensions - Lower Deck Length: 24’
- Axles, Suspension, & Running Gear - Brakes: 16 ½” x 7” - 25K
- Axles, Suspension, & Running Gear - Axle 2: Fixed Type 30/30 ABS
- Tires & Rims - Tires: 255/70R x 22.5 “H”
- Hydraulics - 2:
- Dimensions - Rear Deck Height: 42 ⅝”
- Rear Deck - No. of D-Rings: 2 each side
- Dimensions - Rear Deck Length: 15’ 10”
- Gooseneck - Additional: Lockable toolbox in gooseneck base
- Main Deck - Outriggers: Removable Standard
- Main Deck - Main Beam: 16” T-1 Steel Standard
- Dimensions - Overall Width: 8’ 6”
- Rear Deck - Additional: Oversize Load sign mounted into stake pockets on rear deck
- Gooseneck - King Pin Setting: 16”
- Decking/Flooring - Main Decking: 1.75 Apitong Full Width
- Main Deck - Centers: 40”
- Dimensions - Gooseneck Length: 12’ 1”
- Gooseneck - 5th Wheel Height: 50”
- Rear Deck - Riser: 3: 1 Ratio on Riser 54” Transition
- Axles, Suspension, & Running Gear - ABS: 4S2M
- Axles, Suspension, & Running Gear - Auto Dump: Yes
- Finish - Mud Flaps & Reflective Tape: Yes
- Gooseneck - King Pin: 2”
