GLOBE TRAILERS LOWBOY, 55 TON — GTBN553-58-30-HGG-EX
3+1 AXLE, DETACHABLE NON GROUND BEARING, MAXIMUM PAYLOAD 110,000 LBS.
All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
FEATURES & BENEFITS
HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry. Most competitors offer only a 5 year warranty. This shows how committed Globe Trailers is to its customers.
22” DECK HEIGHT
With a standard deck height of 22”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
FLIP AXLE
Globe Trailers has a patent on the hydraulic flip axle design. It allows for less down time when operating the flip axle and it can be easily detached when required.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
12” CROSS MEMBER SPACING
Standard 12” stubbed cross member spacing produces added strength to the trailer and also less stress on the decking, leading to a longer life of the decking material.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
AIR BAGS
30K pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.
STANDARD OUTRIGGERS
Standard removable outriggers.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

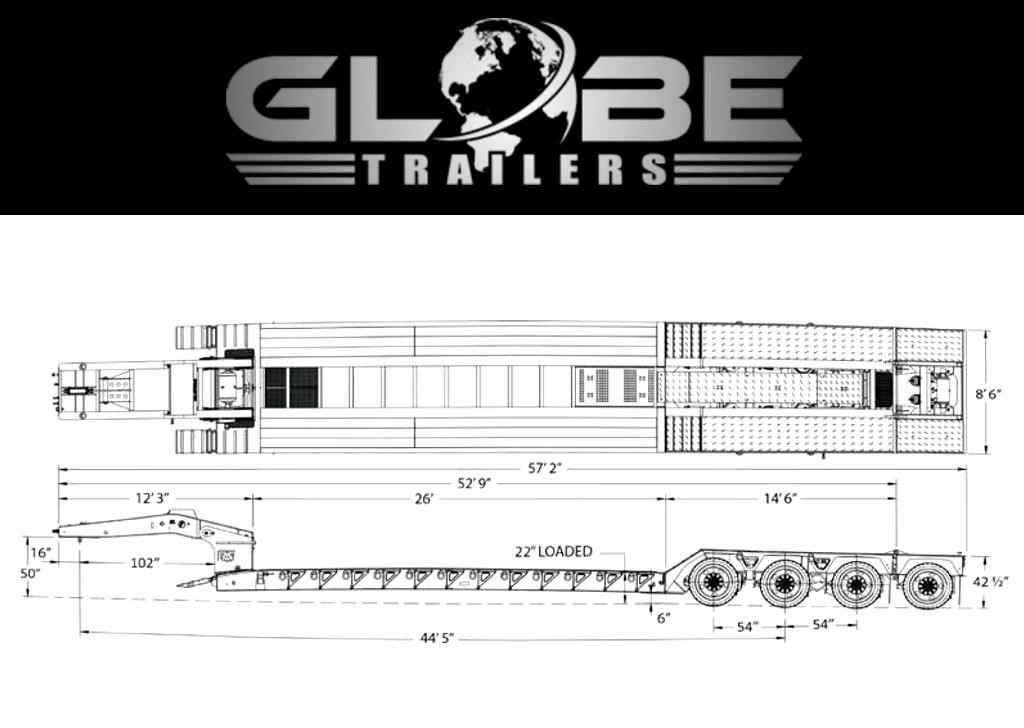

- Main Deck - Crossmembers: 10” & 4”
- Rear Deck - Rear Well Style: Boom & Bucket Well
- Rear Deck - No. of D-Rings: 2 each side, 2 on Bumper
- Dimensions - Lower Deck Length: 26’
- Dimensions - Approximate Weight:
- Rear Deck - Riser: 35° Rear Bridge Ramp
- Finish - Flag Holders: Yes
- Gooseneck - King Pin: 2”
- Dimensions - Rear Deck Length: 14’ 6”
- Axles, Suspension, & Running Gear - Suspension: Air Ride Suspension - 25K
- Dimensions - Overall Length: 57’ 2”
- Dimensions - Overall Width: 8’ 6”
- Main Deck - No. of D-Rings: 12 each side
- Decking/Flooring - Wheel Covers: Steel Covered D-Plate
- Main Deck - Concentrated Load: 110,000 lbs in 12’
- Axles, Suspension, & Running Gear - Brakes: 16 ½” x 7” - 25K
- Main Deck - Spacing: 12”
- Gooseneck - Fenders:
- Decking/Flooring - Main Decking: 1.75” Apitong Open Center
- Dimensions - Ground Clearance: 6”
- Decking/Flooring - Well Decking: Removable D-Plate - Full Length
- Hydraulics - 2: 13HP Honda - Gas
- Tires & Rims - Rims: 8.25 x 22.5 Hub Piloted Outer Aluminum
- Main Deck - Outriggers: Full Height Removable
- Axles, Suspension, & Running Gear - ABS: 2S1M
- Axles, Suspension, & Running Gear - Axle Capacity: 25,000 lbs
- Axles, Suspension, & Running Gear - No. of Axles: 3+1
- Gooseneck - King Pin Style: Fixed
- Finish - Mud Flaps & Reflective Tape: Yes
- Axles, Suspension, & Running Gear - Additional: Auto Dump
- Dimensions - Gooseneck Length: 12’ 3”
- Axles, Suspension, & Running Gear - Axle 3: Super Lift Type 30 Non-ABS
- Rear Deck - Flip: Set up for hydraulic powered flip
- Main Deck - Front Ramps: Steel, 18” x 31” Standard
- Gooseneck - Ride Height: 5-Position
- Gooseneck - 5th Wheel Height: 50”
- Gooseneck - Swing Clearance: 102"
- Dimensions - Trailer Model: GTBN553-58-30-HGG-EX
- Hydraulics - 1: Wet Line Kit - Wing Nut Connection
- Dimensions - Lower Deck Height: 22” loaded
- Electrical - Additional: Safety Night Light Package w/ Battery
- Finish - Sandblast & Powder Coat: Yes
- Axles, Suspension, & Running Gear - Axle 1: Fixed Type 30/30 Non-ABS
- Axles, Suspension, & Running Gear - Axle Spacing: 54”
- Tires & Rims - Tires: 275/70R x 22.5 “H”
- Main Deck - Centers: 40”
- Main Deck - Side Rails: 16” T-1 Steel
- Dimensions - Rear Deck Height: 42 ½”
- Axles, Suspension, & Running Gear - Axle 2: Fixed Type 30/30 ABS
- Main Deck - Main Beam: 16” T-1 Steel Standard
- Electrical - Connector: 7 Way Connector
- Electrical - Lights: LED Plus 2 - Rear Strobes
- Gooseneck - King Pin Setting: 16”
- Axles, Suspension, & Running Gear - Axle 4: Hydraulic Flip Type 30 Non-ABS
