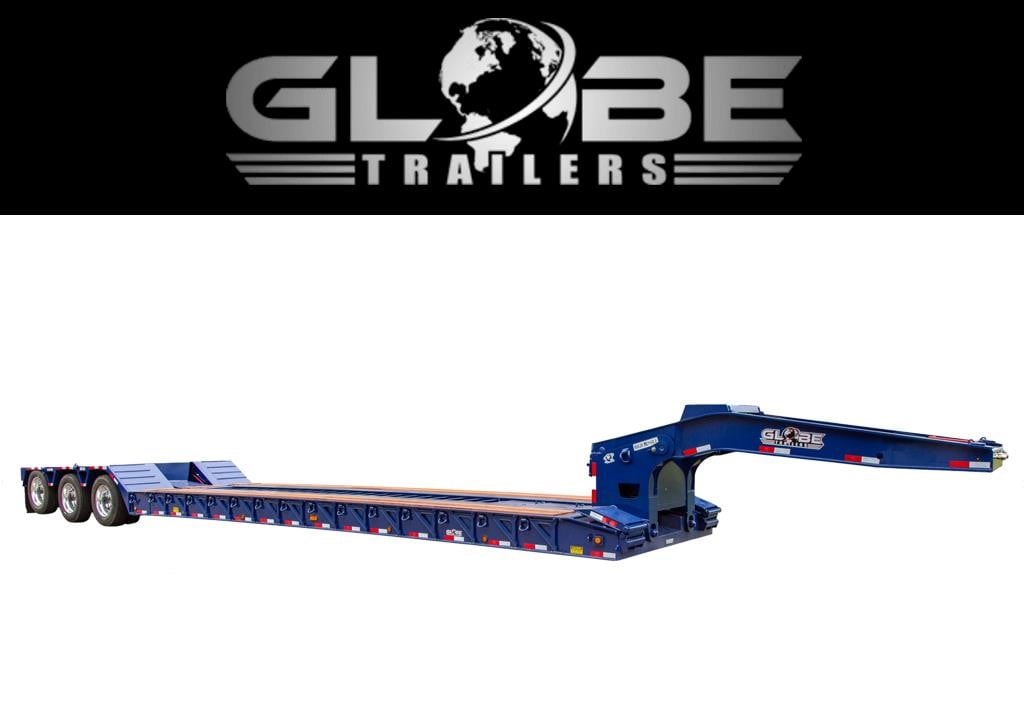

GLOBE TRAILERS LOWBOY, 55 TON — MODEL GTBN553-53-26-HGG
3 AXLE, DETACHABLE NON GROUND BEARING, MAXIMUM PAYLOAD 110,000 LBS.
All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
FEATURES & BENEFITS

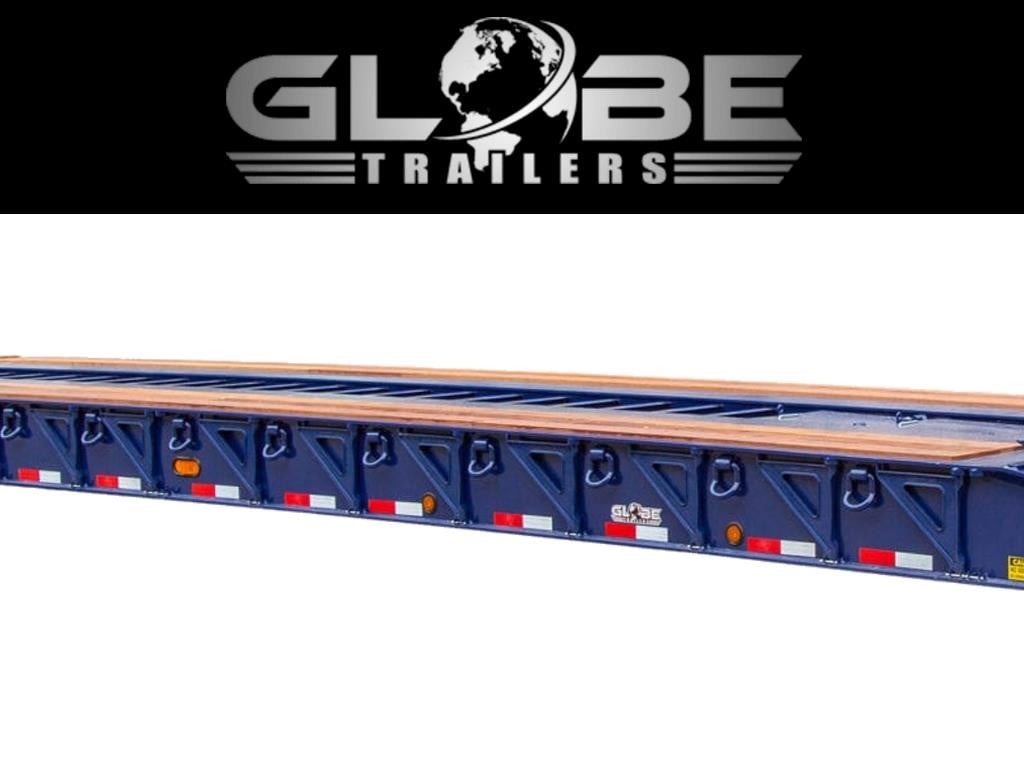

HIGH QUALITY STEEL
Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
WARRANTY
Globe Trailer’s 10 year structural warranty on all lowboys is the best in the industry. Most competitors offer only a 5 year warranty. This shows how committed Globe Trailers is to its customers.
18” DECK HEIGHT
With a standard deck height of 18”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
ADDED SECURITY
Globe Trailers air lock with safety bar and spring extended pin ensures that the gooseneck locking pin will remain secured even if air pressure is lost.
12” CROSS MEMBER SPACING
Standard 12” stubbed cross member spacing produces added strength to the trailer and also less stress on the decking, leading to a longer life of the decking material.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
AIR BAGS
30K pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil and UV rays.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
MULTI POSITION RIDE HEIGHT
Multi Position Ride Height options. Makes adjustments for various 5th wheel heights easy and allows for larger ground clearance or lower deck height.
CENTRALLY LOCATED FITTINGS
Air, electric and hydraulic (when applicable) fittings are all centrally located at the base of the gooseneck inside a bolster. This makes for quick and easy connect and disconnect. The fittings are protected from possible contact with equipment being loaded or unloaded.

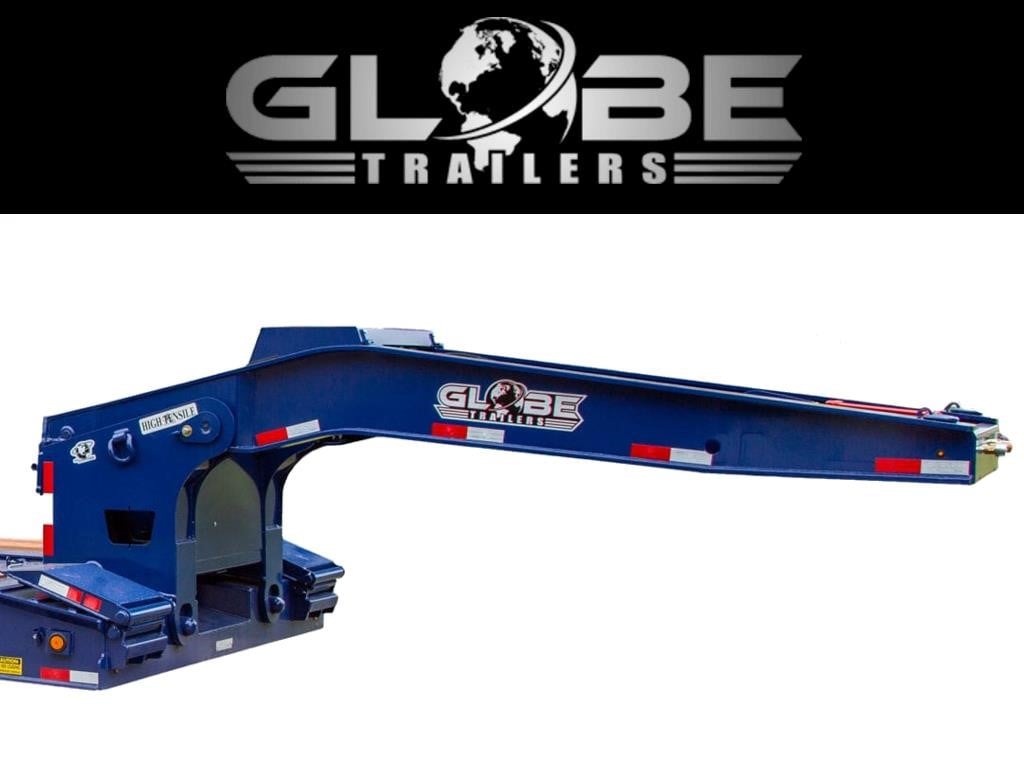

V-STYLE GUIDE
V-Style guide with front tapered beams helps position the gooseneck locking pin, which makes hooking up to a Globe Trailer fast and easy. The locking pin guide rim helps prevent the gooseneck locking pin from coming loose in transit.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
- Electrical - Connector: 7 Way Connector
- Main Deck - No. of D-Rings: 12 each side
- Tires & Rims - Rims: 8.25 x 22.5 Hub Piloted Outer Aluminum
- Main Deck - Main Beam: 12” T-1 Steel
- Rear Deck - Flip: Set up for flip 4 pin design
- Main Deck - Concentrated Load: 110,000 lbs in 12’
- Finish - Mud Flaps & Reflective Tape: Yes
- Decking/Flooring - Main Decking: 1.75” Apitong - Open Center
- Axles, Suspension, & Running Gear - No. of Axles: 3
- Decking/Flooring - Wheel Covers: Steel Covered D-Plate
- Gooseneck - Additional:
- Hydraulics - 2: 13 HP Honda - Gas
- Finish - Flag Holders: Yes
- Axles, Suspension, & Running Gear - Axle Capacity: 25,000 lbs
- Main Deck - Side Rails: 12” T-1 Steel
- Gooseneck - Fenders:
- Main Deck - Spacing: 12”
- Gooseneck - King Pin Setting: 14” & 26”
- Axles, Suspension, & Running Gear - Brakes: 16 ½” x 7” - 25K
- Gooseneck - Swing Clearance: 98” & 86”
- Axles, Suspension, & Running Gear - Axle 2: Fixed Type 30/30 ABS
- Axles, Suspension, & Running Gear - Axle 1: Fixed Type 30/30 Non-ABS
- Dimensions - Approximate Weight:
- Gooseneck - 5th Wheel Height: 50”
- Rear Deck - No. of D-Rings: 2 each side
- Axles, Suspension, & Running Gear - Suspension: Air Ride Suspension - 25K
- Main Deck - Centers: 41” Standard
- Main Deck - Crossmembers: 8”
- Electrical - Lights: LED, (4) Rear Lights, Stop, Turn, Stop, Strobe
- Axles, Suspension, & Running Gear - ABS: 2S1M
- Axles, Suspension, & Running Gear - Axle 4:

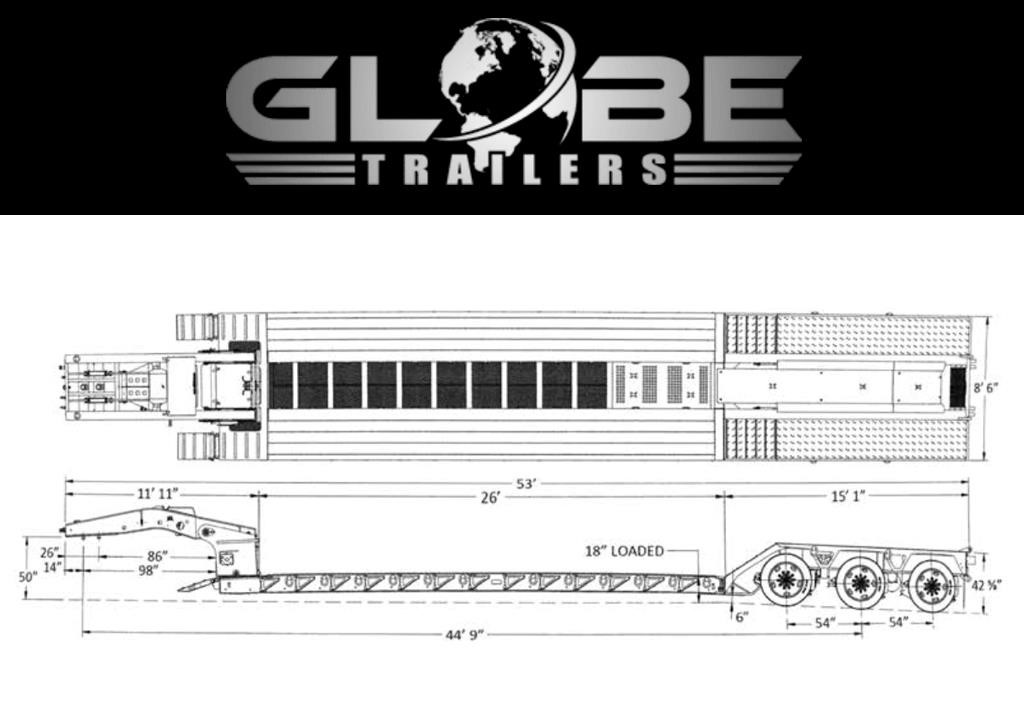

- Dimensions - Lower Deck Height: 18”
- Dimensions - Rear Deck Length: 15’ 1”
- Rear Deck - Riser: 35° Rear Bridge Ramp
- Gooseneck - King Pin Style: 2-Position Removable
- Axles, Suspension, & Running Gear - Axle 3: Super Lift Type 30 Non-ABS
- Dimensions - Ground Clearance: 6”
- Dimensions - Gooseneck Length: 11’ 11”
- Main Deck - Outriggers: Full Height Removable
- Axles, Suspension, & Running Gear - Additional: Auto Dump
- Main Deck - Front Ramps: Steel, 18” x 31” Standard
- Gooseneck - Ride Height: 5-Position
- Dimensions - Overall Width: 8’ 6”
- Axles, Suspension, & Running Gear - Axle Spacing: 54”
- Dimensions - Trailer Model: GTBN553-53-26-HGG
- Dimensions - Lower Deck Length: 26’
- Tires & Rims - Tires: 255/70R x 22.5 “H”
- Gooseneck - King Pin: 2”
- Decking/Flooring - Additional: Expanded Metal Throughout Center of Trailer
- Dimensions - Overall Length: 53’
- Decking/Flooring - Well Decking: Removable V-Style - Full Length
- Electrical - Additional: Neck Light Package & Safety Package
- Hydraulics - 1: Wet Line Kit - Wing Nut Connection
- Rear Deck - Rear Well Style: Boom & Bucket V-Style
- Finish - Sandblast & Powder Coat: Yes
- Dimensions - Rear Deck Height: 42 ⅝”
