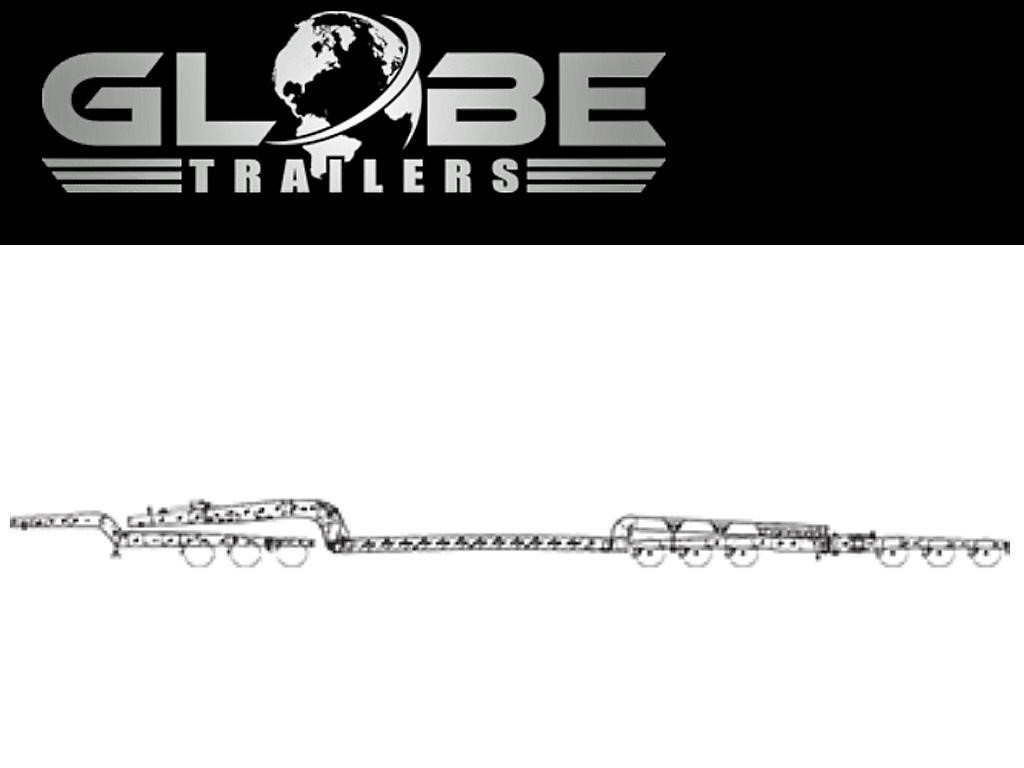

GLOBE TRAILERS – 80LB11204 – 80 TON LOWBOY
24” DECK HIEGHT
With a standard deck height of 24”, Globe Trailers have lower overall height, which allows taller loads to be hauled.
COLOR OPTIONS
Globe Trailers can powder coat to the color of your choice.
HIGH QUALITY STEEL
Constructed with 100,000 psi yield strength steel for the side rails and main beams. The high tensile steel ensures the designed camber is retained, and allows for a longer product service life.
AIR BAGS
30,000 pound rated large diameter air bags are standard. This allows for lower operating pressure and higher capacity when needed.
LIGHTING SYSTEM
All Lighting is LED and mounted in rubber grommets to DOT standards.
WHEEL OPTIONS
All Globe trailers come with standard HUB piloted disc wheels. Wheel are also available in all Aluminum or Outer Aluminum.
DECKING OPTIONS
• Oak: Standard.
• Apitong: Best strength to weight ratios of natural woods.
• Rumber: Composite which is impervious to fluids, mud, oil, and UV rays.
STEMCO WHEEL WARRANTY
5 year wheel end warranty. Gaurdian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.
CENTRALLY LOCATED FITTINGS
Air and Electric fittings are all centrally located at the base of the gooseneck. This makes for a quick and easy connect and disconnect.
COLOR CODED HOSES
Color coded air hoses allow for easy trouble shooting and maintenance.
POWDERCOATED
All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
- GOOSENECK - 5th Wheel Height: 50"
- REAR DECK - Riser: 90° Rear Bridge Ramp
- MAIN DECK - Main Beam: 18” T-1 Steel
- REAR DECK - Rear Deck Beam: 16” T-1 Steel
- DECKING/FLOORING - Well Decking: Open
- TIRES & RIMS - Rims: 8.25 x 22.5 Hub Piloted All Aluminum
- MAIN DECK - # of D-Rings: 13 Per Side
- AXLES, SUSPENSION, & RUNNING GEAR - Ridewell Air Ride Suspension: 25K
- FINISH - Mud Flaps & Reflective Tape :
- GOOSENECK - King Pin: 2” Removable
- AXLES, SUSPENSION, & RUNNING GEAR - Axle 2: Fixed Type 30/30 Non-ABS
- AXLES, SUSPENSION, & RUNNING GEAR - Axle Track: 77 1/2”
- AXLES, SUSPENSION, & RUNNING GEAR - Brakes: 16 1/2” x 7” - 25K
- GOOSENECK - King Pin Setting: 16” & 28”
- TIRES & RIMS - Tires: 275/70R x 22.5 “H” Michelin
- GOOSENECK - King Pin Style: 2-Position Removable
- SPECIFICATIONS - Rear Deck Length: 23’ 2” (278”)
- FINISH - Sandblast & Powder Coat (Black):
- AXLES, SUSPENSION, & RUNNING GEAR - Dual Air Ride: Adjustable
- REAR DECK - Set Up for: 3+2 or 3+3 axle stinger, Pin on rear deck shimable
- MAIN DECK - Front Ramps: Steel 18” x 31”
- DECKING/FLOORING - Wheel Covers: Steel Covered S-Plate
- MAIN DECK - Crossmembers: 7"
- SPECIFICATIONS - Lower Deck Length: 28’ (336”)
- REAR DECK - Rear Well Style : Boom & Bucket Well
- FINISH - Flag Holders (4):
- SPECIFICATIONS - Gooseneck Legth: 15’ 7” (187”)
- MAIN DECK - Centers: 41” Standard
- SPECIFICATIONS - Rear Deck Height: 46.5”
- SPECIFICATIONS - Overall Width: 8’ 6” (102”)
- AXLES, SUSPENSION, & RUNNING GEAR - Axle Spacing: 60"
- GOOSENECK - Ride Height: 5-Position
- ELECTRICAL - Lights: LED Plus 2 - Rear Strobes
- AXLES, SUSPENSION, & RUNNING GEAR - # of Axles: 3
- GOOSENECK - Swing Clearance: 114”, 126”, 229”
- HYDRAULICS - Wet Line Kit: Quick Coupler Connection
- ELECTRICAL - Additional : Neck Light Package w/Back Ups
- AXLES, SUSPENSION, & RUNNING GEAR - Dump: Manual
- MAIN DECK - Side Rails: 18” T-1 Steel
- GOOSENECK - Flip Box: 99"
- AXLES, SUSPENSION, & RUNNING GEAR - Axle Capacity: 25,000lbs
- ELECTRICAL - Connector: 7 Way Connector
- SPECIFICATIONS - Overall Length: 66’ 9” (801”)
- REAR DECK - # of D-Rings: 2 Per Side
- AXLES, SUSPENSION, & RUNNING GEAR - Axle 3: Fixed Type 30 Non-ABS
- AXLES, SUSPENSION, & RUNNING GEAR - Axle 1: Fixed Type 30 Non-ABS
- SPECIFICATIONS - Ground Clearance: 6"
- MAIN DECK - Spacing: 24"
