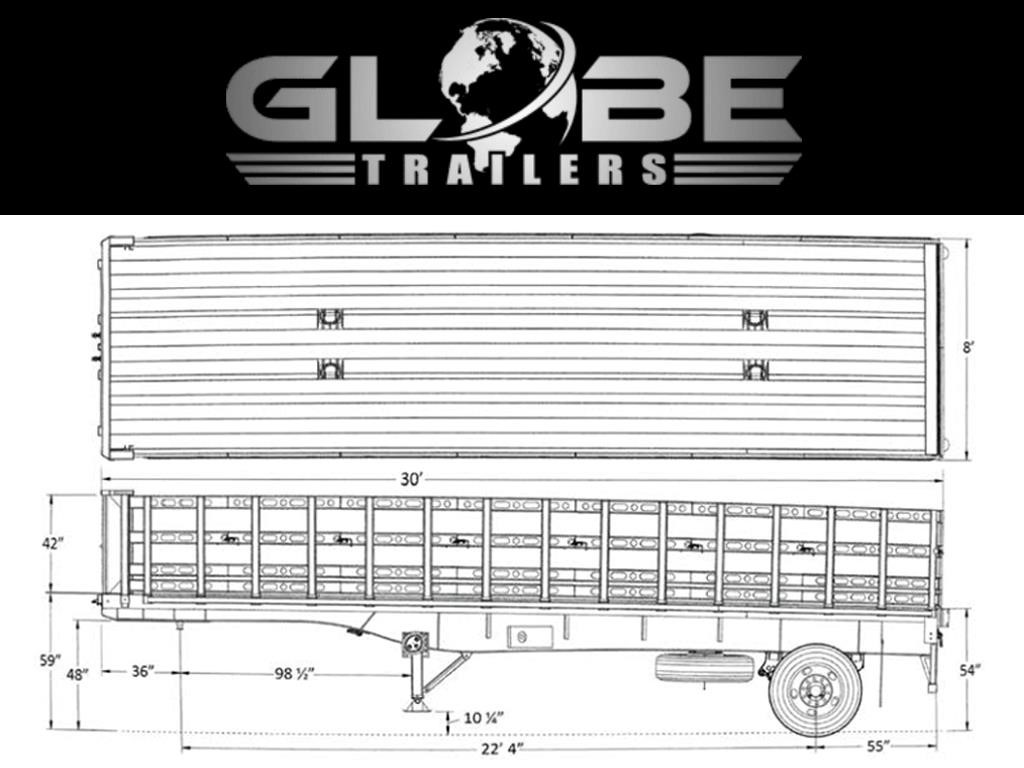

12FB471398 — 12 TON FLATBED

FEATURES & BENEFITS

HIGH QUALITY STEEL

Constructed with T-1 100K PSI yield strength Steel. The High Tensile Steel ensures the designed camber is retained, and allows for a longer product service life

STEMCO WHEEL WARRANTY

5 year wheel end warranty. Guardian wheel seals, Pro-Torq spindle nuts and Sentinel hub caps.

LANDING GEAR

2 speed Landing Gear, allows for 160,000 lbs static load.

REAR BUMPER

DOT certified rear under ride bumper with high visibility reflective tape and rubber docking bumpers.

DECKING OPTIONS

• Oak: Standard.

• Apitong: Best strength to weight ratios of natural woods.

• Rumber: Composite which is impervious to fluids, mud, oil, and UV rays.

COLOR OPTIONS

Globe Trailers can powder coat to the color of your choice

SUSPENSION

Heavy Duty tandem suspension.

WHEEL OPTIONS

All Globe trailers come with standard HUB piloted disc wheels. Wheels are also available in all Aluminum or Outer Aluminum

MOUNTED SPARE TIRE

Spare tire wheel assembly with basket carrier under chassis curbside.

WIDE TURN SIGNALS

Optional wide turn indicators available.

HEAD RACK

Optional detachable steel bulkhead, 48” high with optional work lights.

TIE DOWN RINGS

Tie down rings at rear on the bumper, and at front near the landing gear.

COLOR CODED HOSES

Color coded air hoses allow for easy trouble shooting and maintenance

RUB RAIL

2 ½” rolled formed steel. 6” Structural Channel @ 6.5 lbs/ft, 5/16” Thick Stake Pockets 1 5/8” x 3 ½” x ¼”, 24” O/C, ¼” x 3” Rub rail.

LIGHTING SYSTEM

All Lighting is LED and mounted in rubber grommets to DOT standards.

D RINGS

“D” ring tie downs on upper and lower deck with a design load of 15,000 lbs.

POLYURETHANE VS RUBBER BUSHING

• Reduced Maintenance – Increased Maintenance

• Increased Trailer Lifetime – Needs Replacement

• Increased Trailer Performance – Reduces Trailer Performance

• Weather Resistant – Damaged from Weather

FINISH

• Sandblast & Powder Coat

• Mud Flaps & Reflective Tape

OPTIONS

• Steel removable header rack 42” in height

• Spare tire wheel assembly with basket carrier under chassis curbside

• Removable stake bodies all sides

• Rubber bumpers on rear

POWDERCOATED

All Globe Trailers are 100% powder coat finished. The entire process takes place at Globe’s manufacturing facility. This eliminates the possibility of contamination occurring in transit between process phases. The process starts with sandblasting the trailer to near white, preheating the trailer steel in a dedicated, gas fired oven to optimum bonding temperature and applying an electrostatically charged zinc rich primer. The trailer then goes back in the oven to allow the primer to bond. After the primer has bonded, a top coat chosen from one of Globe Trailers’ 188 color options is applied before once more going back in the oven to cure. The result is a durable, easily cleaned finish that protects the trailer from corrosion and ensures a long service life.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
