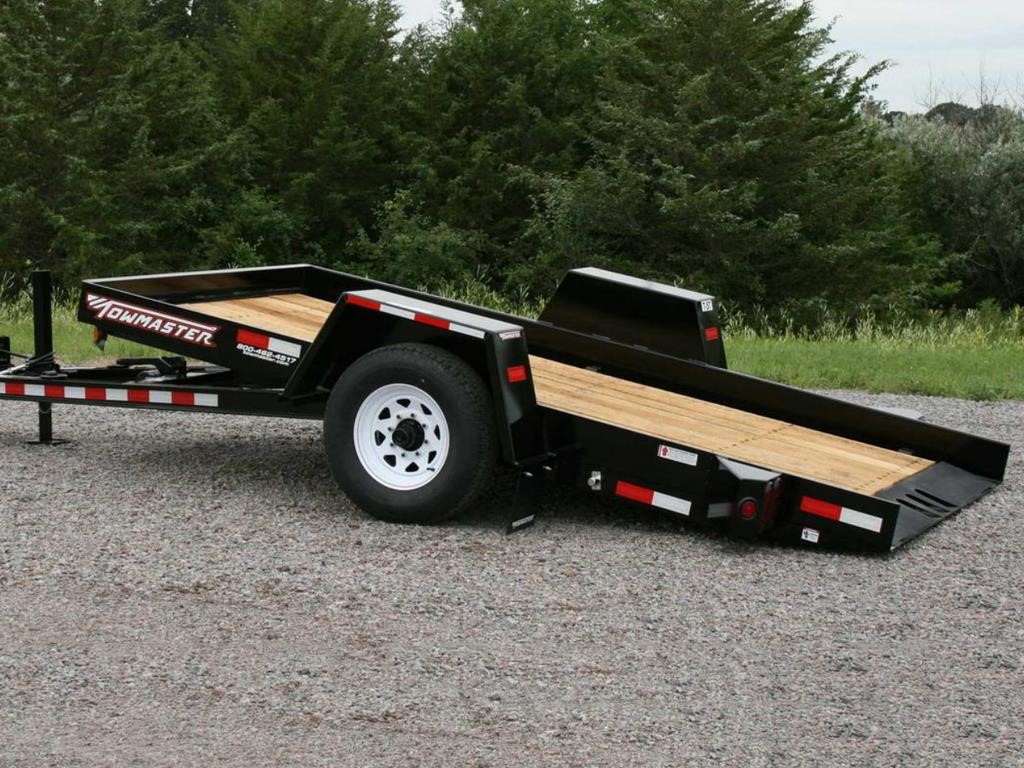

TOWMASTER — DROP DECK TILT TRAILER — T-6DT

The T-6DT is a pan type tilt-deck trailer designed for hauling small equipment. The deck features white oak wood and 7-inch high sides. The low deck height offers a shallow tilt angle that allows small equipment to easily climb the incline. For scissor lifts, an “SL” option adds ramps for an even lower load angle. The T-6DT features a rubber-ride axle for a smooth ride, electric brakes, an adjustable hitch, and a positive locking (over-center) latch system to safely keep the deck secured to the frame.

STANDARD FEATURES

• Adjustable height, bolt-on coupler

• 2.5″ pintle

• RV plug

• 7K bolt-on parking jack

• Battery break-away kit with tow charger & test light

• Safety chains with hooks

• 77″ load width, 14″ deck height (fully loaded)

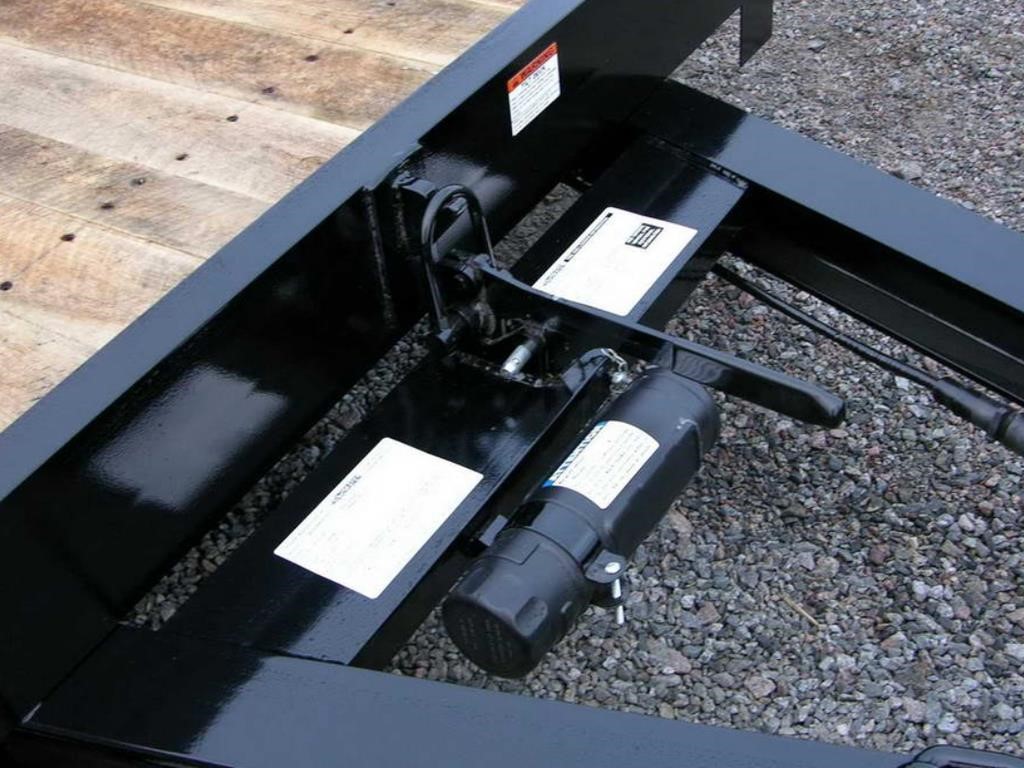

• Single-point deck lock

• 4″ I-beam main frame

• 3″ Jr. I-beam cross-members, 80,000 psi

• 2″ nominal white oak wood deck

• 7″ tall sides

• D-rings (3 per side)

• 12 ga. one-piece formed fender/panel

• Rubber-ride suspension axle

• 7,000 lb axle

• Tires – 235/85R16 load range F

• 16″ wheels, 8 bolt

• Electric brakes

• Forward self-adjusting brakes

• EZ Lube hubs

• Rubber Grommet mounted LED lights

• Sealed modular wiring

OPTIONS:

• Hydraulic surge brakes

• 3” pintle ring or 2-5/16” ball coupler

• Steel deck

• Deck cushion cylinder

• Additional tie-downs

• Spare tire and wheel with mount

• Tire upgrade, 235/85R16, 10-ply, load range G tires

• “SL” ramp option for hauling scissor lifts

• Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal

• Galvanizing

Specifications are subject to change without prior notice.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
