TOWMASTER — TRAILER — T-10DT

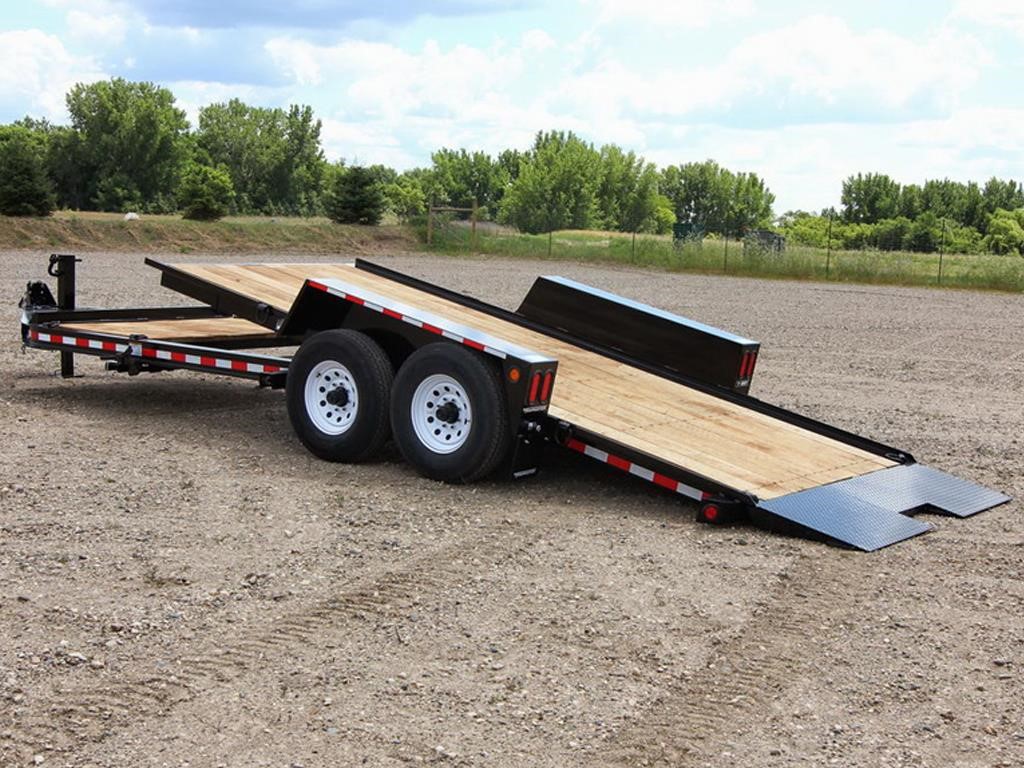

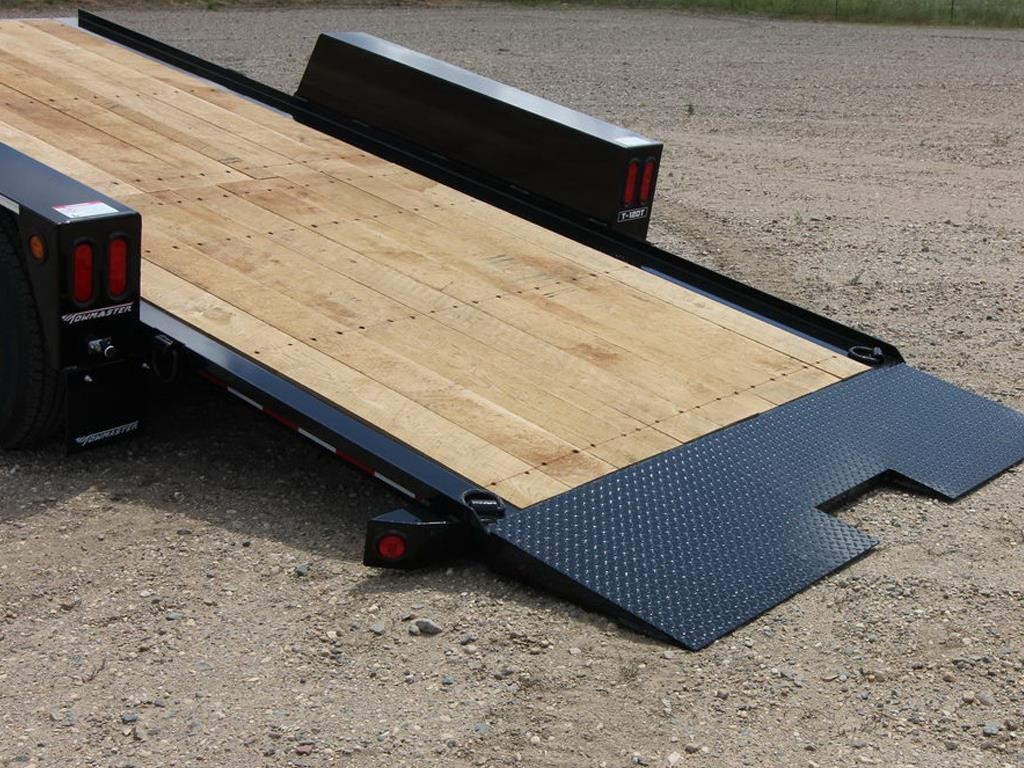

The Towmaster® drop-deck tilt trailers are popular with rental dealers and small contractors. There are no ramps to hassle with; simply tilt the deck and drive on or off. This trailer is built on our cold-formed I-beam tongue and main frame for tough durability. The tilt deck trailer features a single lever twin-latch system, knife-edge approach plate, rubber-ride axles and adjustable hitch. A deck cushion cylinder eases the deck back into transport position and prevents equipment from slamming the deck down.

STANDARD FEATURES

• Adjustable height bolt-on coupler

• 2.5″ pintle

• RV plug

• One-piece cold formed frame rails

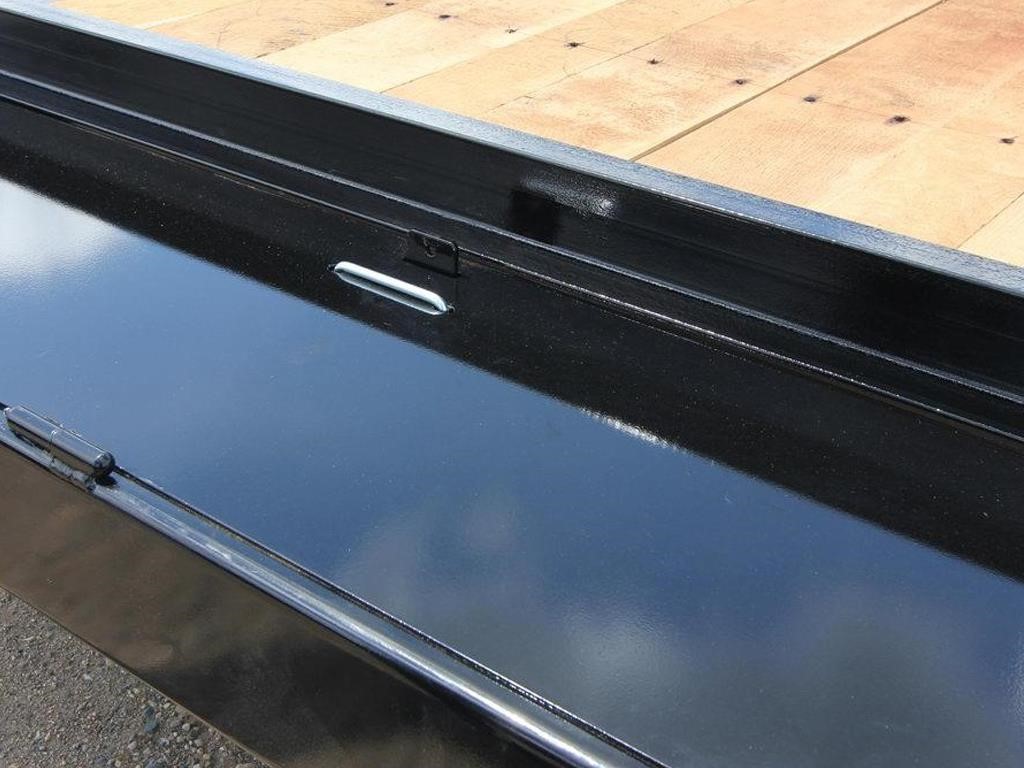

• Integrated storage tray

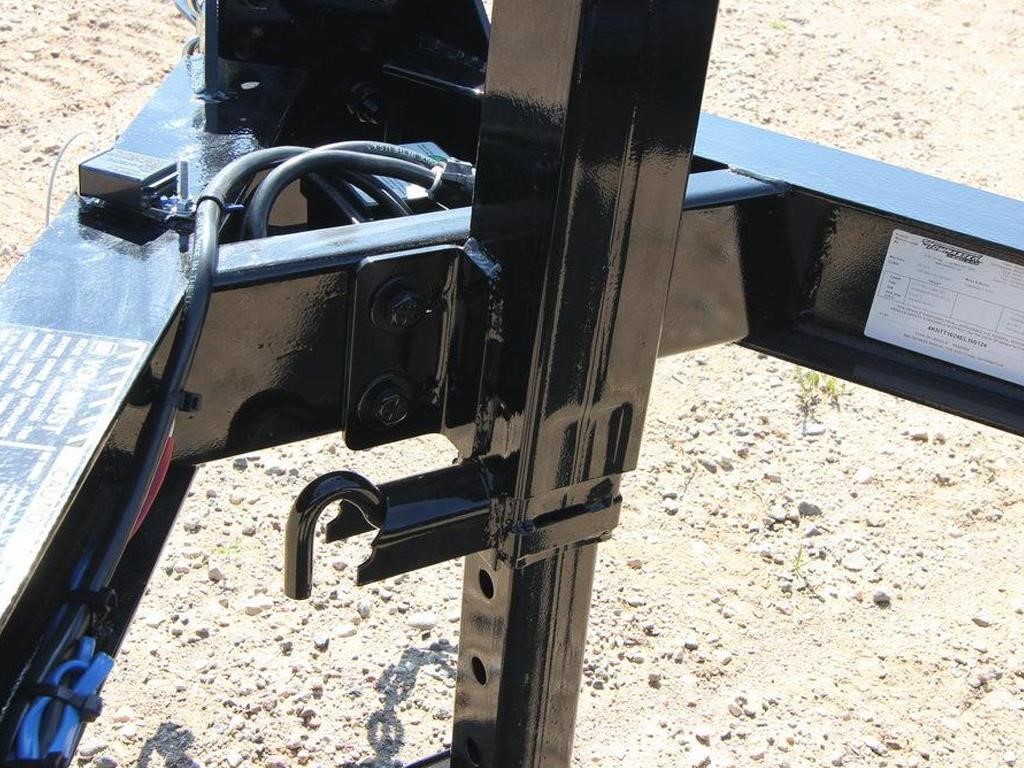

• 7K bolt-on top-wind parking jack (T-9DT & T-10DT)

• 12K side wind jack (T-12DT)

• Battery break-away kit with tow charger & test light

• Safety chains with hooks

• 82” load width, 19” deck height (fully loaded)

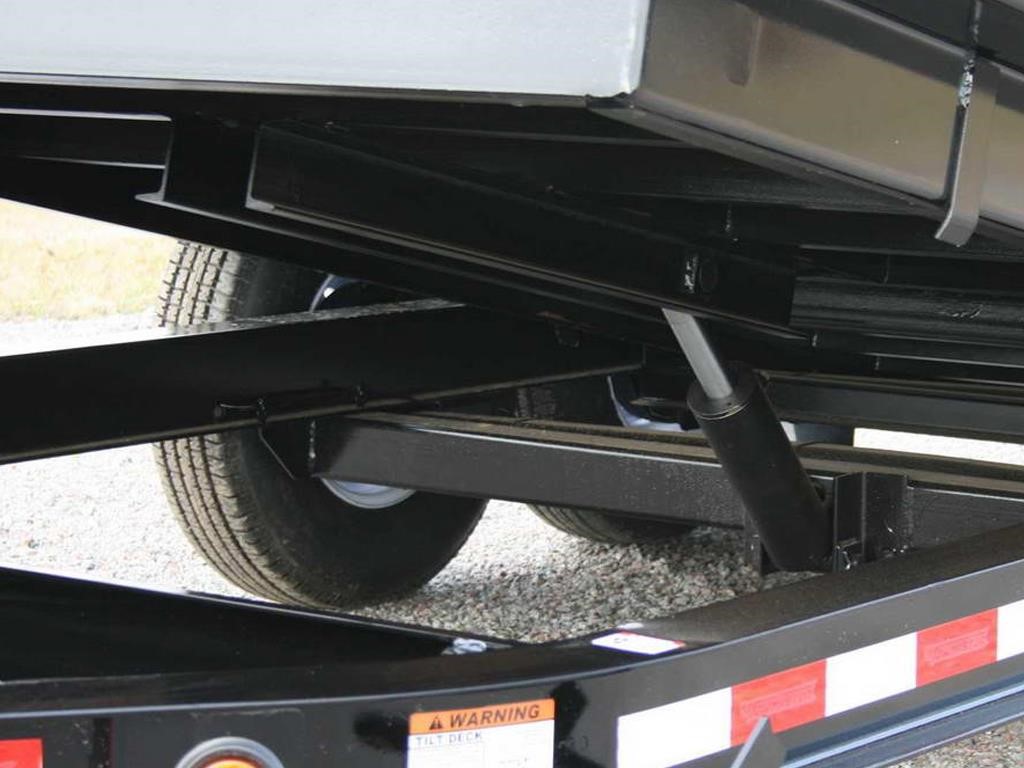

• Deck cushion cylinder

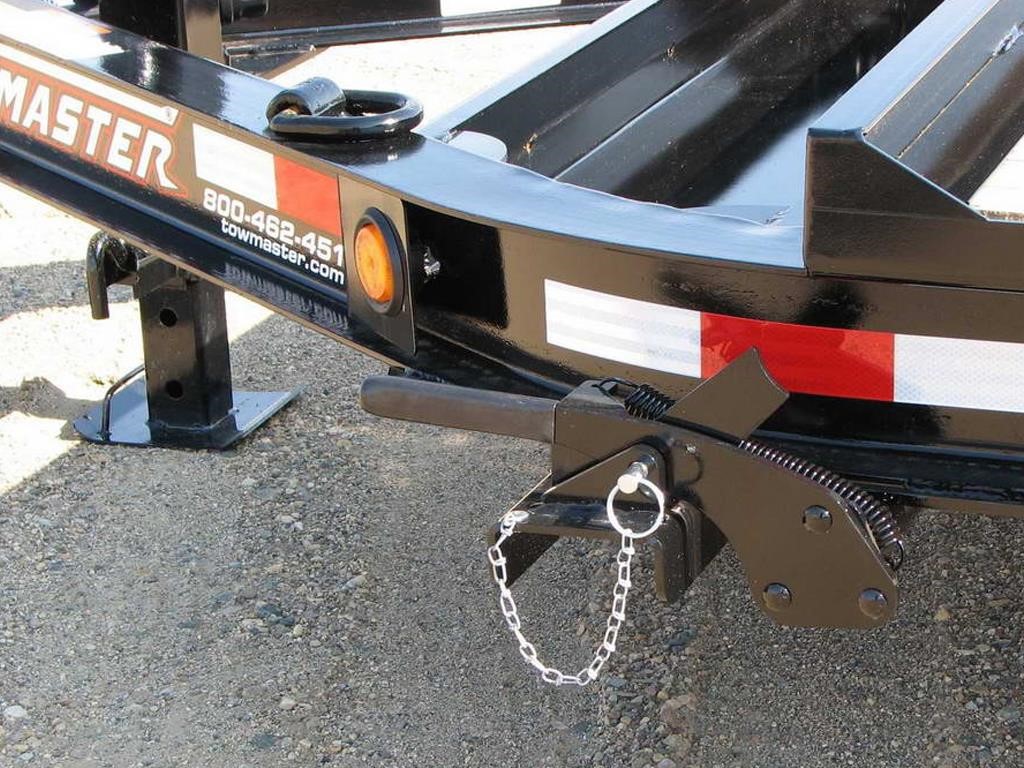

• Dual-point, single lever deck lock

• 6” I-beam main frame

• 3” channel crossmembers

• 2” nom. white oak deck

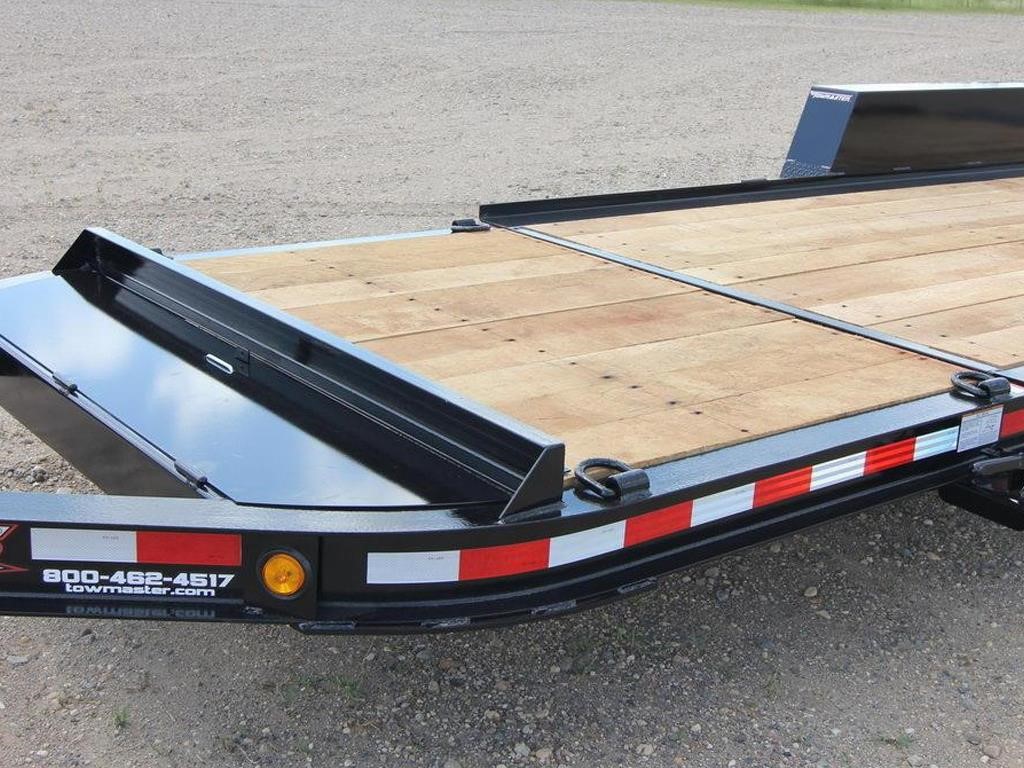

• D-ring tie-downs (4 per side)

• 12 ga one-piece formed fender/panel

• Rubber-ride suspension axles

• (2) 7,000 lb. axles (4 wheels)

• Tires – 235/85R16, load range F, 10-ply

• 16” wheels, 8-bolt

• Electric brakes

• Forward self-adjusting brakes

• EZ Lube hubs

• Rubber grommet mounted LED lights

• Sealed modular wiring

• 13°/12°/11° load angle

• Limited Lifetime Frame Warranty

• One-Year full Warranty

• 10 Year Suspension Warranty

• Weatherproof registration holder

• Two-component polyurethane primer and paint

• Trailer color: Equipment Black

OPTIONS

• Hydraulic surge brakes

• 3” pintle ring or 2-5/16” ball coupler

• 4-foot stationary deck

• Gooseneck hitch

• Storage tray lid

• Pallet fork holders

• 8K electric winch

• Additional tie-downs

• Spare tire and wheel mount

• Spare tire and wheel

• Color options: Construction Yellow, Equipment Red, Equipment Blue, Equipment Charcoal

• Galvanizing

Specifications are subject to change without prior notice.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
