More than 60 years in the making, Volvo is proud to introduce the next generation compact loader. These versatile machines are a powerful asset on every job site in every application.

Breakout force: 13,938 lbf
Operating weight: 19,114 lbs
Fork payload 80%: 7,782 lbs
Max torque ISO 9249, SAE J1349 net: 306.8 lbf ft
Bucket capacity: 1.83 yd³
Hydraulic lifting capacity, max: 15737 lbf
...at full turn: 40 degree
Tipping load (ISO/DIS 14397-1): 11,662 lbs
Maximum travel speed - Standard: 12 mph
Engine gross power: 100.5 hp

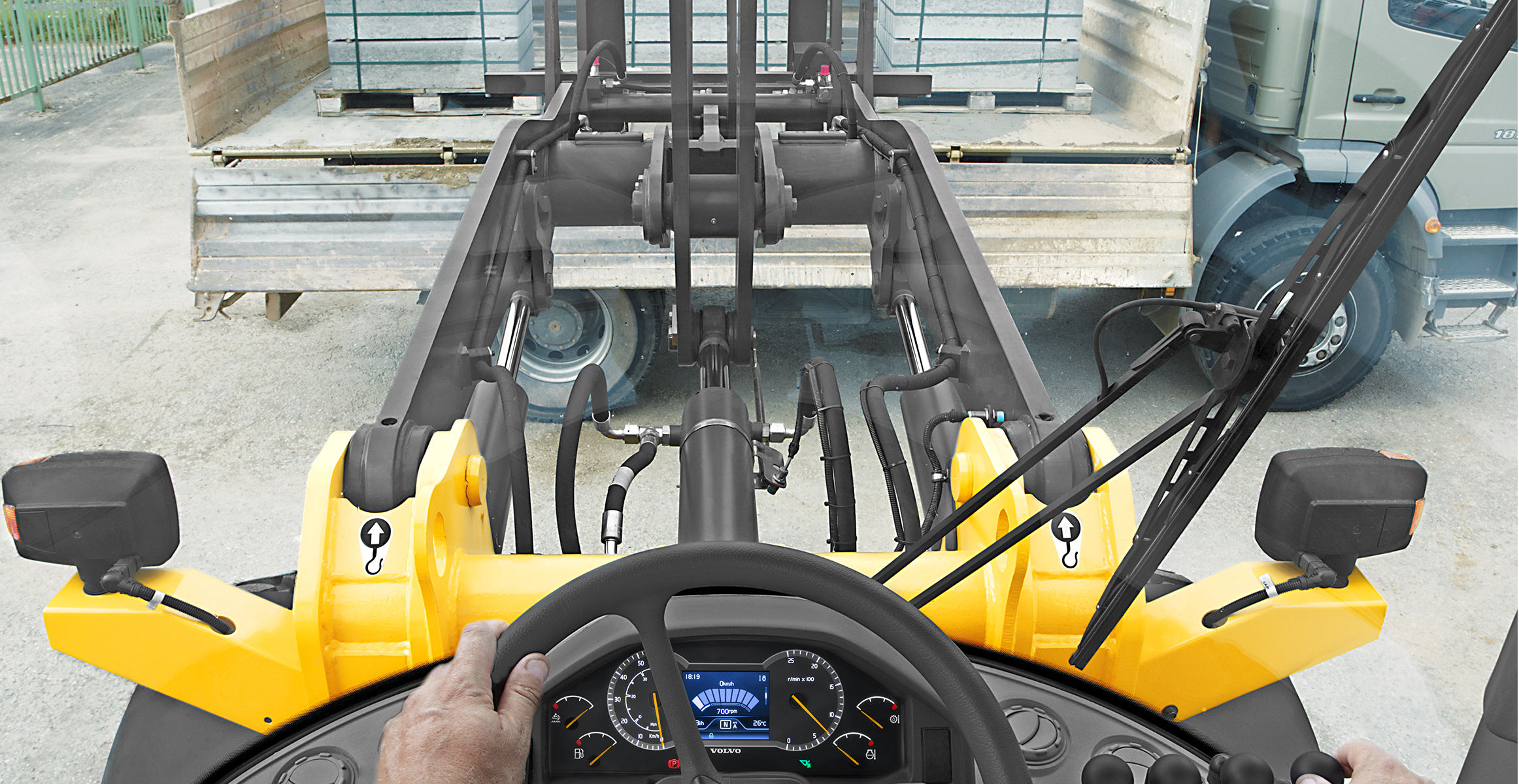

The certified ROPS/FOPS cab features ergonomically placed controls, a superior control system, all-around visibility and low internal noise levels.

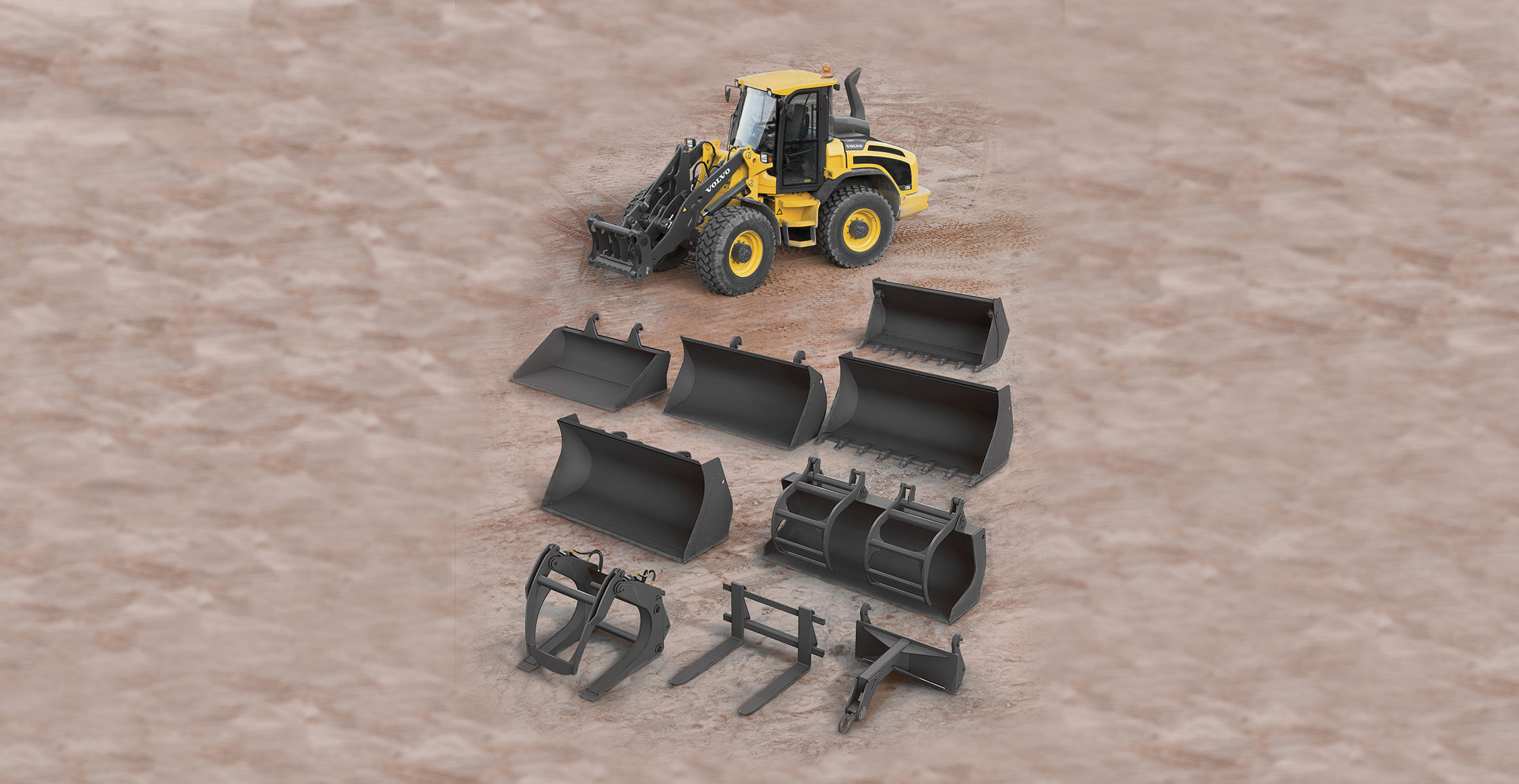

Volvo's wide range of high quality attachments are perfectly matched to the machine's linkage, hydraulics and driveline to increase productivity.

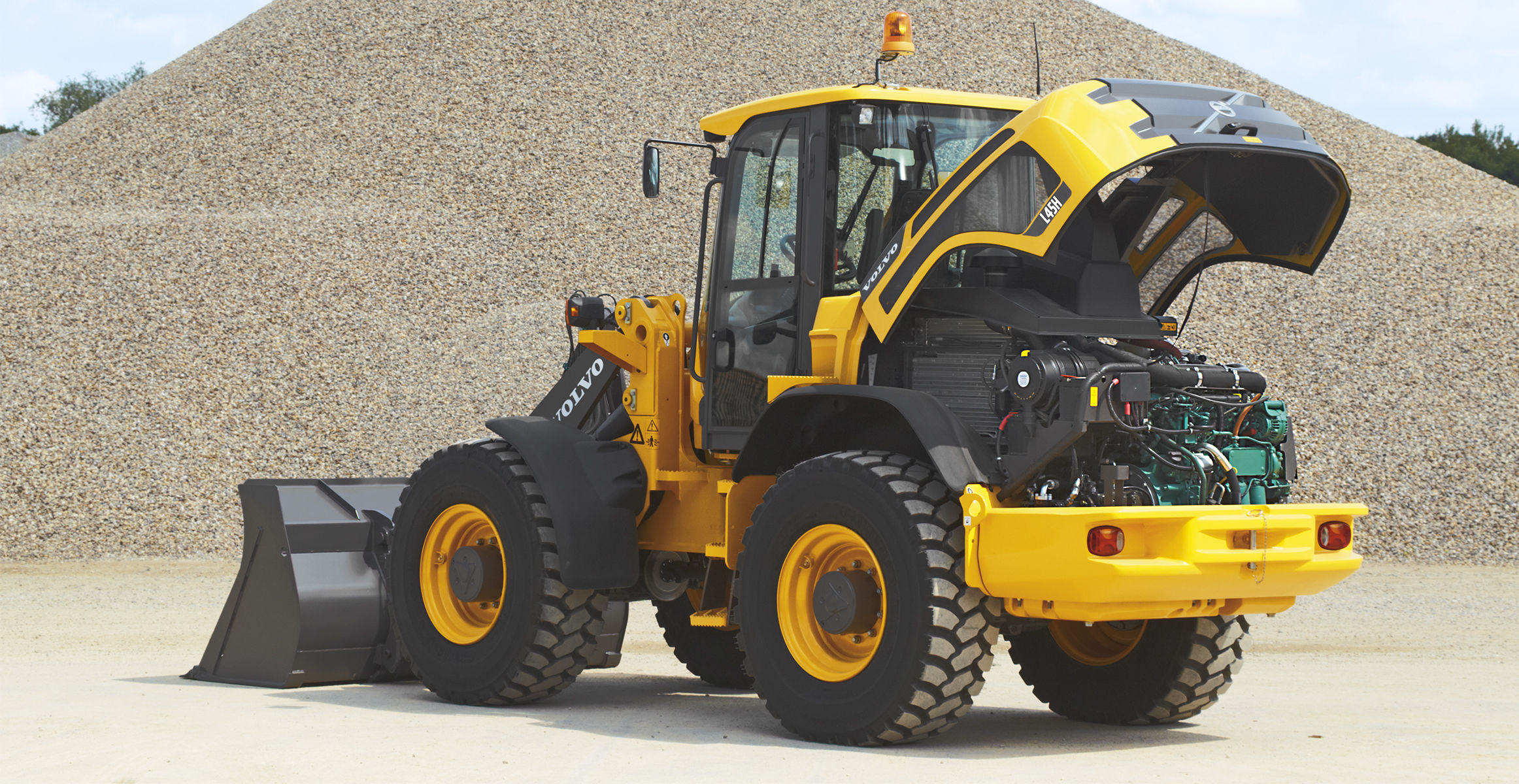

The service friendly design keeps your routine maintenance quick and efficient with a full access to all main service and maintenance points.
Volvo's unique Torque Parallel linkage combines Z-Bar and Parallel linkage in one for high breakout torque and parallel movement through the entire lifting range.
The engine, transmission and axles are all designed to work in perfect harmony with the hydraulics and steering for superb performance and reliability.

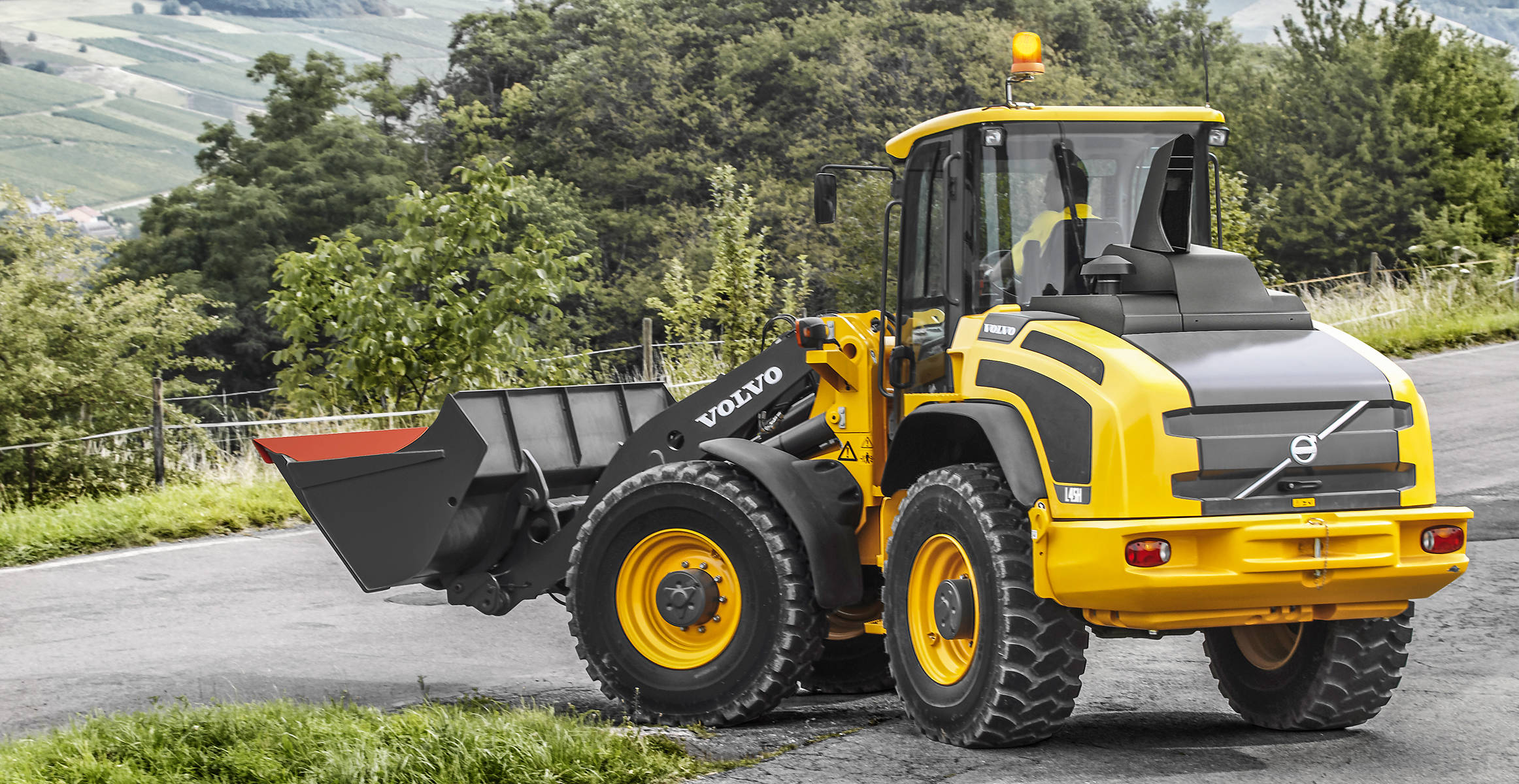

Volvo's L45H and L50H loaders give you top performance whether working on rough-terrain or smooth concrete.
