More than 60 years in the making, Volvo is proud to introduce the next generation compact loader. This versatile machines is a powerful asset on every job site in every application.

Max torque ISO 9249, SAE J1349 net: 343.7 lbf ft
Hydraulic lifting capacity, max: 19333 lbf
Engine gross power: 116.7 hp
Operating weight: 20,944 lbs
Breakout force: 15,512 lbf
Bucket capacity: 2.1 yd³
...at full turn: 40 degree
Tipping load (ISO/DIS 14397-1): 12,676 lbs
Fork payload 80%: 8,466 lbs
Maximum travel speed - Standard: 12 mph

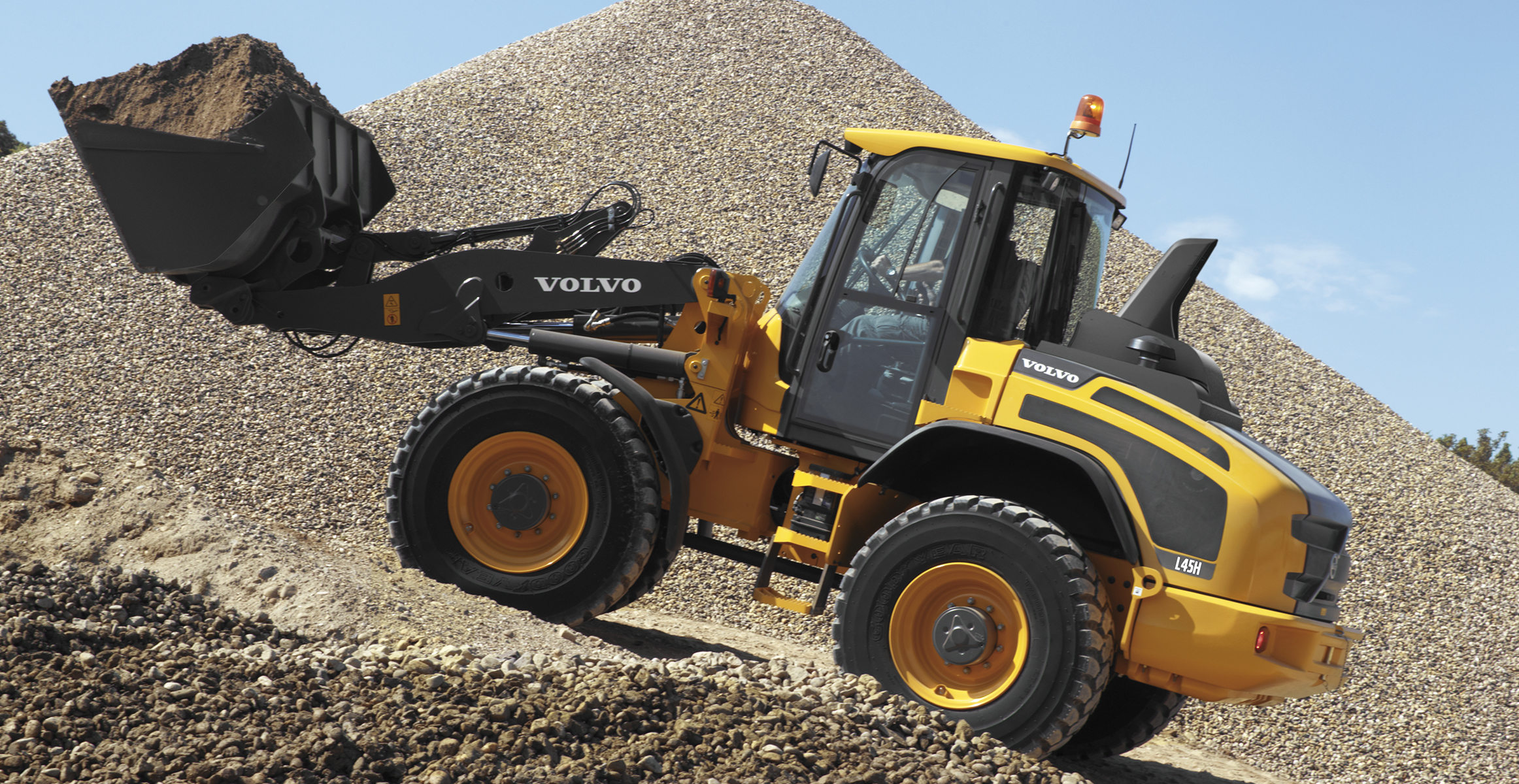

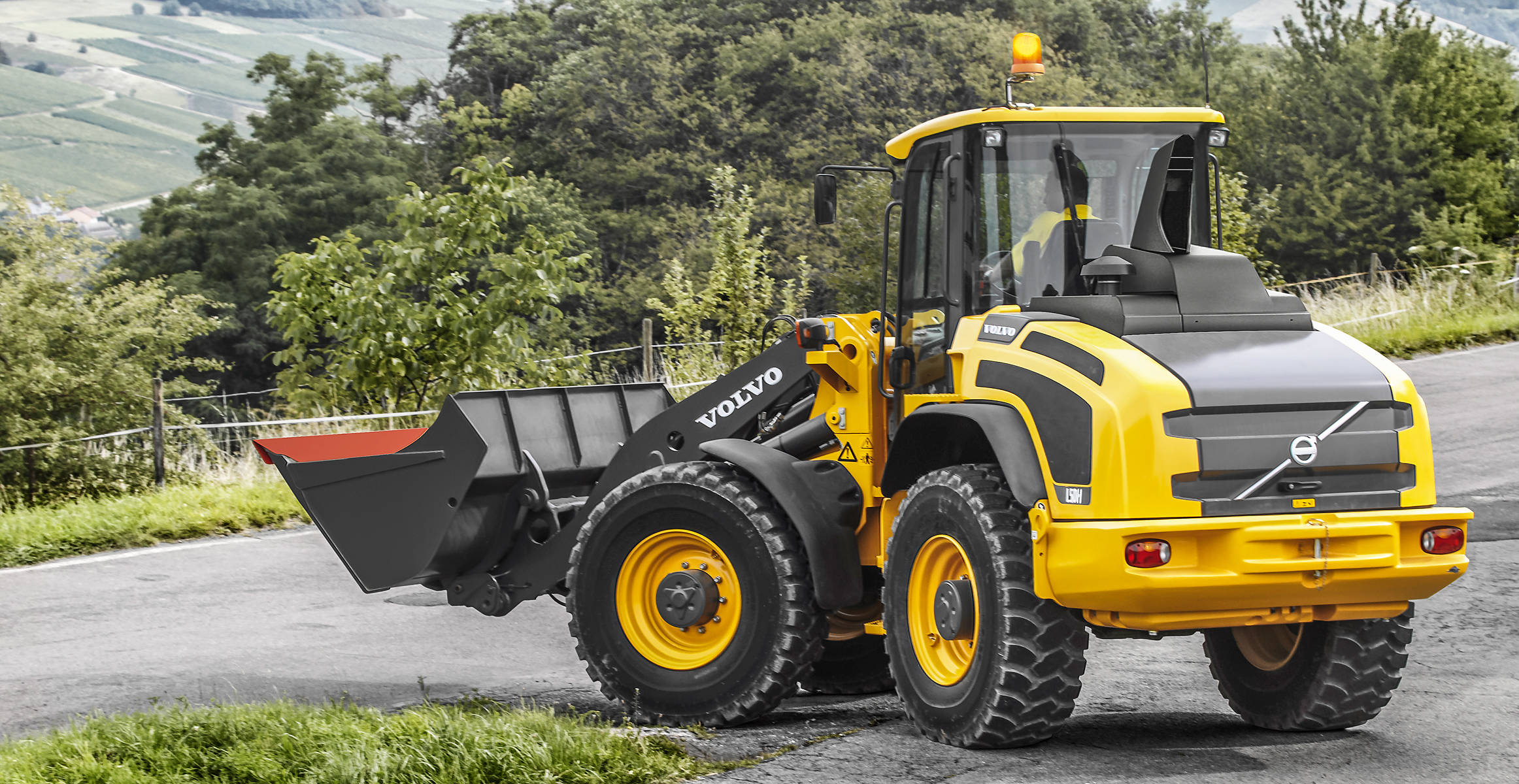

Volvo's L45H and L50H loaders give you top performance whether working on rough-terrain or smooth concrete.

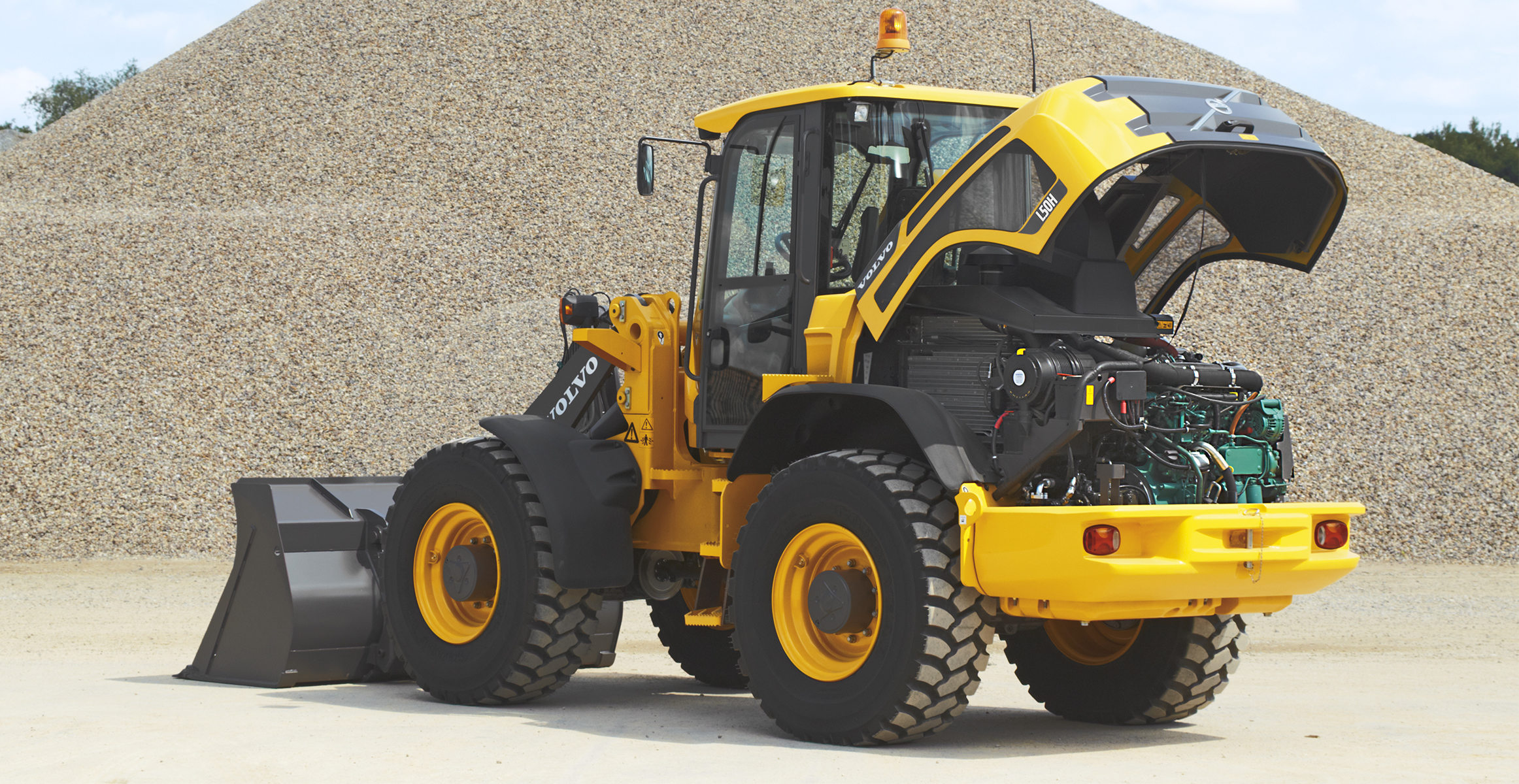

The service friendly design keeps your routine maintenance quick and efficient with a full access to all main service and maintenance points.
The engine, transmission and axles are all designed to work in perfect harmony with the hydraulics and steering for superb performance and reliability.

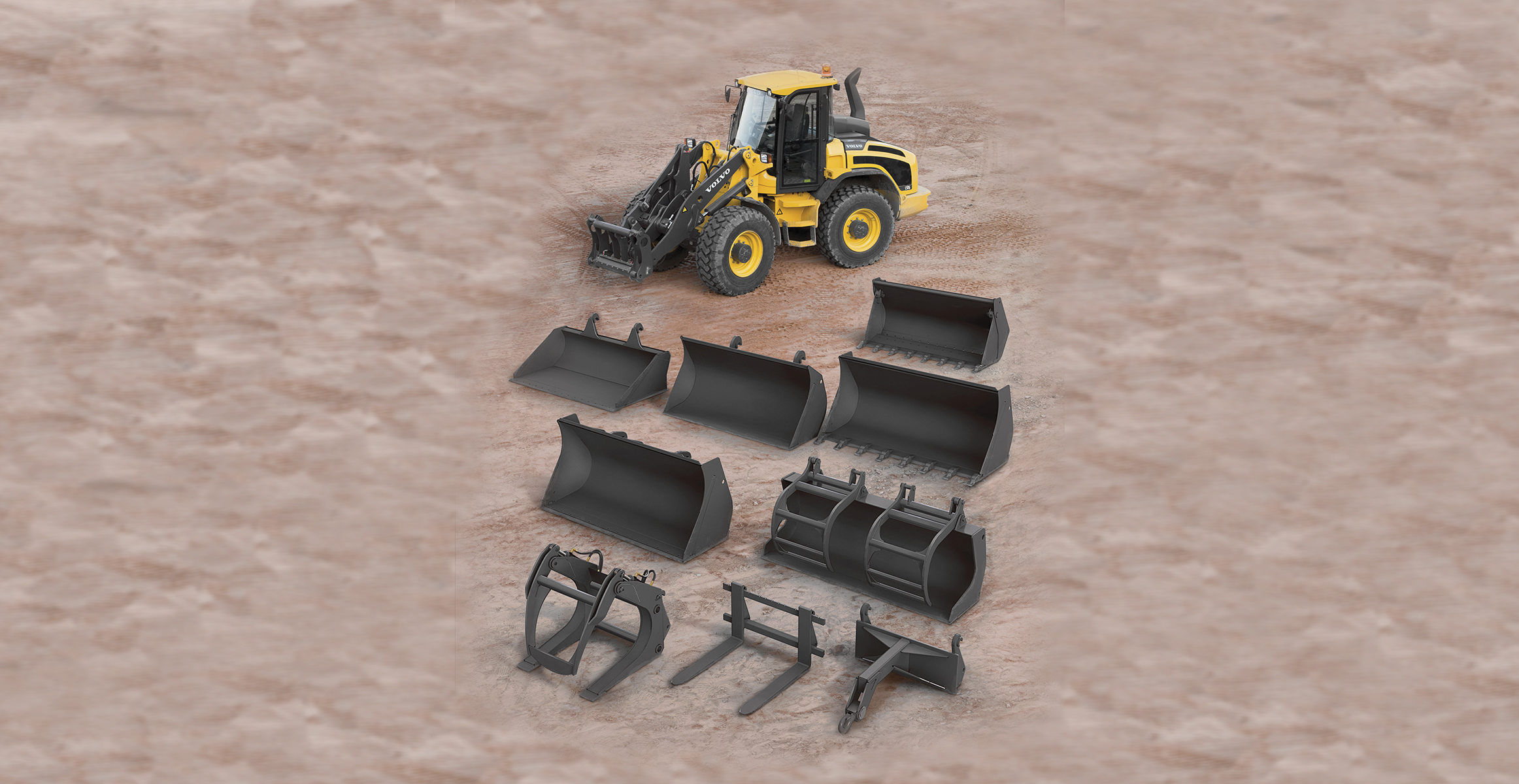

Volvo's wide range of high quality attachments are perfectly matched to the machine's linkage, hydraulics and driveline to increase productivity.
Volvo's unique Torque Parallel linkage combines Z-Bar and Parallel linkage in one for high breakout torque and parallel movement through the entire lifting range.
The certified ROPS/FOPS cab features ergonomically placed controls, a superior control system, all-around visibility and low internal noise levels.
