The new H-series L220 is more efficient, more productive and more intelligent than the former G-series. Achieve up to 15% greater fuel efficiency, thanks to a powerful engine, second generation OptiShift and new dry P-Brake. To boost productivity by up to 10%, the L220H has also been upgraded with a new transmission, new converter and revised gear ratio.

...SAE J1995 gross: 1,646 lbf ft
Log grapples: 2.2 - 4.8 yd²
...ISO 9249, SAE J1349 net: 366 hp
Bucket capacity: 5.6 - 20.9 yd³
Operating weight: 68,780 - 72,970 lbs
...ISO 9249, SAE J1349 net: 1,637 lbf ft
...SAE J1995 gross: 367 hp
Breakout force: 54,990 lbf
Max power at: 1,300 rpm
Max torque at: 1,100 rpm
Static tipping load at full turn: 46,110 lbs

Customize the lock-up engagement of your machine, with new generation OptiShift. The improved technology integrates the Reverse By Braking function and the new torque converter with lock-up, creating a direct drive between the engine and transmission.
Volvo's unique Torque Parallel (TP) linkage provides high breakout torque and ultimate parallel movement throughout the entire lifting range.

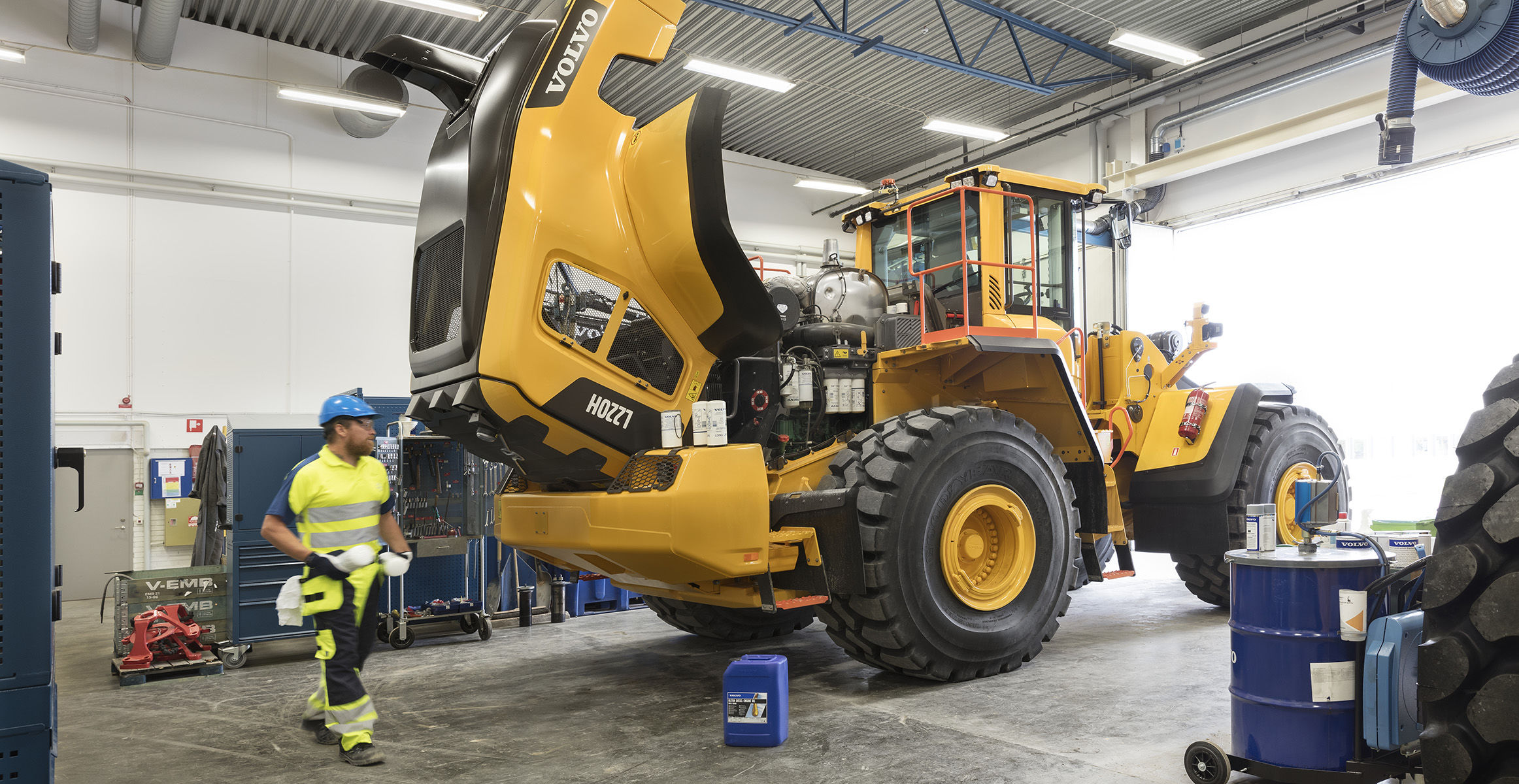

The cab can be tilted to either a 30º or 70º angle, and the engine hood is operated electronically. Stay one step ahead and check the condition of your brakes using the brake wear indicators, placed on the wheels.

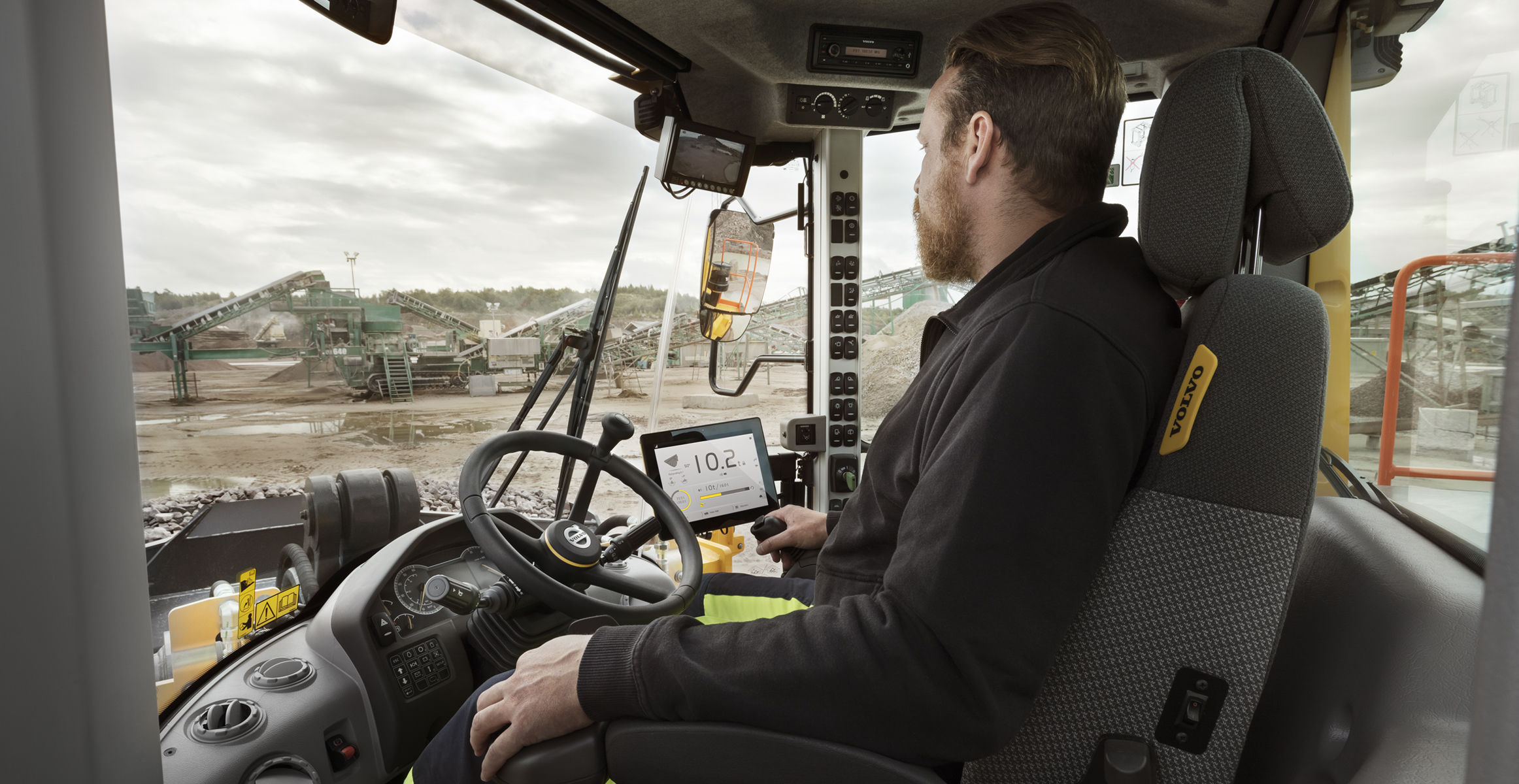

Operate in comfort from the best cab on the market, the Volvo cab can be equipped with a new adjustable seat.

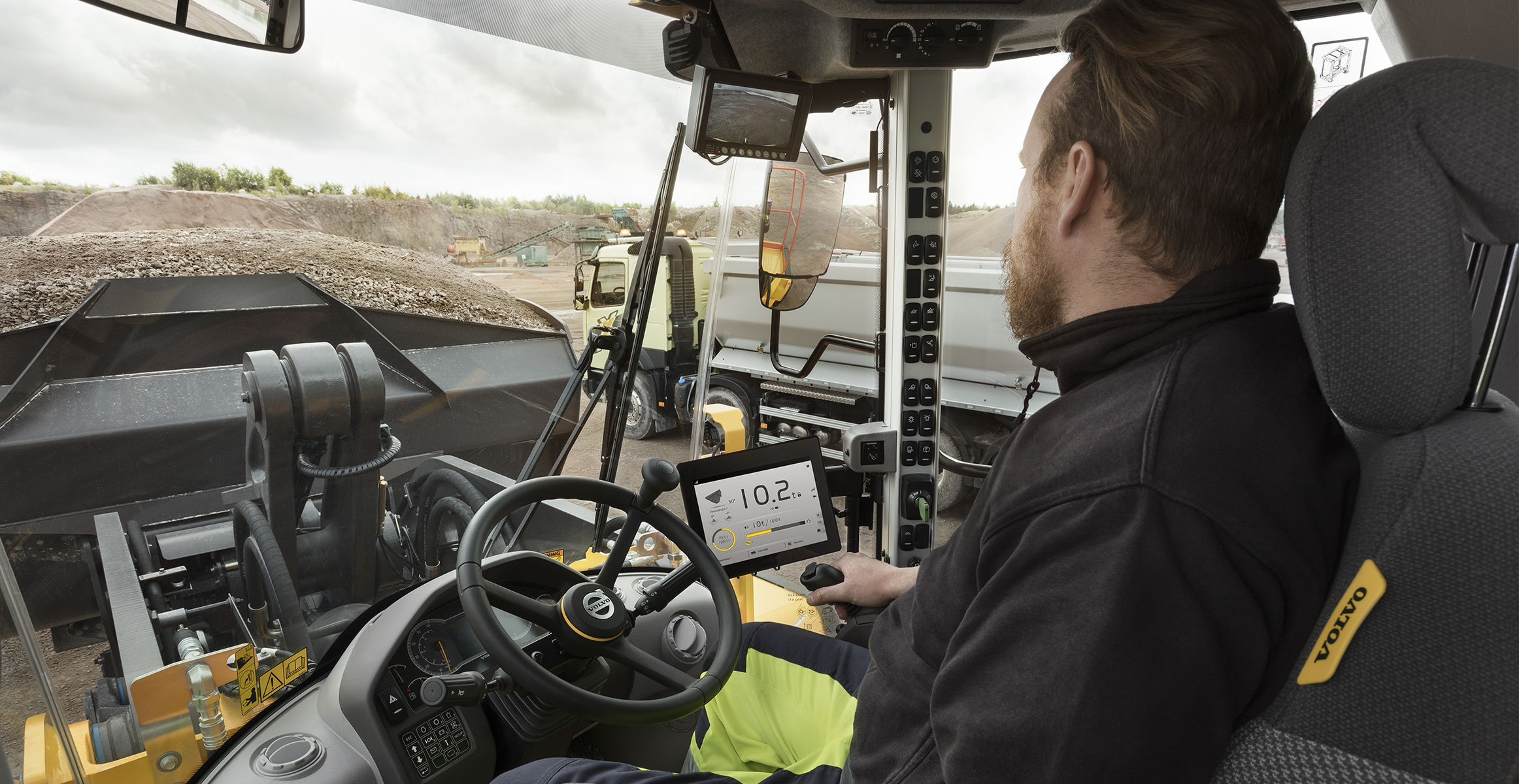

Monitor the amount of material moved and easily manage work orders with Load Assist - a dynamic load weighing system with ±2% accuracy, powered Volvo Co-Pilot.
