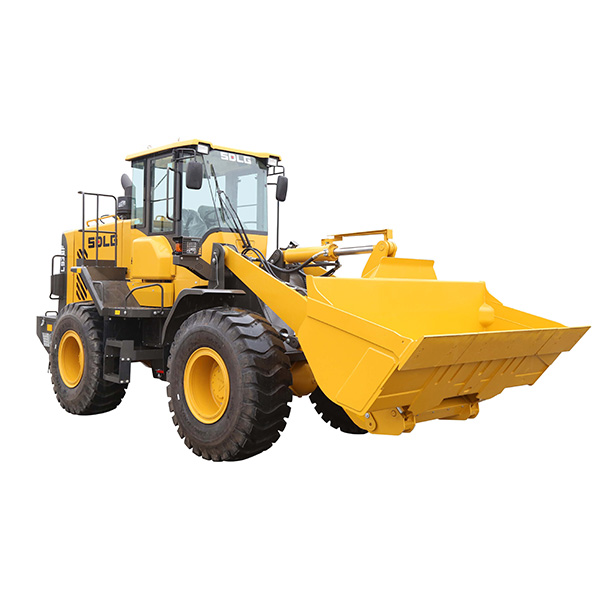

The SDLG L938F mid-size front end loader is the perfect size for any small-to-medium contractor — it’s a true utility price-point loader. Its small footprint makes it a maneuverable loader, and its 2.5 yd3 (1.9 m3) bucket with a 3.3-ton (3.0 metric tons) rated capacity is ideal for landscaping, residential building site prep, snow removal jobs and utility work like moving pipe, guardrails, gravel or backfilling holes
SDLG’s L938F frontend loader comes with an SDLG/Deutz Tier 4f certified engine, hydraulic quick coupler, and full-powered, third-function hydraulic. It’s backed by a great warranty and top-notch dealer network, making it a great fit for nearly any company that needs a loader for its basic operations.
- SDLG conventional axles with air-cooled, dry-disc brakes make servicing simple
- Joystick with integrated directional control switch allows for fingertip shifting and more intuitive loader control, and a separate third-function lever powers attachment hydraulics
- ZF powershift transmission provides precise gear selection
- SDLG / Deutz 6.0-liter, Tier 4f certified engine with reversible cooling fan makes for an incredibly reliable machine
- ISO quick coupler allows for simple attachment changes for ultimate versatility
- Quiet operator cab features A/C, AM/FM and USB radio, and is ROPS/FOPS approved with excellent 360° visibility for a ready-to-work operator environment
- General purpose buckets with reversible bolt-on cutting edges
- 12-month/2,000-hour warranty with optional extended warranty packages available
SPECIFICATIONS
|
Engine Model |
SDLG SD60 / Deutz 6.0 liter Tier 4 Final |
|
|
Max Power |
171 hp |
127 kW |
|
Max Torque |
627 lbfft |
850 Nm |
|
Bucket Capacity |
2.5 yd3 |
1.9 m3 |
|
Rated Load |
6,600 lbs |
3,000 kg |
|
Full Turn Tipping Load |
15,060 lbs |
6,830 kg |
|
Breakout Force |
21,130 lbf |
94 kN |
|
Max Dump Height |
9’ 2” |
2,795 mm |
|
Standard Tire Size |
20.5-25 Bias, 16-Ply, Tubeless |
|
|
Turning Radius, Outside Bucket |
20’ 3” |
6,175 mm |
|
Turning Radius, Rear Tire |
18’ 7” |
5,674 mm |
|
Dimensions with Bucket (LxWxH) |
24’4” x 8’2” x 11’0” |
7,420 × 2,485 × 3,360 mm |
|
Operating Weight |
27,560 lbs |
12,500 kg |
