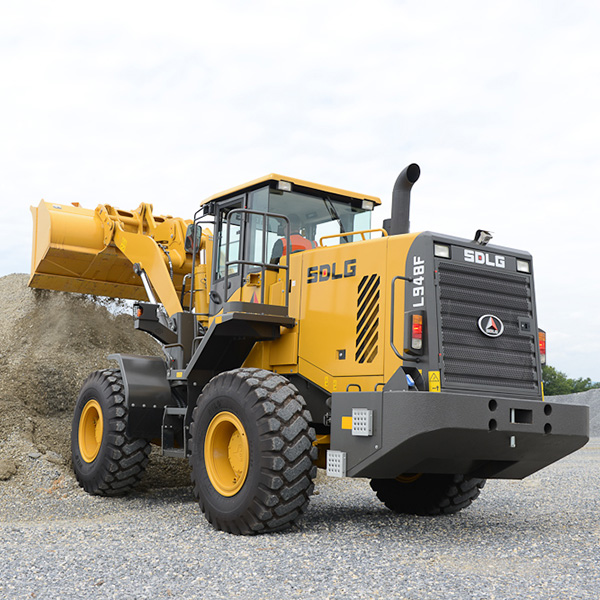

The SDLG L948F is a 3.0 yd3 (2.3 m3) mid-size wheel loader with a 4.4-ton (4.0 metric tons) rated capacity, making it the ideal front end loader for municipality snow removal, industrial material handling, commercial site prep, warehousing, auto handling and recycling, waste or paper recycling and more. Even with impressive lift heights, its stability — paired with a hydraulic quick coupler and full-powered, third-function hydraulics — make it a versatile loader and the right low-cost option for nearly any job.
- SDLG / Deutz 6.0-liter, Tier 4f certified engine with reversible cooling fan makes for an incredibly reliable machine
- ISO quick coupler allows for simple attachment changes for ultimate versatility
- General purpose buckets with reversible bolt-on cutting edges
- 12-month/2,000-hour warranty with optional extended warranty packages available
- SDLG conventional axles with air-cooled, dry-disc brakes make servicing simple

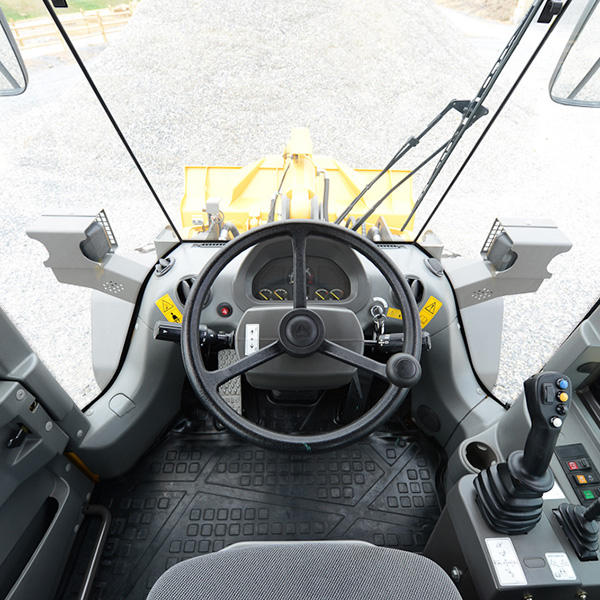

- Quiet operator cab features A/C, AM/FM and USB radio, and is ROPS/FOPS approved with excellent 360° visibility for a ready-to-work operator environment
- ZF powershift transmission provides precise gear selection
- Joystick with integrated directional control switch allows for fingertip shifting and more intuitive loader control, and a separate third-function lever powers attachment hydraulics
SPECIFICATIONS
|
Engine Model |
SDLG SD60 / Deutz 6.0 liter Tier 4 Final |
|
|
Max Power, 1900 rpm |
184 hp |
137 kW |
|
Max Torque, 1400 rpm |
689 lbfft |
934 Nm |
|
Bucket Capacity |
3.0 yd3 |
2.3 m3 |
|
Rated Load |
8,800 lbs |
4,000 kg |
|
Full Turn Tipping Load |
21,340 lbs |
9,680 kg |
|
Breakout Force |
34,620 lbf |
154 kN |
|
Max Dump Height |
9’ 3” |
2,820 mm |
|
Standard Tire Size |
20.5-25 Bias, 16-Ply, Tubeless |
|
|
Turning Radius, Outside Bucket |
21’ 0” |
6,390 mm |
|
Turning Radius, Rear Tire |
18’ 10” |
5,736 mm |
|
Dimensions with Bucket (LxWxH) |
25’6” x 8’5” x 10’10” |
7,768 × 2,574 × 3,300 mm |
|
Operating Weight |
32,010 lbs |
14,520 kg |
