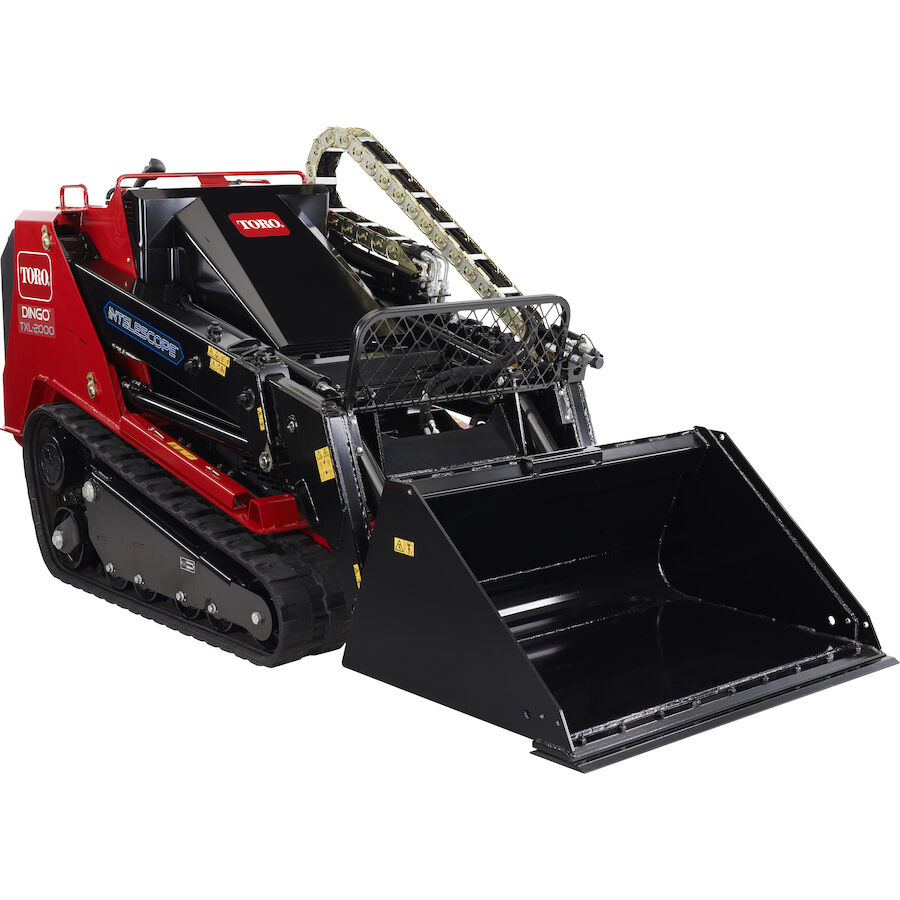

The Dingo TXL 2000 has you covered. No need for separate machines to unload, haul, dig and place material; the Dingo TXL 2000 can do it all. With the benefits of a compact utility loader, mini excavator and compact track loader rolled into one piece of equipment, it’s a smart solution that’s in a category of its own.
- An industry leading 2,000 lbs. rated operating capacity allows the operator to handle many jobsite materials suited for larger machines.
- A 54” wide frame allows the machine to access smaller spaces that larger machines are not able to.
- A dedicated stand-on machine offers superior 360° visibility for optimized jobsite performance and awareness.
- Toro’s exclusive traction control design allows operator’s of all skill levels to operate the machine with ease and precision. The loader arm control is designed to allow not only loader arm function control, but has the telescoping function, proportional auxiliary control, and directional left/right control for applicable Toro TXL 2000 attachments.
- The dedicated stand-on platform allows the operator to step-on and step-off the machine with ease and comfort to allow for enhanced jobsite efficiencies – not having to enter/exit a cab.
- A Toro-exclusive telescoping arm design allows the operator to lift loads up to 123” high (hinge pin height) and reach out 44” for placement and removal of jobsite materials.
Specifications
|
Air Filter |
Two-stage, heavy-duty, remote |
|---|---|
|
Cooling System |
Liquid Cooled |
|
Dump Angle |
46.3 degrees |
|
Dump Height (cm) |
225.8 |
|
Dump Height (inches) |
88.9 |
|
Engine Make |
Kubota |
|
Engine Model |
D1803 |
|
Fuel Tank (gallons) |
18.3 |
|
Fuel Tank (liters) |
69.3 |
|
Fuel Type |
Diesel |
|
Ground Clearance (cm) |
16 |
|
Ground Clearance (inches) |
6.3 |
|
Ground Pressure |
5.3 psi |
|
Ground Speed Forward (mph) |
5.4 |
|
Ground Speed Foward (km/h) |
8.6 |
|
Ground Speed Reverse (km/h) |
8.6 |
|
Ground Speed Reverse (mph) |
5.4 |
|
Hinge Pin Height (cm) |
313.4 |
|
Hinge Pin Height (inches) |
123.4 |
|
Hydraulic Flow |
21.5 gpm (81.4 lpm) each pump |
|
Hydraulic Flow Auxilary |
21.4 gpm |
|
Hydraulic Pressure |
Auxillery:3000 psi; traction: 4350 psi |
|
Loader Arms |
Radial |
|
Manufacturer’s Gross HP Rating (HP) |
49.6 |
|
Manufacturer’s Gross HP Rating (kW) |
37 |
|
Max Operating Height (cm) |
172.2 |
|
Max Operating Height (inches) |
67.8 |
|
Oil Capacity (liters) |
7 |
|
Oil Capacity (quarts) |
7.4 |
|
Overall Height (cm) |
172.2 |
|
Overall Height (inches) |
67.8 |
|
Overall Length w/bucket (cm) |
347.7 |
|
Overall Length w/bucket (inches) |
136.9 |
|
Overall Length w/o bucket (cm) |
250.9 |
|
Overall Length w/o bucket (inches) |
98.8 |
|
Overall Width (cm) |
139.7 |
|
Overall Width (inches) |
55 |
|
Rated Operating Capacity – 35% of Tip Capacity (kg) |
417 |
|
Rated Operating Capacity – 35% of Tip Capacity (lbs) |
920 |
|
Reach – Fully Raised (cm) |
114.8 |
|
Reach – Fully Raised (inches) |
45.2 |
|
Reservoir Capacity (gallons) |
15.25 |
|
Reservoir Capacity (liters) |
57.7 |
|
Tip Capacity (kg) |
1188 |
|
Tip Capacity (lbs) |
2620 |
|
Track Length (inches) |
162.2 |
|
Track Length(cm) |
411.9 |
|
Track Width (cm) |
29.9 |
|
Track Width (inches) |
11.8 |
|
Tracks |
Sprocket-drive, 6 road wheels per side |
|
Traction |
Dual Hydrostatic Pump |
|
Weight (kg) |
3034 |
|
Weight (lbs) |
6690 |
|
Wheelbase (inches) |
53.7 |
