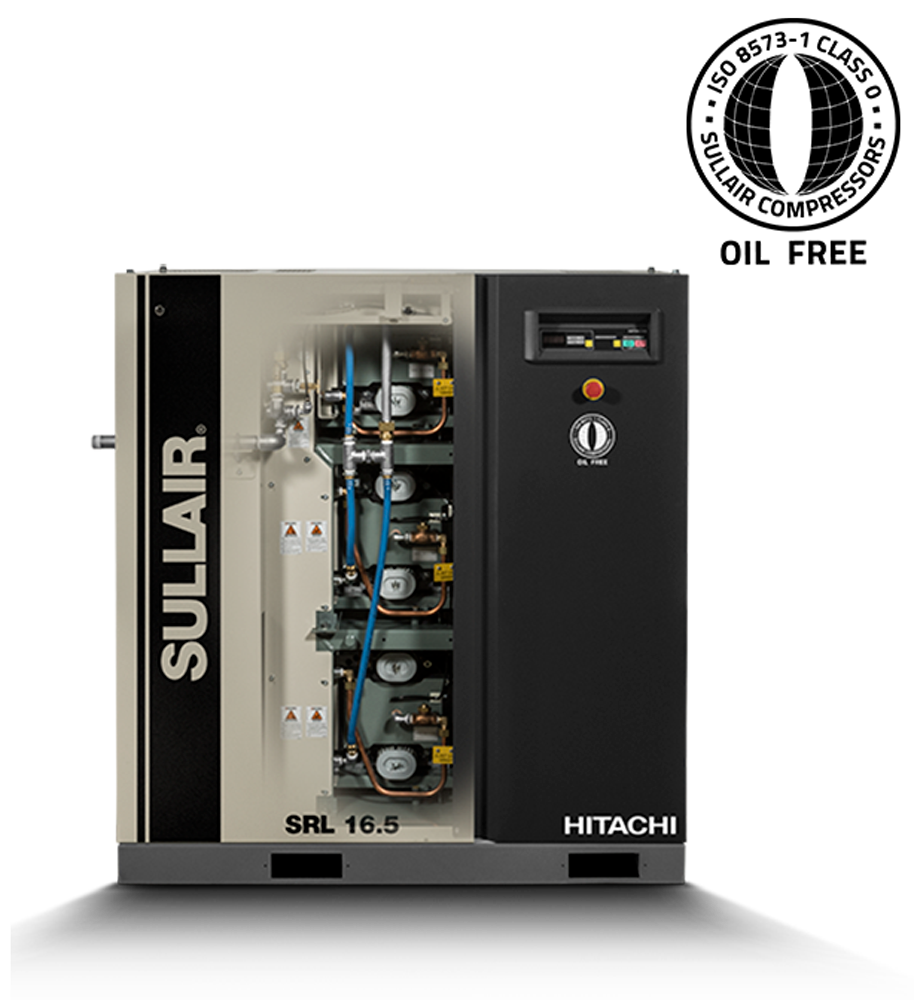

OIL FREE AIR RELIABLY, EFFICIENTLY AND QUIETLY Built on Hitachi engineering, the SRL Series represents advanced scroll compressor technology to meet your oil free compressed air needs — today and tomorrow. Maximizing efficiency means more than just having an efficient air compressor. All SRL Series compressors feature built-in logic to help utilize the air compressors most efficiently — which not only saves wear and tear on the compressor, but also provides energy savings — which saves you money! SRL Exclusive Scroll and Pump Design Integrated Design for Maximum User Benefits Quiet Operation — as low as 48 dB(A)
- Pressure: 120 - 145 psi 8.3 - 10 bar
- Flow: 5.7 - 129.3 cfm .16 - 3.66 m³/min
- Power: 2 - 44 hp 1.5 - 33 kw
- Maintenance friendly Easy accessibility for inspection and maintenance
- Designed to be placed at point of air need
- Extremely quiet Sound levels as low as 48 dB(A) Full enclosure standard Mechanical and electrical vibration isolation Designed to be placed at point of air need
- Sound levels as low as 48 dB(A)
- Multi stage cooling reduces ambient temperature out
- Easy accessibility for inspection and maintenance
- Normal maintenance can be completed without disassembling pump
- Receiver tank helps dissipate heat while reducing compressor starts/stops
- Proprietary tip seal reduces air leakage while extending service intervals
- Mechanical and electrical vibration isolation
- Highly efficient cooling Multi stage cooling reduces ambient temperature out
- Air pressures to 145 psig
- Full enclosure standard
- Patented scroll wrap design with labyrinth seal provides superior performance and reliability
- Compact design reduces floor space needed
Features & Benefits
SRL Exclusive Scroll and Pump Design Patented scroll wrap design with labyrinth seal provides superior performance and reliability Proprietary tip seal reduces air leakage while extending service intervals Normal maintenance can be completed without disassembling pump Integrated Design for Maximum User Benefits Highly efficient cooling Multi stage cooling reduces ambient temperature out Receiver tank helps dissipate heat while reducing compressor starts/stops Air pressures to 145 psig Extremely quiet Sound levels as low as 48 dB(A) Full enclosure standard Mechanical and electrical vibration isolation Designed to be placed at point of air need Compact design reduces floor space needed Maintenance friendly Easy accessibility for inspection and maintenance US Patents: 6808373; 8628313; 8647085
