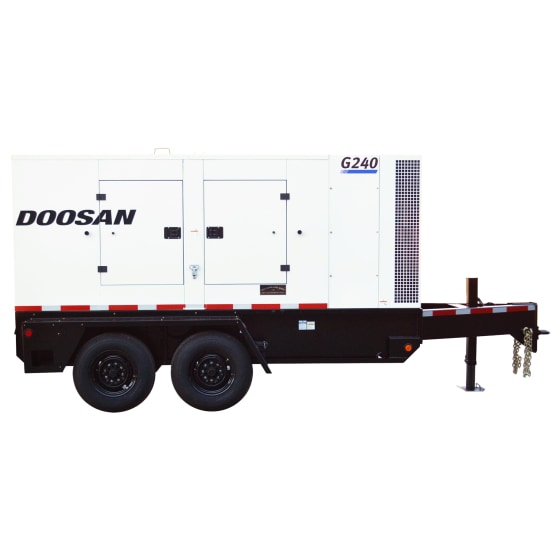

The G190-G325 range features the exclusive DualBoxTM enclosure design. This innovative enclosure separates the powertrain from the cooling system, allowing independent control of the cooling performance in each compartment. The engine compartment is cooled by dual, variable speed, electric cooling fans designed to maximize sound attenuation and minimize water ingression. The cooling compartment features a high efficiency, centrifugal style cooling fan which improves fuel economy and provides the cooling performance that tier 4 diesel engines need.
- Engine: Cummins QSB7-G9
- Sound Level (100% Load): 69 dB(A)
- Prime Output: 235 kVA (188 kW)
Engine
|
Make/Model |
Cummins QSB7-G9 |
|---|---|
|
Displacement (L) |
6.7 |
|
Number of Cylinders |
6 |
|
Power Output @ 1800RPM – HP (kWm) |
282 (210) |
|
Emissions Tier Level |
Tier 4 Final |
|
Aftertreatment Technology |
DOC / SCR |
|
Fuel Tank Capacity – Gal (L) |
330 (1249) |
|
Diesel Exhaust Fluid (DEF) Capacity – Gal (L) |
24.4 (92.4 |
|
Runtime @ 100% Load – Hr |
24.4 |
Prime Power Rating
|
@ 480V-3Ø, 0.8PF, 60Hz |
235 kVA (188 kW), 283 Amps |
|---|---|
|
@ 240V-3Ø, 0.8PF, 60Hz |
235 kVA (188 kW), 566 Amps |
|
@ 208V-3Ø, 0.8PF, 60Hz |
219 kVA (175 kW), 608 Amps |
|
@ 240V-1Ø, 1.0PF, 60Hz |
136 kVA (136 kW), 567 Amps |
|
@ 120V-1Ø, 1.0PF, 60Hz |
136 kVA (136 kW), 567 × 2 Amps |
|
@ 400V-3Ø, 0.8PF, 50Hz |
200 kVA (160 kW), 289 Amps |
|
Voltage Configuration |
Link Board Panel |
|
Frequency Capability |
50Hz/60Hz Switchable |
Dimensions With Running Gear
|
Length – in (mm) |
224 (5689) |
|---|---|
|
Width – in (mm) |
83.2 (2114) |
|
Height – in (mm) |
102.9 (2615) |
|
Weight (Ready to Run) – lb (kg) |
11377 (5172) |
|
Sound Level @ 23 ft (7m) and 100% Load – dB(A) |
69 |
