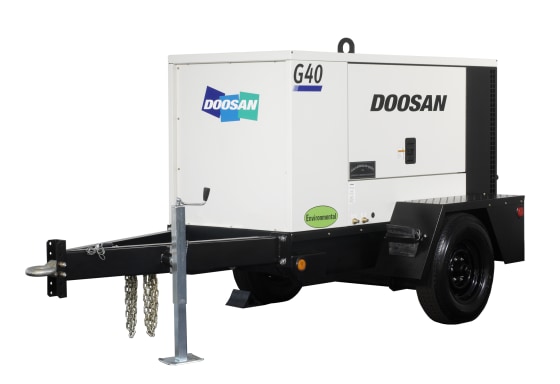

The G40 features Tier 4 engine technology in a small package with Doosan Portable Power’s legendary rugged enclosure and running gear. Along with user-friendly controls, 24-hour run time, and sound attenuation, the G40 is rental ready for events, emergency backup and construction.

The G40 from Doosan Portable Power was designed to serve any customer in any application. Easy-to-use operator controls simplifies training customers to use the G40. The gauges and diagnostic displays are neatly arranged so that the generator’s operations can by quickly assessed. The G40’s small footprint and variety of electrical hookups (GFCI, Twistlock, Terminal/Lug and optional Camlocks) make this generator suitable for any application.

  • Length - in (mm) : 144.4 (3668)
  • Emissions Tier Level : Tier 4-interim
  • Voltage Configuration : 3-Position Switch
  • Frequency Capability : 60Hz Only
  • Width - in (mm) : 67 (1702)
  • @ 480V-3Ø, 0.8PF, 60Hz : 35 kVA (28 kW ), 42 Amps
  • Fuel Tank Capacity - Gal (L) : 47 (178)
  • @ 208V-3Ø, 0.8PF, 60Hz : 35 kVA (28 kW ), 97 Amps
  • Sound Level @ 23 ft (7m) and 100% Load - dB(A) : 66
  • Engine Make / Model : Mitsubishi S4S-Y362
  • @ 240V-3Ø, 0.8PF, 60Hz : 35 kVA (28 kW ), 84 Amps
  • Height - in (mm) : 68 (1727)
  • @ 120V-1Ø, 1.0PF, 60Hz 4 Wire : 28 kVA (28 kW ), 78 Amps / 21 kVA (21 kW ), 89x2 Amps
  • Weight (Ready to Run) - lb (kg) : 3508 (1591)
  • Power Output @ 1800RPM - HP (kWm) : 42 (31.3)
  • @ 240V-1Ø, 1.0PF, 60Hz 4 Wire : 28 kVA (28 kW ), 39 Amps / 21 kVA (21 kW ), 89 Amps
  • Runtime @ 100% Load - Hr : 18,2
  • Doosan Portable Power's G40 is designed to power your success in any application!
  • A Mitsubishi engine and Leroy-Somer alternator are featured in the G40. Doosan Portable Power's dedication to providing a reliable and efficient generator is evident in using the Leroy-Somer alternator. The Leroy-Somer alternator uses Class-H insulation to protect it from moisture and dust. Additionally, Leroy-Somer alternators feature AREP - an extra set of windings that provide greater motor starting capability. This means that a smaller generator can start with a larger motor and operate more efficiently than a traditional shunt generator.
