THE FIRST-EVER HYDRAULIC-CONTROLLED
SECTIONAL WING PLOW
Finally, an adjustable wing-plow that has all the advantages of an Arctic Sectional Sno-Pusher™ and an Arctic Sectional Sno-Plow™ all in one unit. There are other wing-plows on the market, but none of them offer Arctic’s patented and unmatched true-Sectional features and benefits, which allows the plow to self-level and contour to the pavement, trip over obstacles, and sheer-off hardpack snow and ice, scraping down to bare pavement in a single pass! Arctic is often copied, but never duplicated!

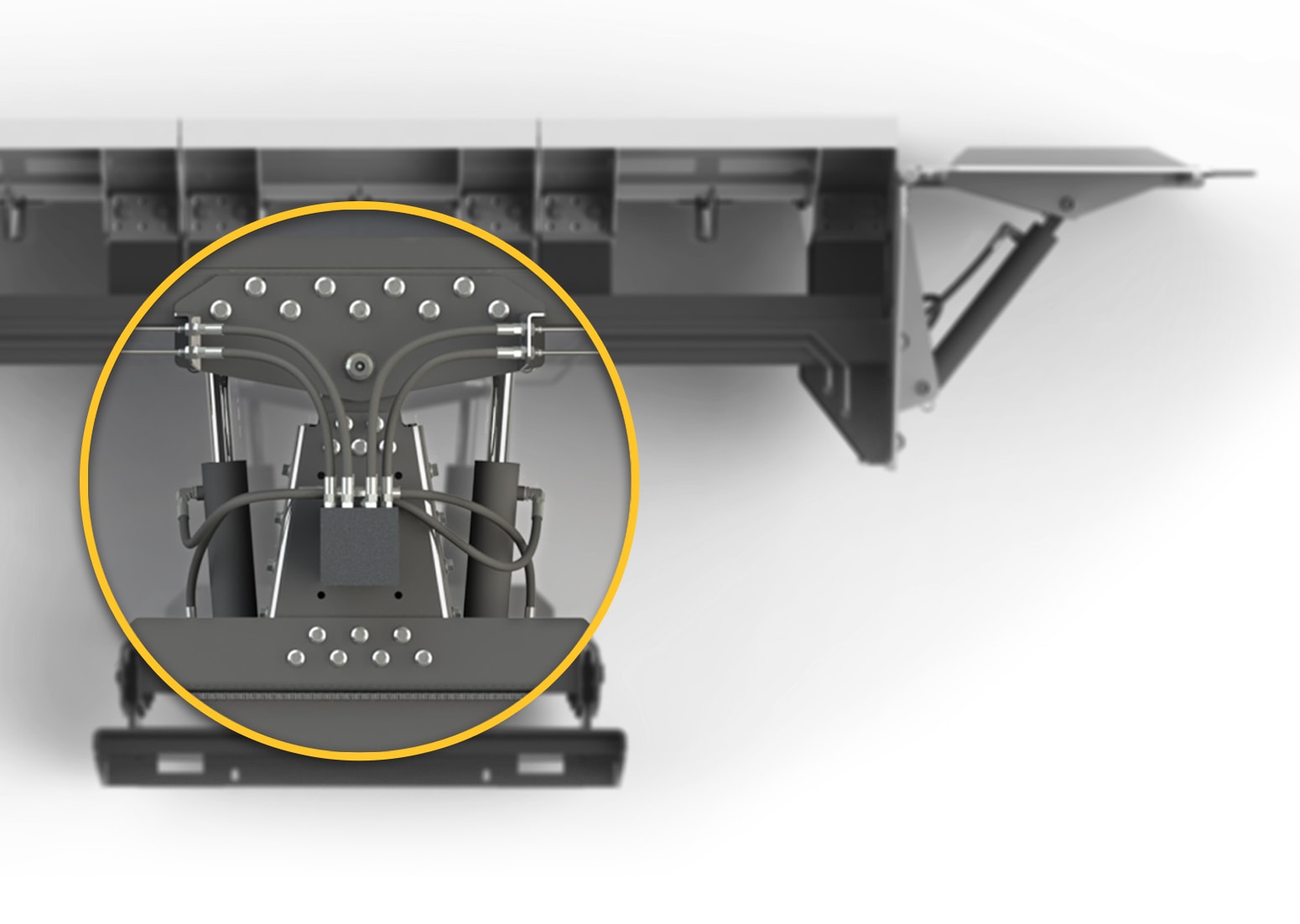

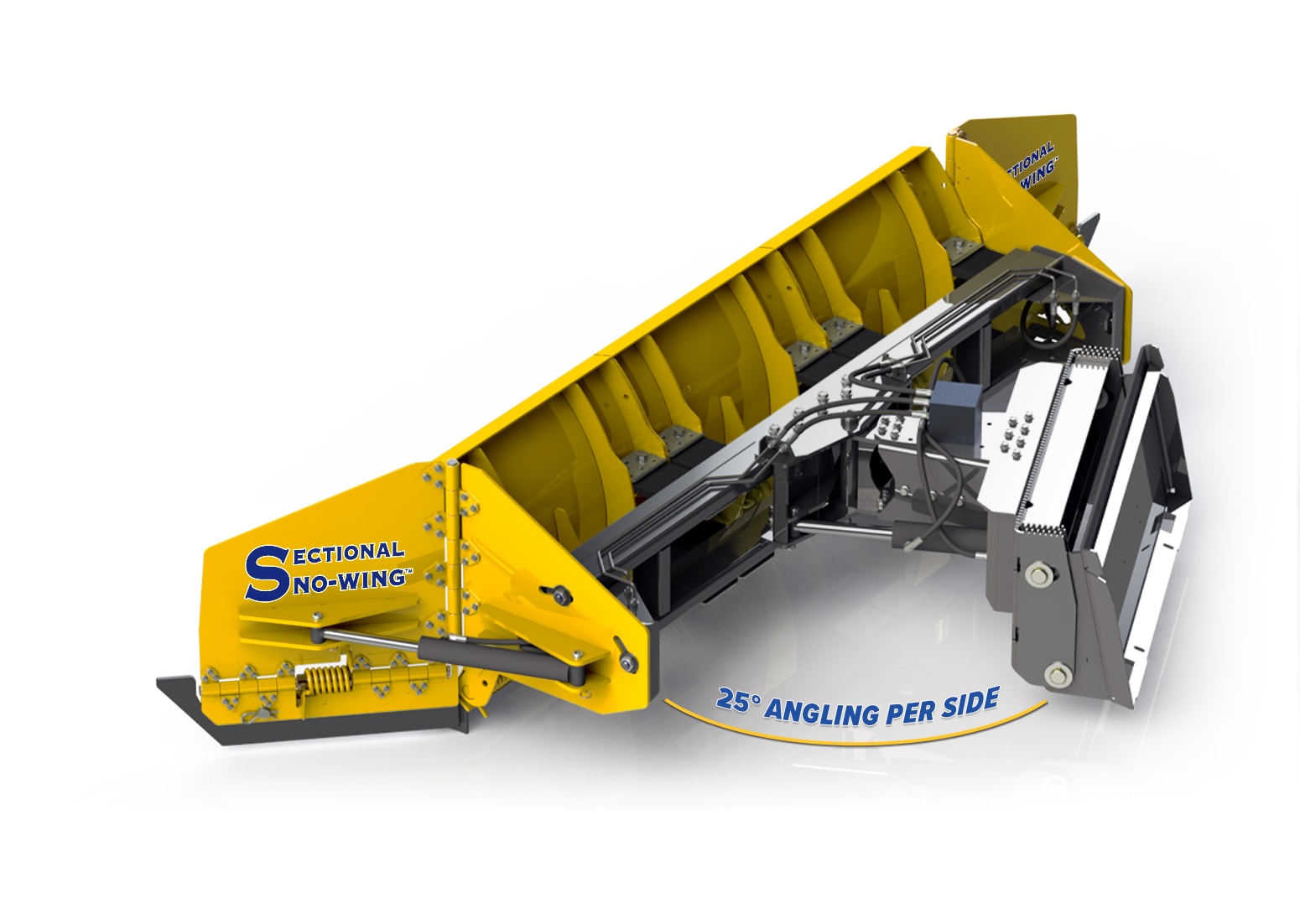

- Hydraulically power angle the plow up to 25 degrees left and right.

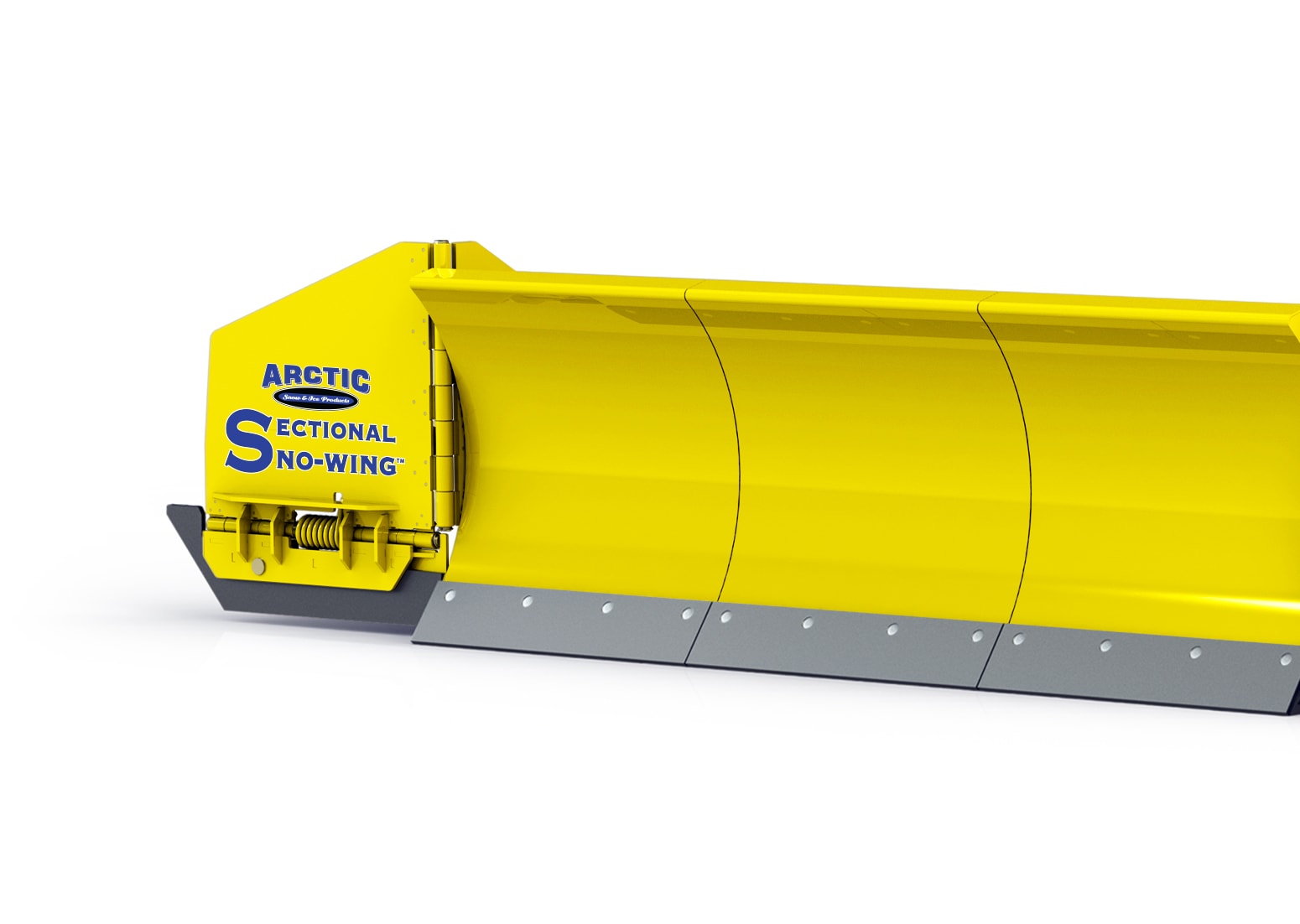

- Independent Sectional Moldboards
- Slip-Hitch universal coupler system allows for quick & easy changeover to any quick connect couplers or bucket mounts to fit any equipment manufacturer’s mounting system. It floats up and down independently from the machine, and automatically self-levels the pusher. It also allows the machine to keep all four tires on the ground for full traction.
- Forgiving, impact absorbing polyblock design

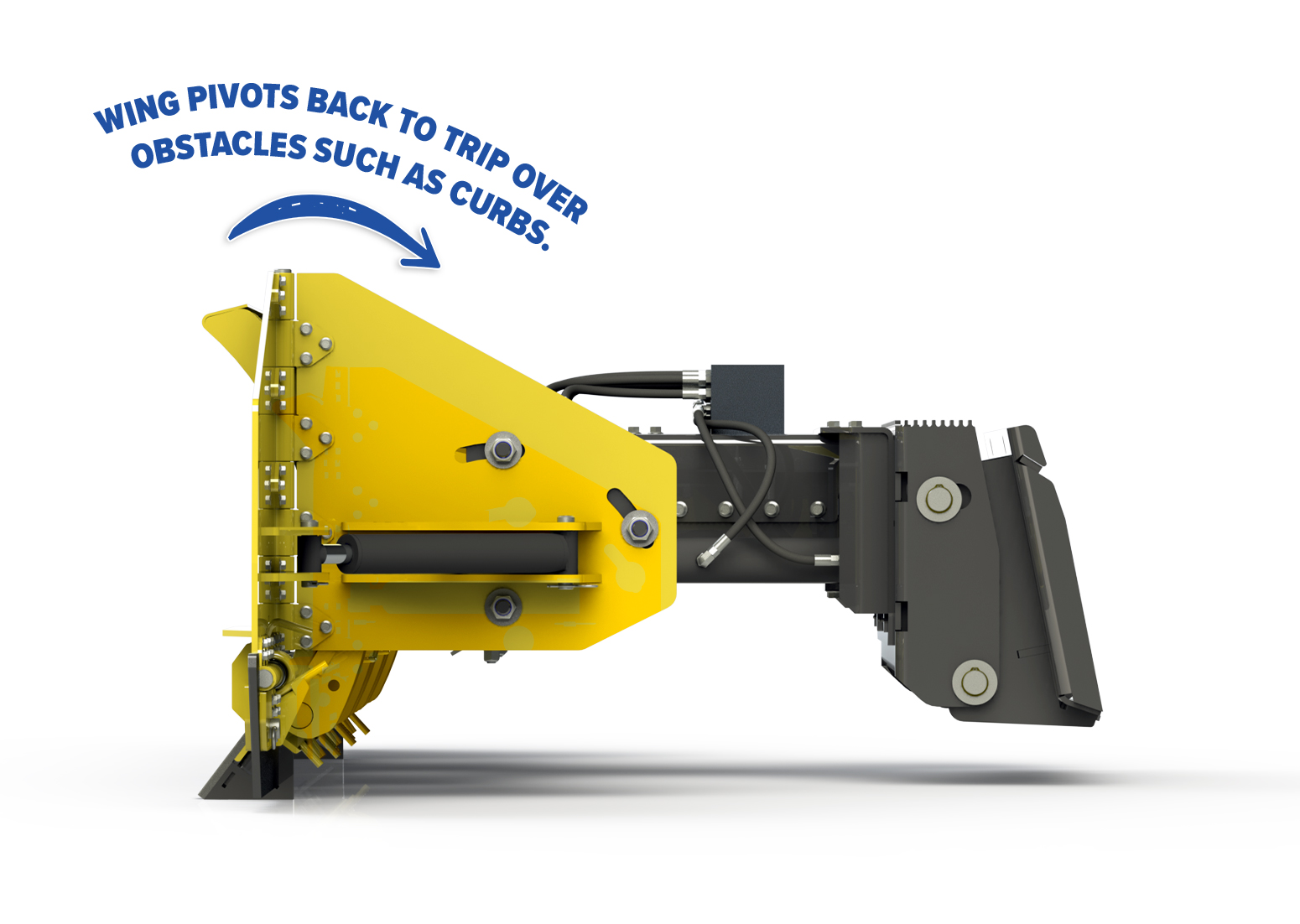

- Floating, AR400 spring-loaded tripping cutting edge on each wing, that conform to the pavement and scrapes to the ground.
- AR400 spring-loaded tripping cutting edges

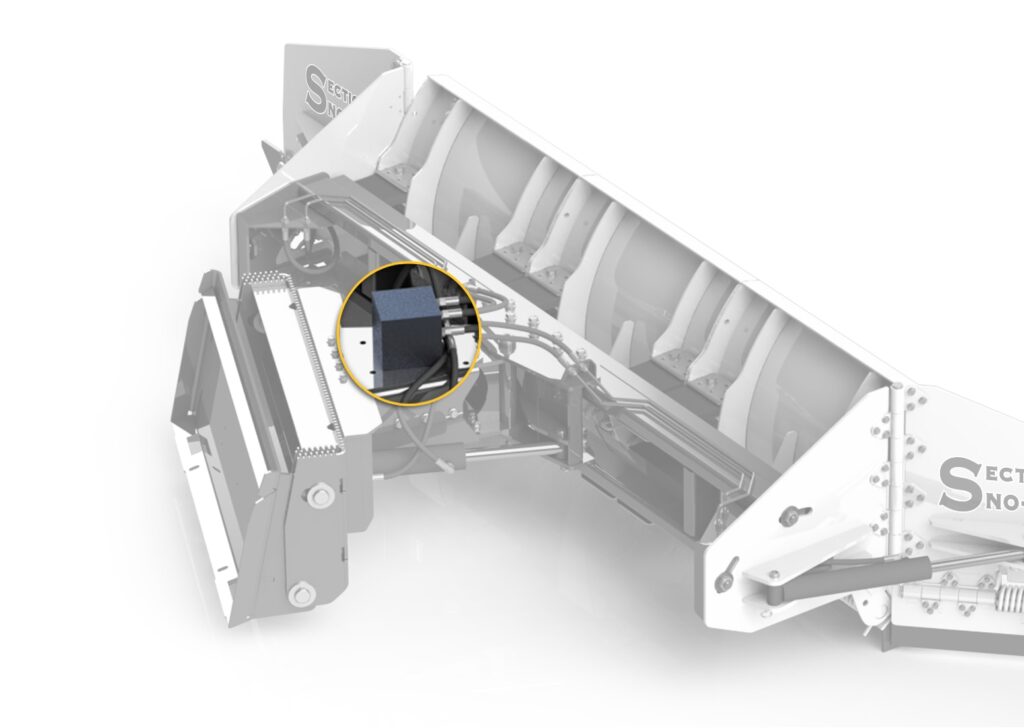

- 14 pin electrical connector comes as standard.

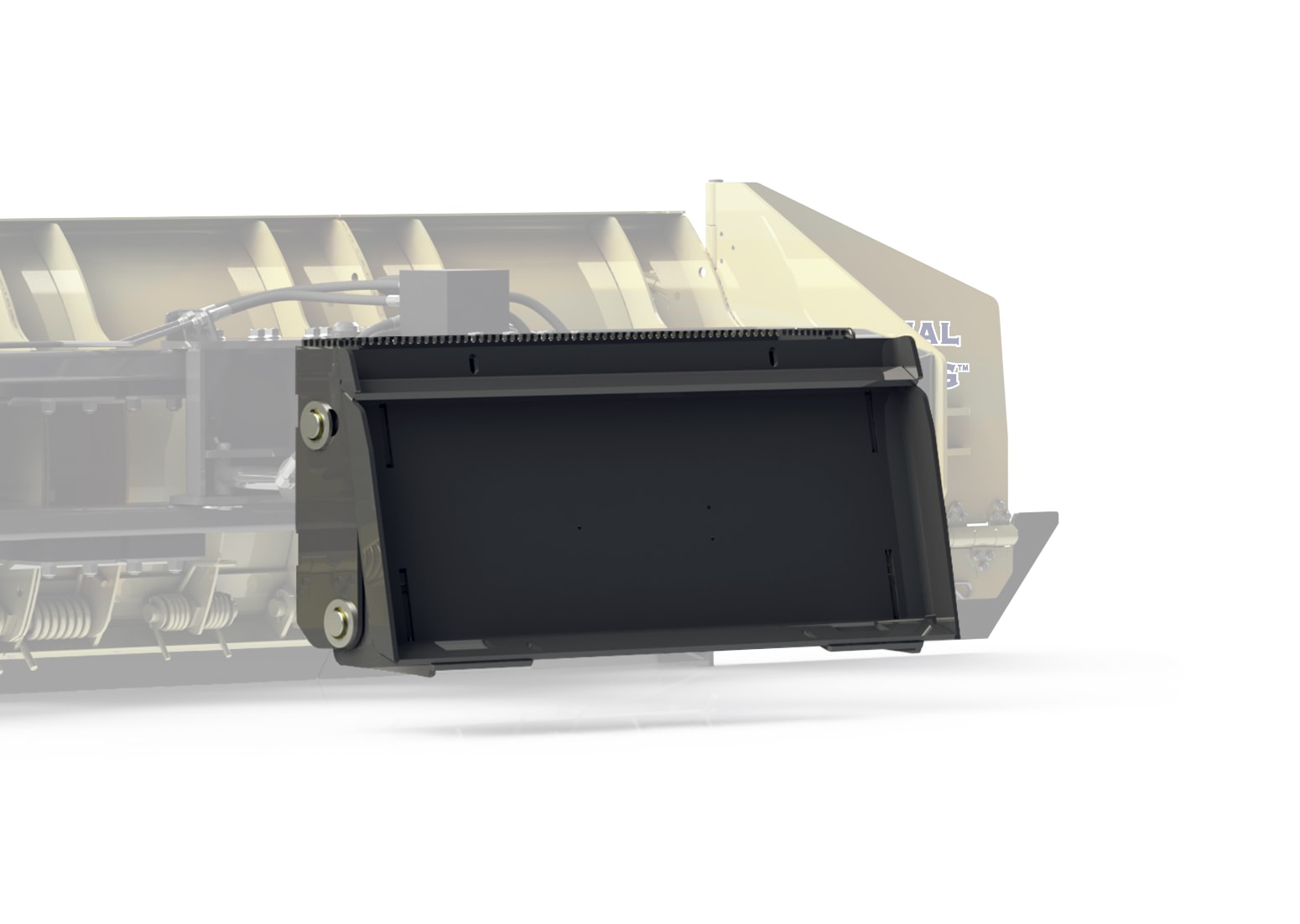

- Pin-in-place, pivoting Slip-Hitch mounting system
- Hydraulically adjustable between plow-mode and pusher-mode
Current Models
RRENT MODELS
|
MODEL |
WIDTH (PUSHER-MODE) |
WIDTH (PLOW-MODE) |
WEIGHT |
|---|---|---|---|
|
SW LD-8 |
8’7″ |
11’10” |
1,900 lbs |
|
SW LD-10.5 |
11’1″ |
14’4″ |
2,150 lbs |
